Customized Suction Cup Laser Loader

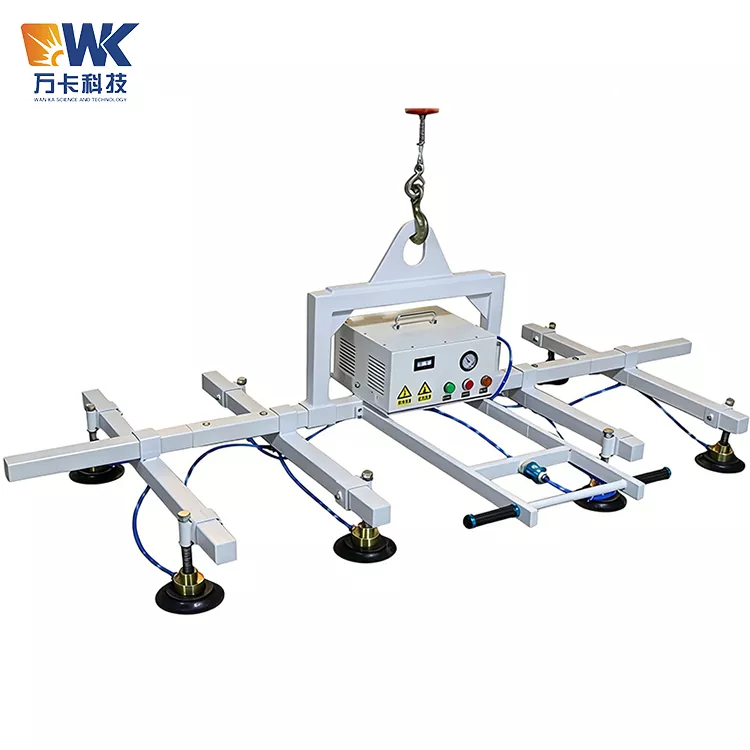

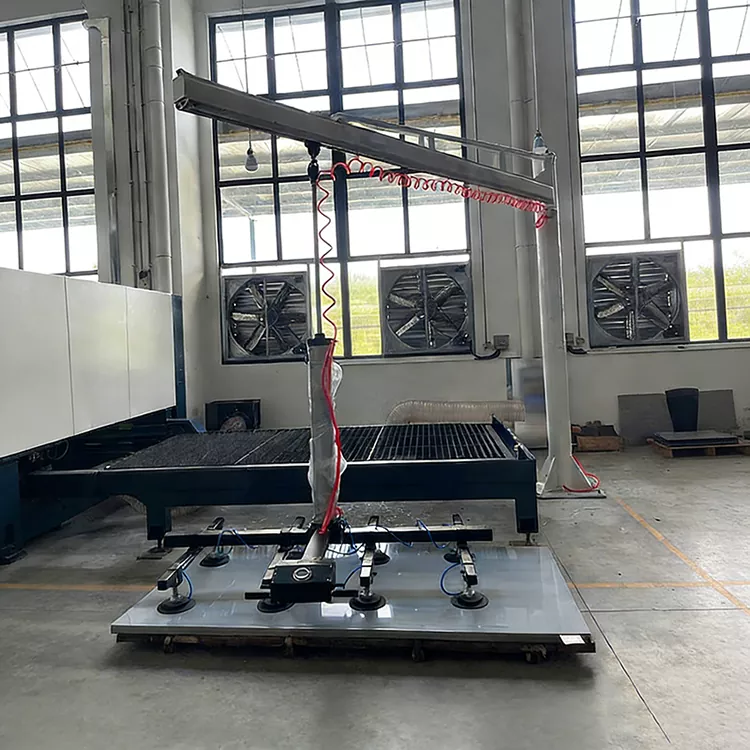

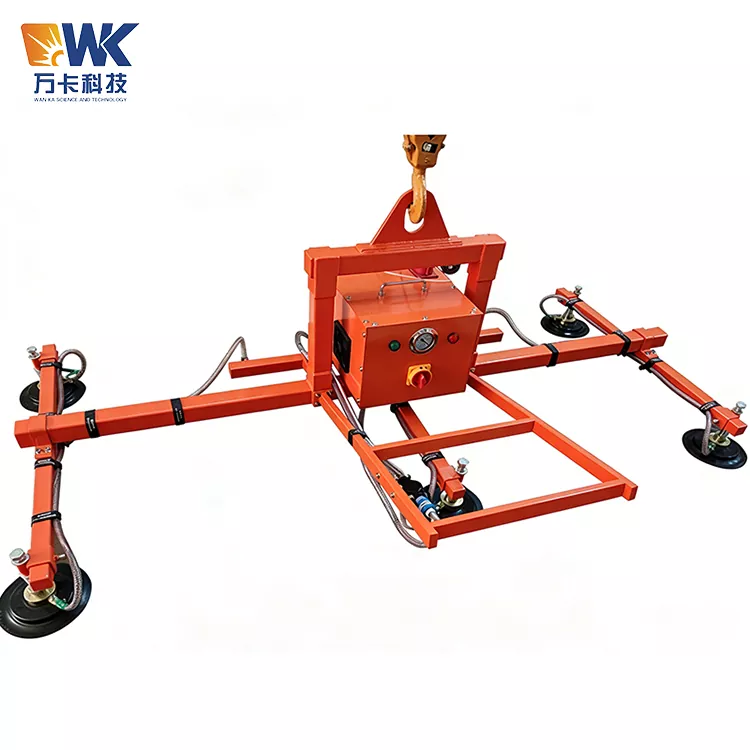

Covering a flexible load range of 250kg to 2000kg, the Customized Suction Cup Laser Loader by Wanka supplier adopts a customizable integrated vacuum energy storage main beam structure and modular adjustable suction cup combination. It adapts to complex working conditions such as oily, rusty and slightly warped plate surfaces, as well as special workshop installation environments and crane parameter restrictions. Relying on negative pressure vacuum adsorption technology, it realizes single-person intelligent handling and zero-damage feeding for all kinds of special plates, widely compatible with laser cutting, plasma cutting, bending and stamping production lines in shipbuilding, wind power, heavy steel structure and pressure vessel industries.

Exclusive Customization Services

Wanka provides one-stop full-cycle customized services integrating on-site survey, scheme design, structural optimization, production and manufacturing, installation and commissioning, and technical training. All parameters are designed independently according to customer actual working conditions, without rigid modification of standard models, ensuring 100% matching with on-site production needs.

1.Structural Size Customization

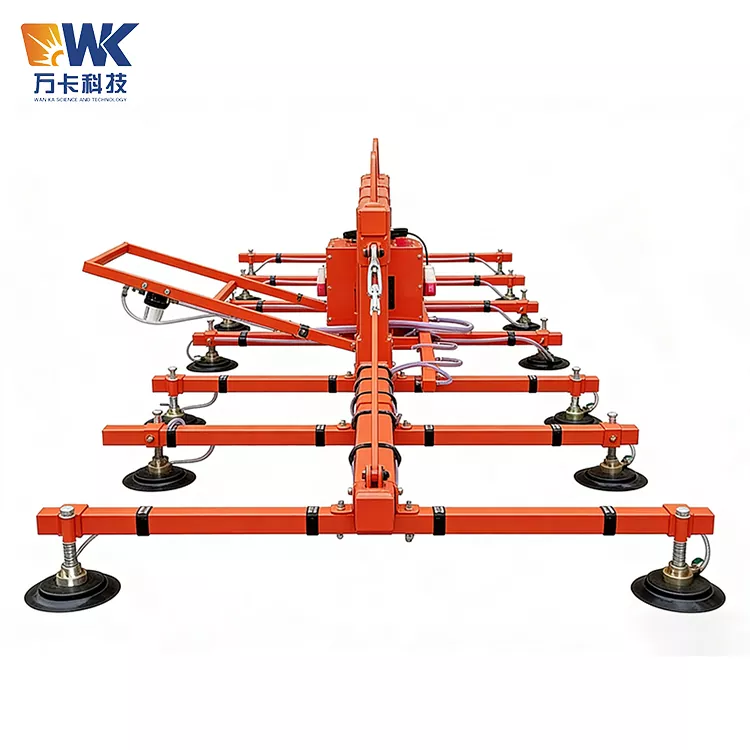

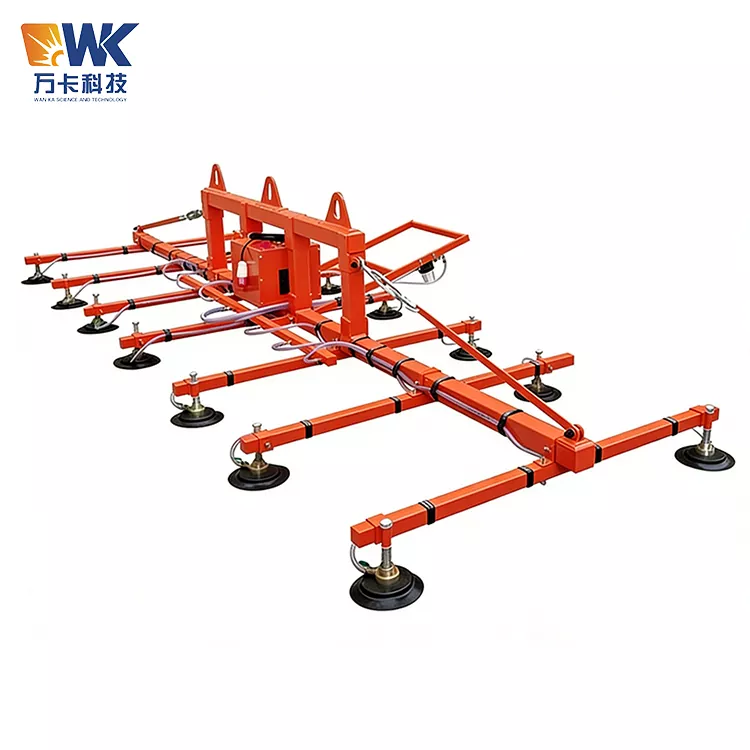

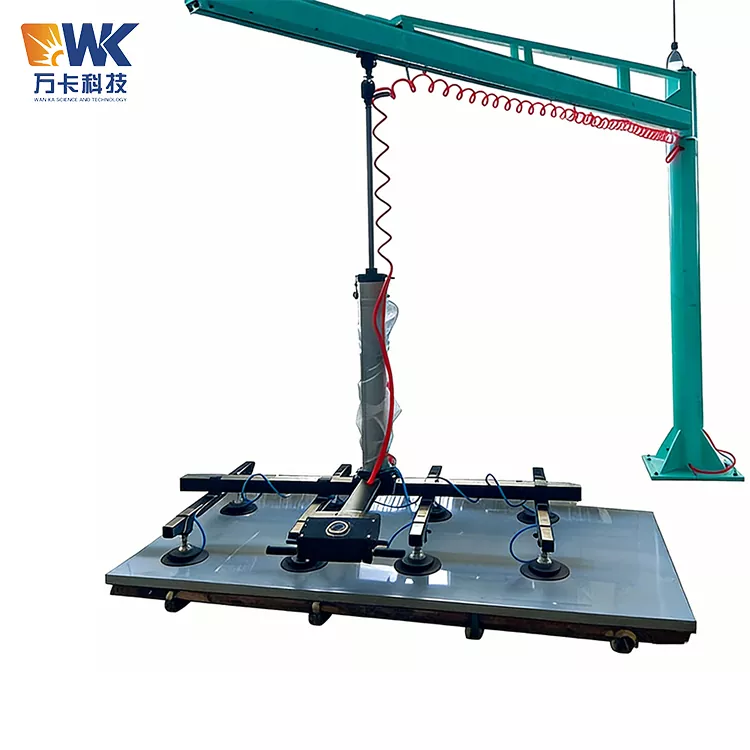

Support custom main beam length from 2m to 8m+ and flexible adjustment of crossbeam quantity and spacing. For ultra-long plates, adopt truss reinforced structure to avoid beam deflection; for ultra-wide plates, expand transverse suction layout to ensure uniform stress on the whole plate. Custom special-shaped bracket structures for circular flanges, trapezoidal plates and perforated workpieces to realize targeted adsorption and avoid invalid suction.

2.Load and Suction System Customization

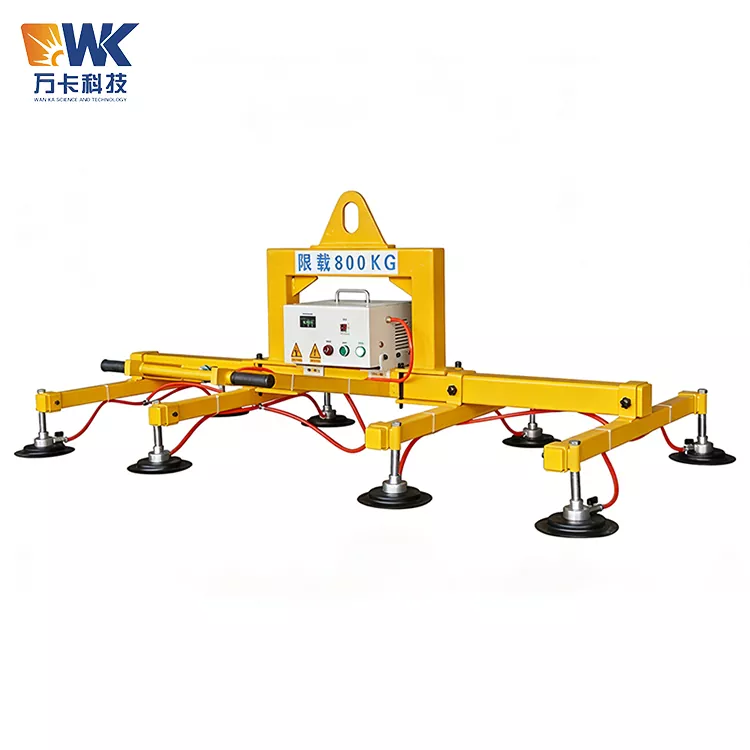

According to the actual weight, thickness and surface roughness of the workpiece, professionally calculate and match the suction cup quantity, diameter and material. Equipped with oil-resistant, wear-resistant or high-adhesion sponge suction cups for oily, rusty and rough plates. The safety redundancy coefficient is strictly controlled above 2.0, and the maximum customized load can reach 2000kg, meeting the handling needs of ultra-thick heavy plates.

3.Control and Function Customization

Retain core energy-saving and safety functions, and support personalized function expansion. The intelligent intermittent start-stop system automatically adjusts the pump body operating frequency according to vacuum pressure, reducing idle power consumption efficiently. Custom vacuum real-time display, pressure early warning, remote control operation and other functions; adaptive upgrade of electrical components for high humidity, dust-prone and other harsh workshop environments.

4.On-Site Adaptation Customization

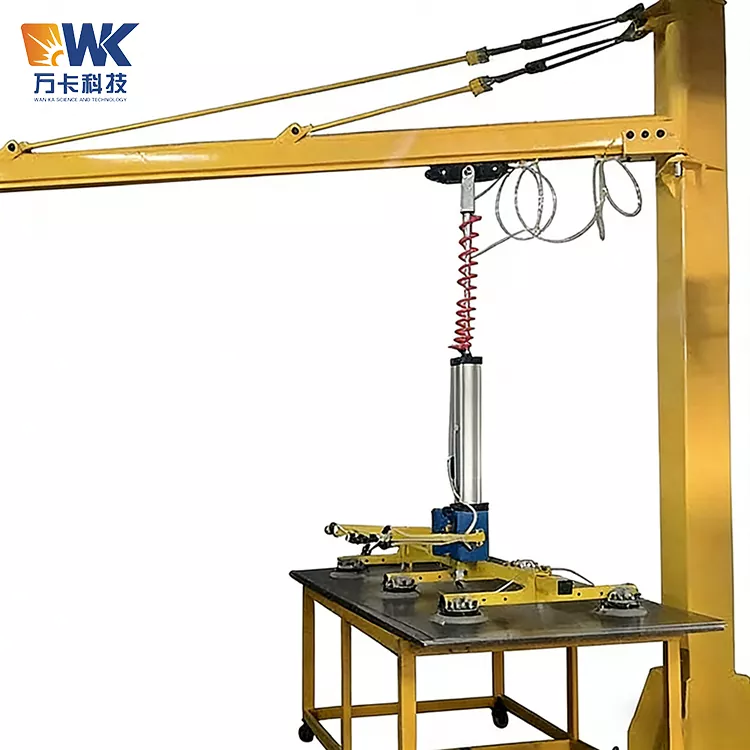

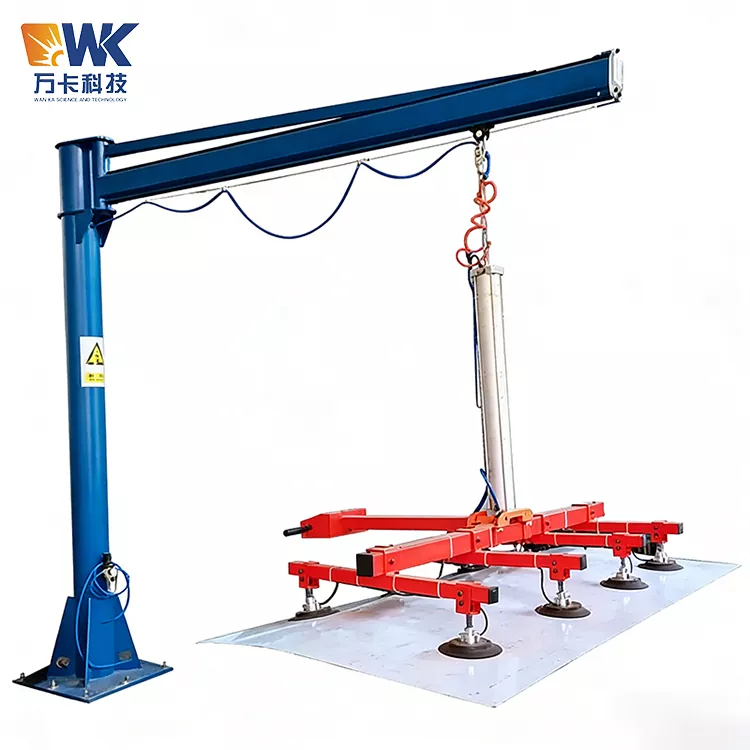

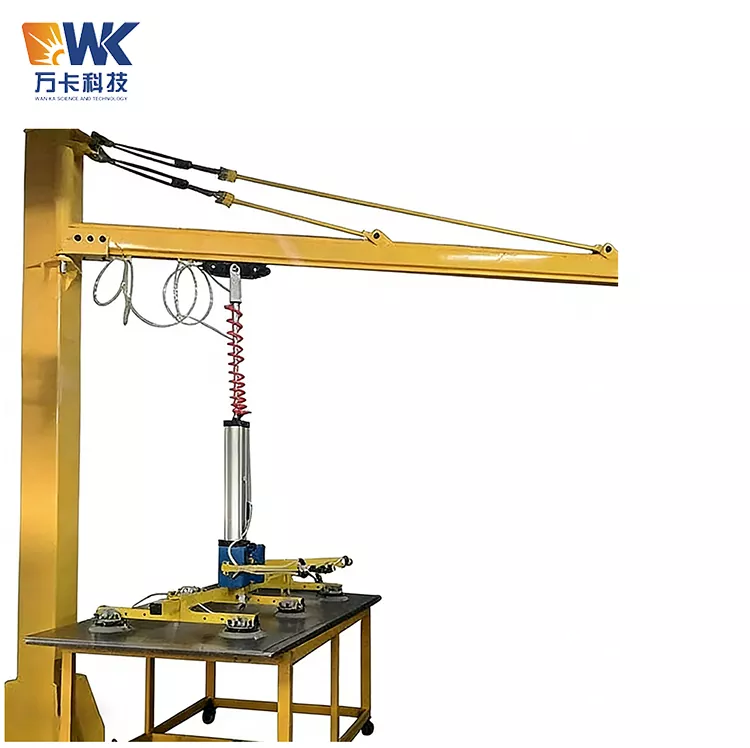

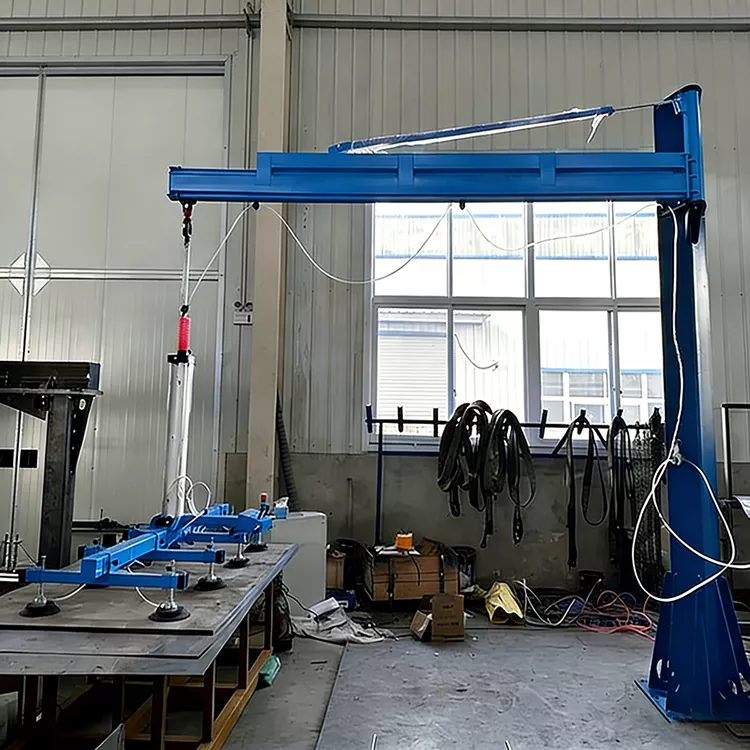

Optimize the hanger interface, suspension height and installation mode according to the customer’s existing traveling crane, electric hoist parameters and workshop space layout. Solve the installation adaptation problems caused by limited crane stroke, special hook size and inconsistent power supply specifications, realizing seamless docking with on-site existing equipment.

Operation & Maintenance Precautions

To ensure long-term stable operation, safety and high efficiency of customized vacuum suction lifters, Wanka summarizes standardized operation and maintenance specifications based on massive field service experience, suitable for all non-standard customized models:

1 Pre-Operation Inspection Rules

Before each shift, check the fitting tightness of customized suction cups and special brackets to confirm no deformation, aging or air leakage. Inspect the air tightness of non-standard customized air pipes and joints, and clean the filter element and suction cup surface dust, oil stains and impurities. Test the acousto-optic alarm and vacuum pressure sensing system to ensure sensitive response of safety devices.

2 Standard Operation Specifications

Strictly operate within the customized rated load range, never overload handling. For special-shaped and uneven plates, confirm that all valid suction cups are fully fitted and vacuum pressure reaches the standard value before lifting. Keep stable speed during translation and lifting, avoid sudden start and stop, and prevent workpiece shaking and vacuum leakage.

3 Safety Protection Guidelines

The Customized Suction Cup Laser Loader is equipped with a built-in vacuum accumulator, which can maintain effective adsorption for more than 20 minutes in case of power failure, exceeding the CE standard. However, operators are prohibited from standing under the workpiece during operation to avoid potential safety risks. Stop operation immediately once vacuum leakage, abnormal noise or alarm is found, and resume use after troubleshooting.

4 Daily Maintenance Rules

Regularly clean the filter element and suction cup surface to keep the adsorption surface clean and dry. Regularly check the fastening degree of customized non-standard bracket bolts and welding parts to prevent loose parts caused by long-term vibration. The imported oil-free vacuum pump requires no daily oil change maintenance, only regular dust cleaning to ensure heat dissipation. Store the equipment in a dry and ventilated environment to avoid long-term sunlight exposure and corrosive substance contact.

FAQ

Q1: What special plates can the customized vacuum lifter handle?

It adapts to ultra-long/ultra-wide/ultra-thick plates, circular flanges, trapezoidal parts, perforated workpieces, and plates with oily, rusty or slightly warped surfaces, covering all non-standard flat dense materials.

Q2: What is the maximum customized load and length?

The maximum customized load reaches 2000kg, and the main beam can be customized up to 8m or longer, with reinforced structure to ensure stable lifting without deformation.

Q3: Will customized suction cups leave marks on the plate surface?

Adopt flexible rubber/sponge suction cups for soft contact, with balanced spring buffering structure, realizing zero scratch and zero indentation handling for all high-precision plates.

Q4: Does the customized equipment need an air source?

No external air source is required. Equipped with imported oil-free vacuum pump, only standard 380V industrial power supply is needed for startup and operation.

Q5: How energy-efficient is the customized model?

Equipped with intelligent intermittent start-stop technology, it reduces 60%-80% of idle power consumption and effectively doubles the service life of the vacuum pump.

Q6: Is the customized equipment safe in case of sudden power failure?

The integrated vacuum accumulator maintains adsorption for over 20 minutes after power failure, providing sufficient safe operation time, far exceeding EU CE safety standards.

Q7: What is the warranty and after-sales service?

12-month full machine warranty for core components. Provide remote debugging, operation training and lifelong low-cost replacement of customized vulnerable parts.
