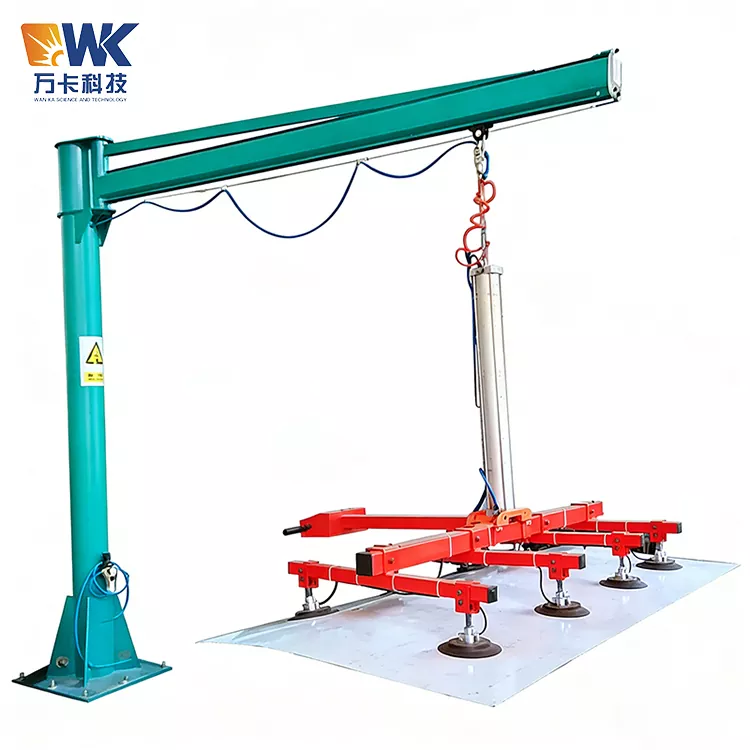

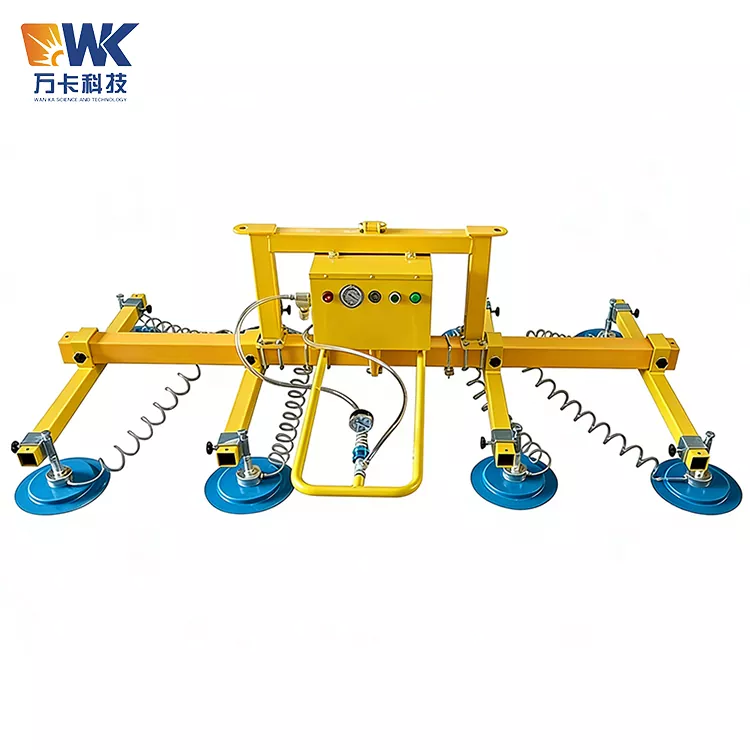

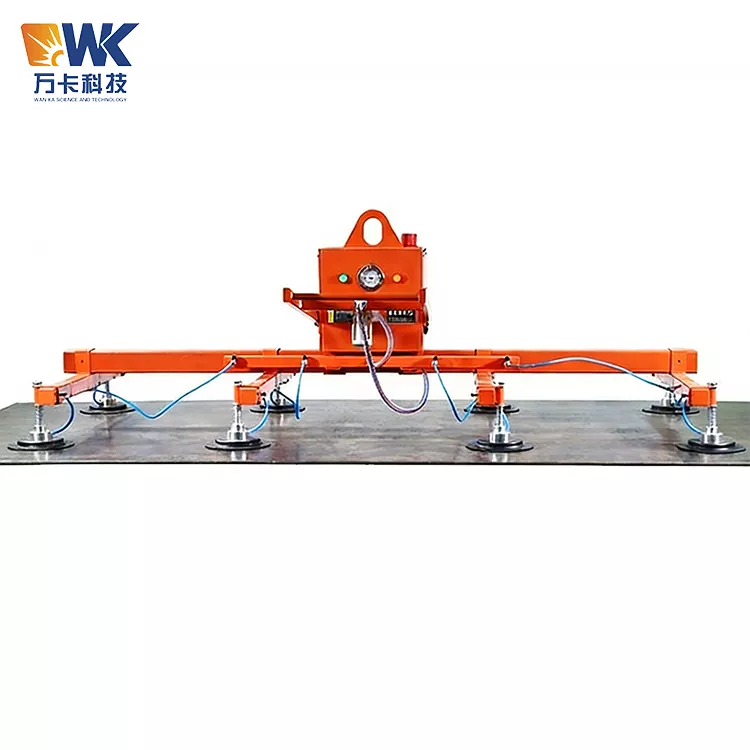

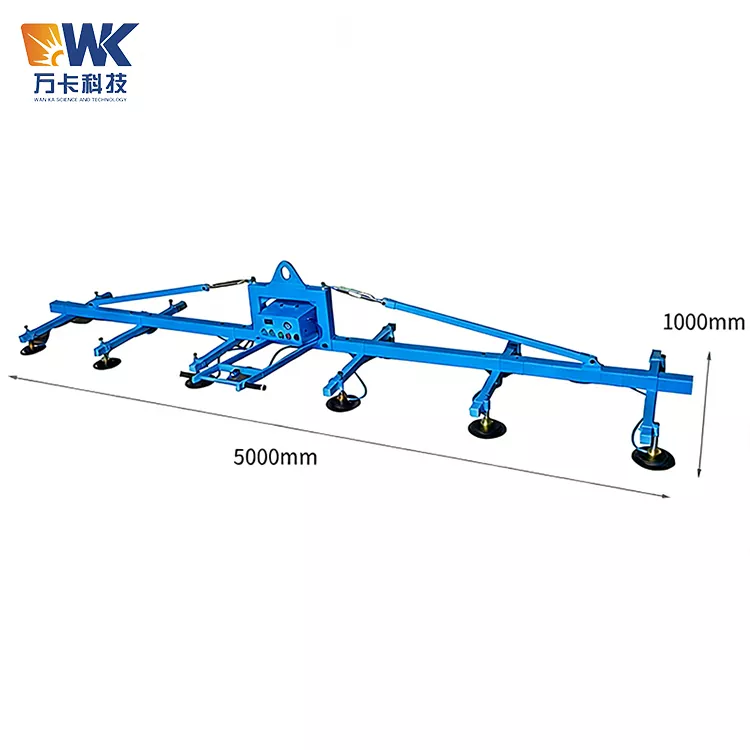

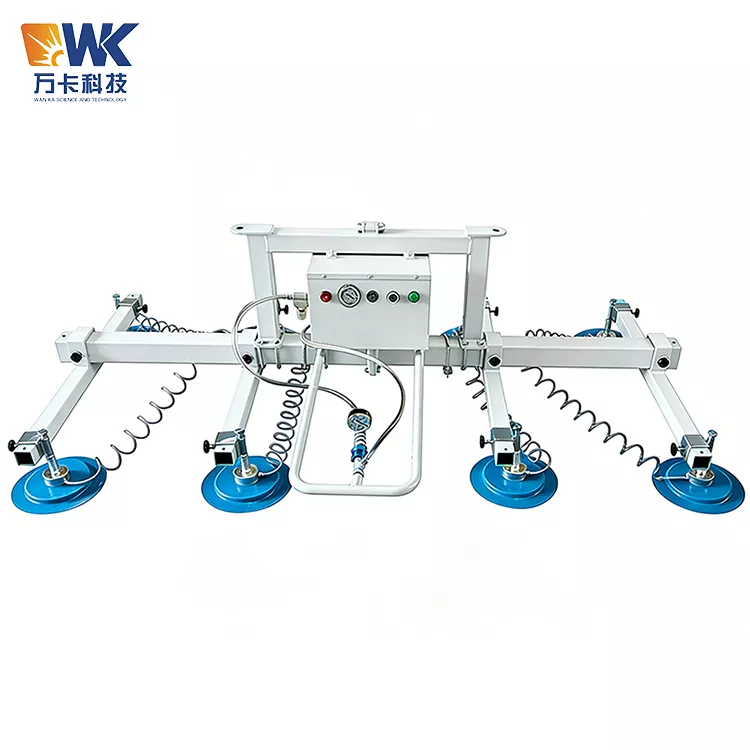

1530 Suction Cup Laser Loader

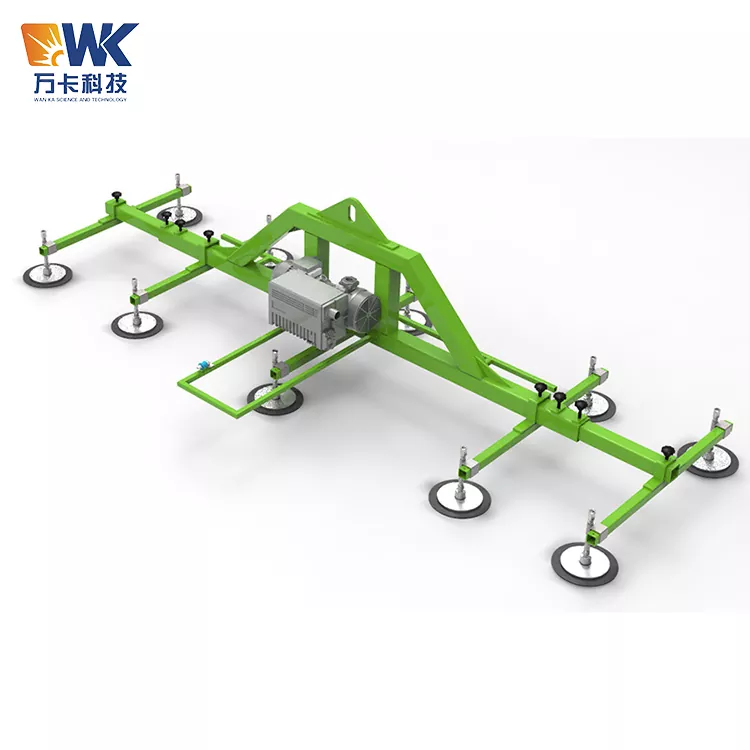

The 1530 Suction Cup Laser Loader supplied by Wanka manufacturer features a split negative pressure energy storage main beam and a modular suction cup arrangement structure. It is suitable for the regular processing and loading operations of dense and flat plates such as carbon steel, stainless steel, and aluminum plates. It replaces the multi-person collaborative manual lifting mode and takes into account safety during operation, protection of the plate surface, and stable output of the production line.

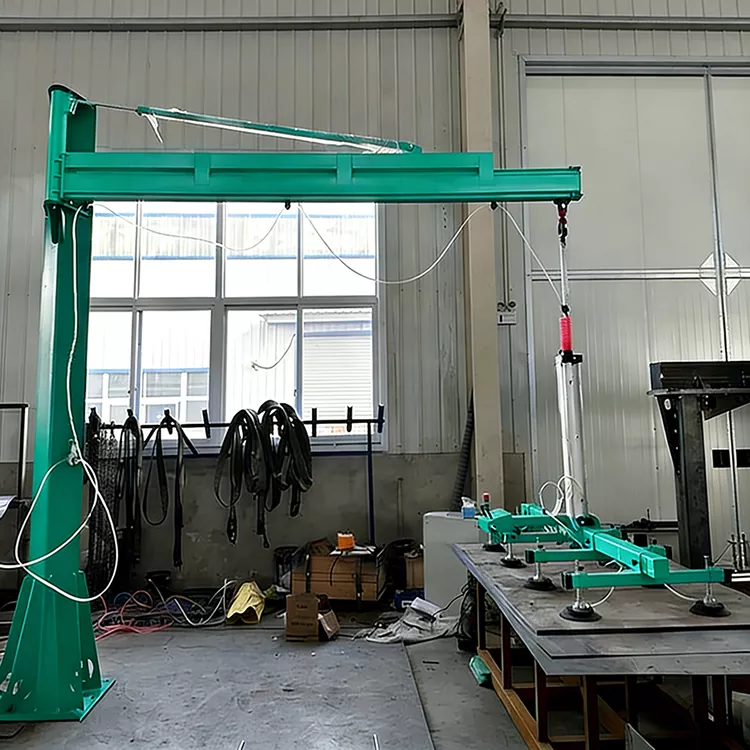

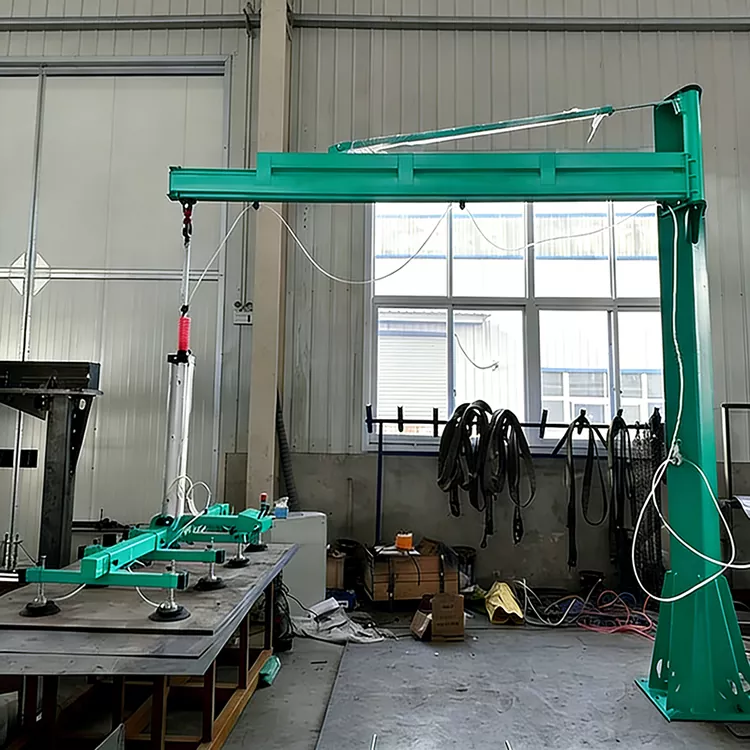

The overall structure of the machine is lightweight, and it can be directly paired with the existing cranes and small cantilever hoists in the workshop. No large-scale factory infrastructure renovation is required. It is a standard auxiliary equipment for small and medium-sized sheet metal processing factories to achieve low-cost automation upgrades.

Core product features

1. Independent pressure control adsorption system for each zone

2. Dual-loop negative pressure energy storage safety system

3. Temperature-controlled oil-free negative pressure power unit

4. Human-machine interlock operation logic

5. Full-body anti-corrosion and durable construction

6. Quick disassembly and modular layout

Factory standard performance testing

All 1530 suction cup laser loading machines produced by Wanka have undergone a complete closed-loop test in the factory's testing laboratory. The test reports are retained for archiving, and all test items are based on actual measurement data to provide results:

1. Negative pressure endurance test: Under rated load and full-load suspension conditions, continuously monitor the negative pressure value for 240 minutes with a continuous fluctuation curve, record the natural pressure release rate, and verify the sealing performance of the energy storage chamber.

2. Sudden power failure and drop protection test: Forcefully cut off the main power supply under full-load conditions, measure the duration of the suspended sheet material, and verify the actual protective capability of the dual accumulator structure.

3. Repetitive fatigue test: Set a standard loading process for 1200 consecutive automatic cycles, detect whether there are deformations or loosening phenomena at the welding points, guide rails connection components, and suction cup supports.

4. Board surface sealingity test: Use two test samples, namely slightly warped steel plates and aluminum plates with trace oil stains, to test the vacuum establishment efficiency and adsorption stability under different working conditions.

5. Whole machine temperature rise load test: The 1530 Suction Cup Laser Loader operates continuously at full load for 8 hours, collects the temperature values of the vacuum pump, pipe joints, and main beam surface, and determines the thermal stability during long-term operation.

6. Safety component linkage test: Simulate various abnormal scenarios such as insufficient negative pressure, pipeline leakage, and emergency stop of the handle, and verify the sensitivity of alarm, self-locking, and pressure relief safety components.

Wanka Original Factory Differential Competitive Advantage

1. Integrated processing quality control system of the original factory

2. Graded maintenance and support solution packages

3. On-site delivery technical services

4. Transparent division of quality guarantee rights and responsibilities

5. Adaptation optimization and iteration capability for working conditions

FAQ

1. What weight of sheet material can the 1530 Suction Cup Laser Loader handle?

The standard model has a rated load capacity of 500kg and a structural design with a safety redundancy coefficient of ≥2. For heavy-load requirements, the reinforced model configuration can be directly selected.

2. Can sheet materials with a small amount of cutting fluid be directly adsorbed?

The surface layer with thin cutting fluid can operate normally. It is recommended to pair with an oil-resistant suction cup. After the operation, simply wipe the surface of the suction cup to extend its service life.

3. Does the main unit's vacuum pump need to be lubricated with oil during normal operation?

The standard model comes with an oil-free vacuum pump. During operation, there is no need to add engine oil. Just replace the front filter element at regular intervals.

4. Can this equipment be used at a workstation without a crane?

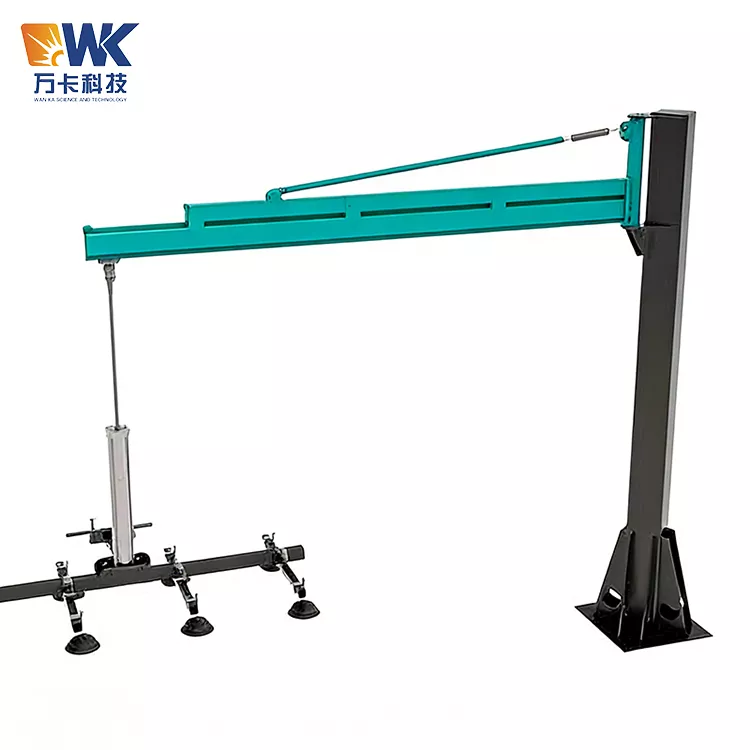

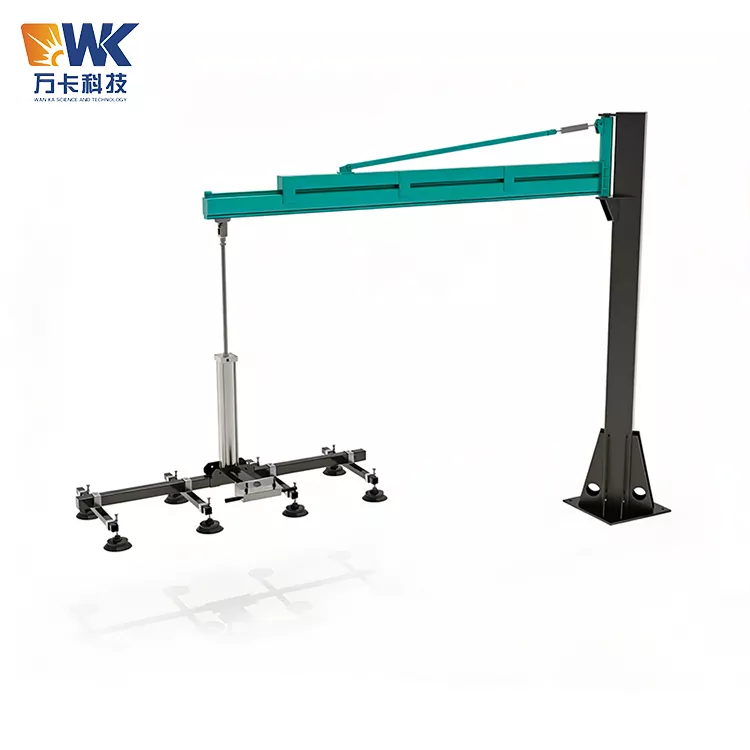

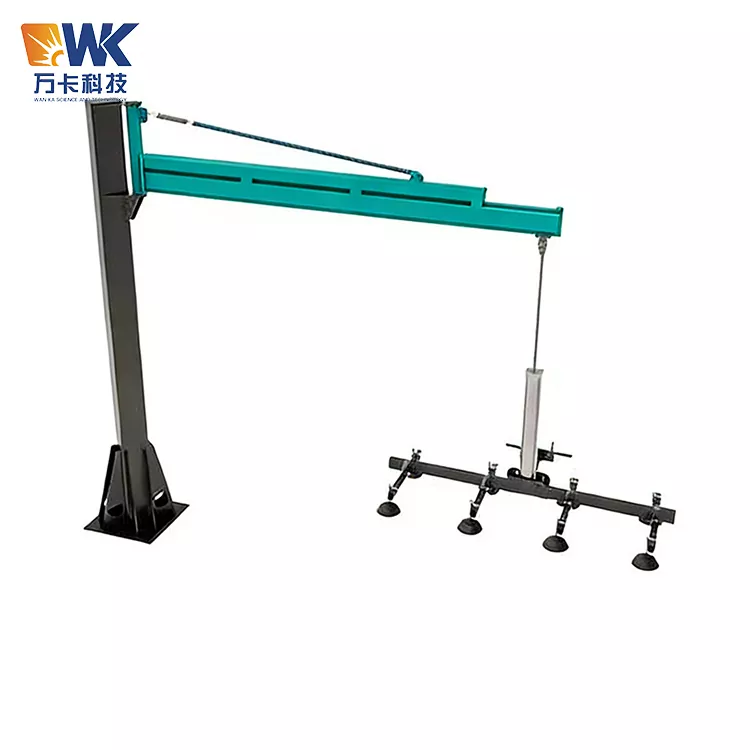

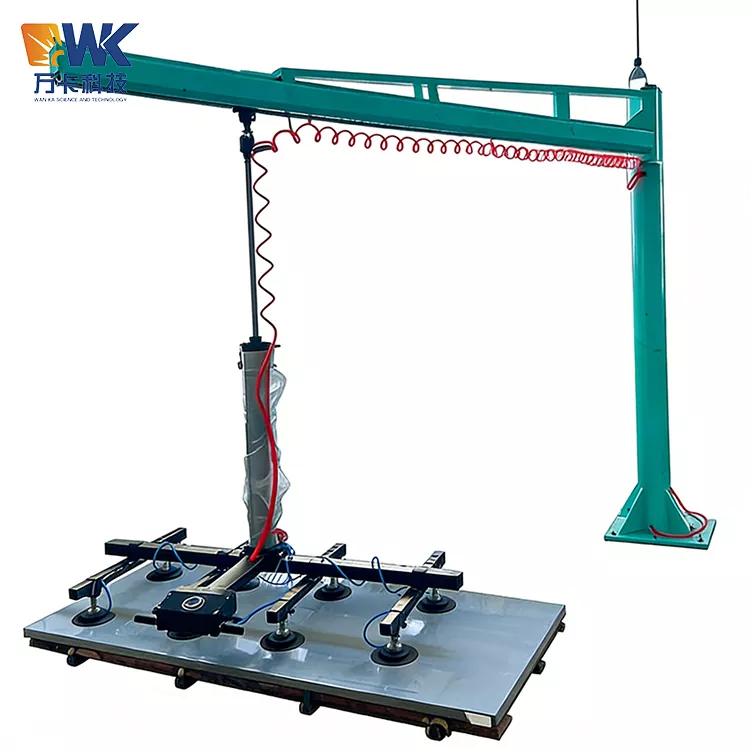

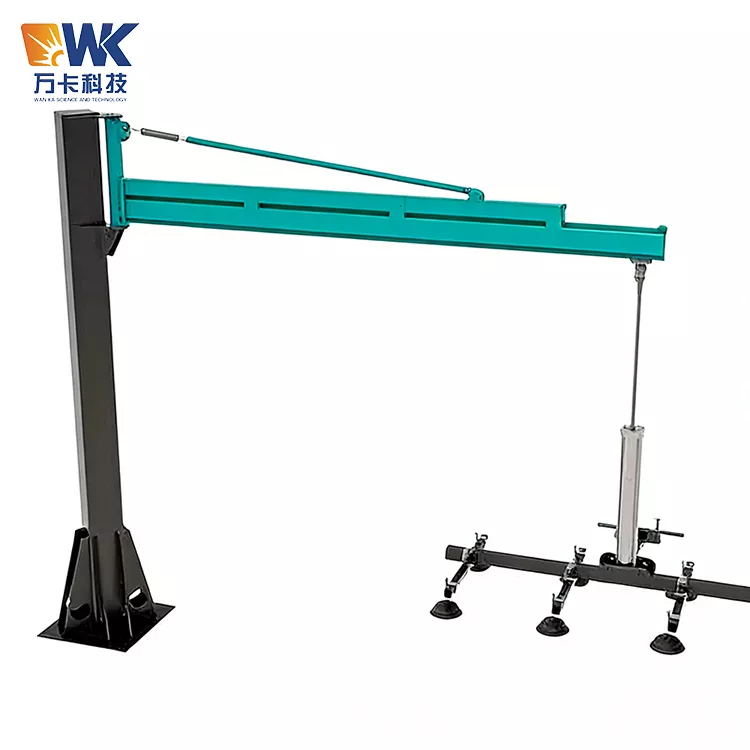

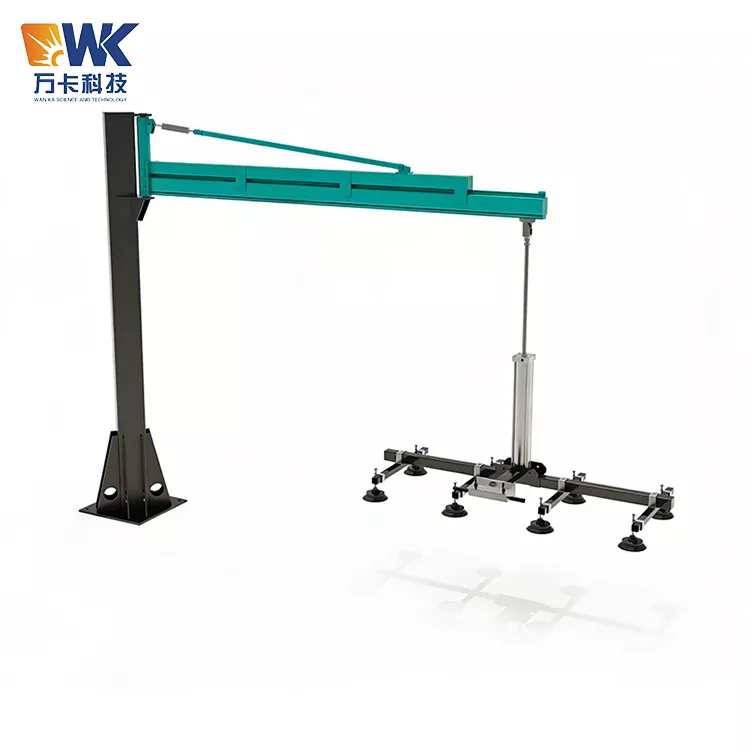

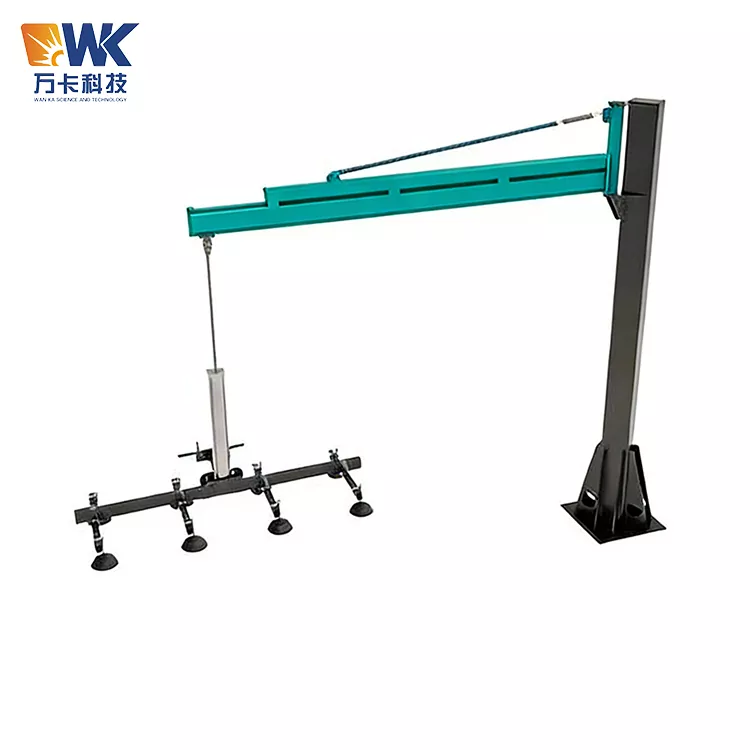

The equipment itself does not have a lifting structure. It must be paired with a cantilever crane or crane for use. Wanka can simultaneously recommend small lifting solutions that are compatible with it.

5. What are the common causes of frequent vacuum alarms?

Mostly due to aging and damage of the suction cup, excessive impurities on the plate surface, or air leakage at the pipe joint. You can quickly identify and resolve them according to the inspection manual.

6. Can the equipment be customized to change the spacing of the suction cup arrangement?

The standard model supports on-site manual adjustment of the crossbeam spacing. For special fixed arrangement requirements, inform the manufacturer during the order placement and they can make pre-installation adjustments during factory production.

7. What should be done if the equipment breaks down during the warranty period?

You can directly contact the dedicated sales contact person or the official after-sales email. The fault solution reply will be completed within 2 hours during working hours.
