Energy-Efficient Permanent Magnet Laser Loader

In today’s high-speed industrial landscape, material handling challenges can directly determine the throughput of a laser processing line. A Permanent Magnet Laser Loader eliminates the inefficiencies of conventional vacuum or mechanical grippers by leveraging high-grade rare-earth magnets to securely lift, position and release ferrous sheets and parts without compressed air or constant power draw. Wanka has engineered a complete range of these loaders that integrate seamlessly with fiber laser cutters, punch-laser combos and automated storage towers, delivering faster cycle times and a cleaner shop floor.

The working principle behind a Permanent Magnet Laser Loader centers on an array of neodymium magnets arranged in a modular switching mechanism. When the loader descends onto a stack of steel plates, the magnetic circuit is mechanically closed, allowing flux to penetrate the top sheet. A micro-switch or inductive sensor confirms full contact, and the gantry or robot arm lifts the sheet with absolute stability. To release, a pneumatic or electric cylinder shifts the internal magnet array, cancelling the external field. Because the magnets only require energy during the switching pulse, the system remains locked in either state without consuming power, making it intrinsically safe even during power outages.

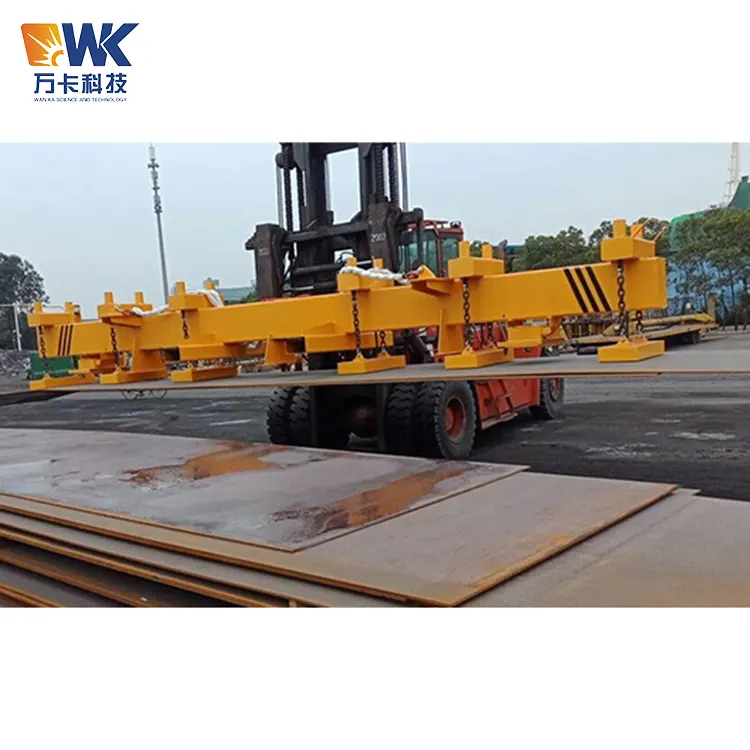

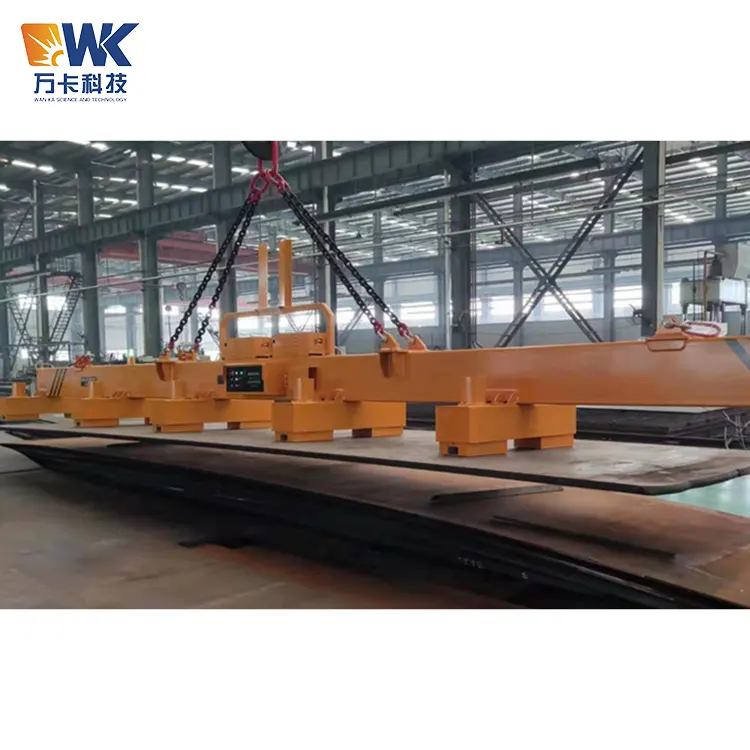

Our Permanent Magnet Laser Loader series includes products such as 1530 Permanent Magnet Laser Loader and 1325 Permanent Magnet Laser Loader, etc.

Why Fabrication Shops Choose the Wanka Permanent Magnet Laser Loader

• Zero continuous energy consumption during transport. The Permanent Magnet Laser Loader holds the load without any power, reducing robot axis current draw and lowering the overall carbon footprint of the cell.
• No vacuum pumps, filters or cups. Operations managers appreciate eliminating the routine replacement of suction cups and the noise of vacuum generators. The magnetic solution is silent and virtually maintenance-free aside from an annual inspection.
• Consistent grip on oily, rough or scaly surfaces. Hot-rolled plate with mill scale, pickled and oiled sheets, or even slightly uneven stamping blanks are all lifted with the same reliability, unlike vacuum systems that can leak around surface irregularities.
• Rapid cycle speeds. With a switching time as low as 300 milliseconds, the Permanent Magnet Laser Loader synchronizes perfectly with 5G-acceleration robot arms, achieving part-to-part times below 12 seconds in tower-fed laser setups.
• Integrated safety features. Each Wanka unit includes redundant proximity sensors, a mechanical lock that prevents magnet disengagement unless the load is fully supported, and an emergency manual override lever accessible from outside the cell guarding.
• Versatile payload range. The same control algorithm adapts to a 2 kg bracket or a 5,000 kg shipbuilding plate. Wanka provides a smart control box that automatically selects the optimal gripping force based on a pre-programmed material library.
• Low profile design. The slim height of the Permanent Magnet Laser Loader allows it to reach deep into loading cassettes and between densely packed skeleton storage racks, maximizing floor utilization.
