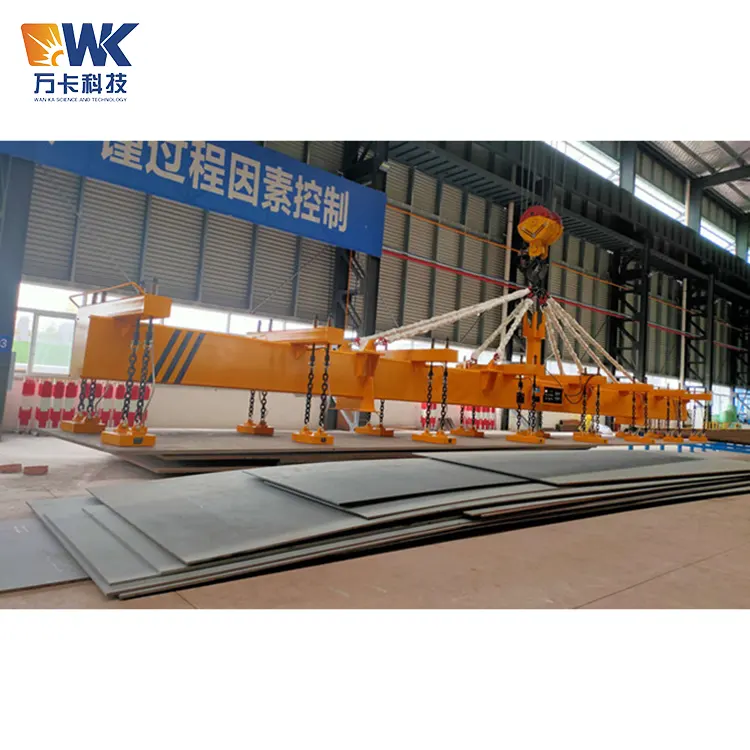

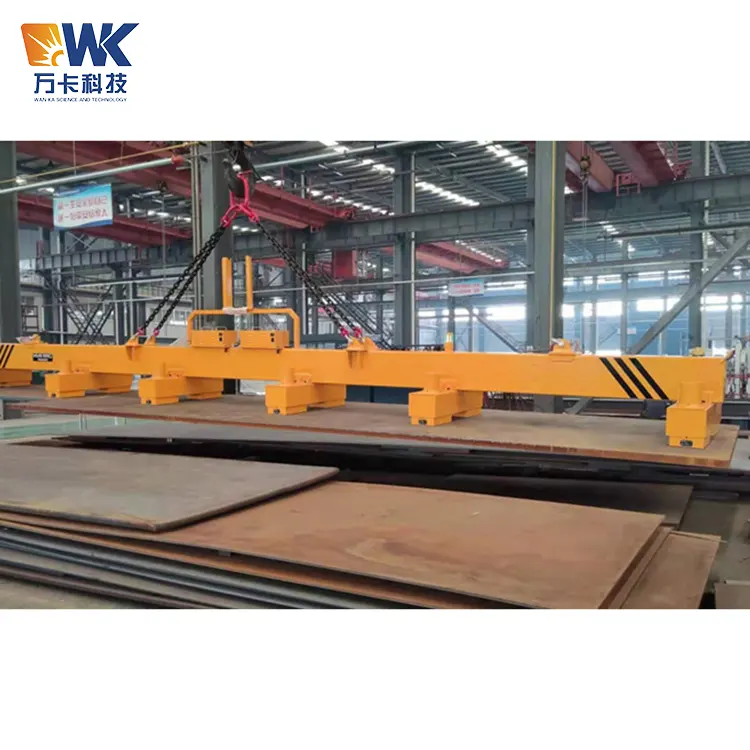

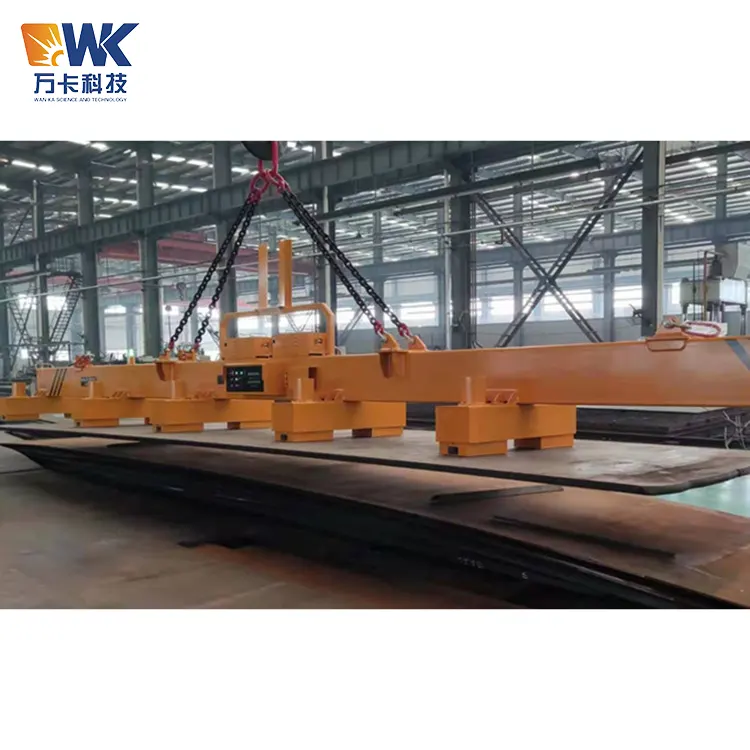

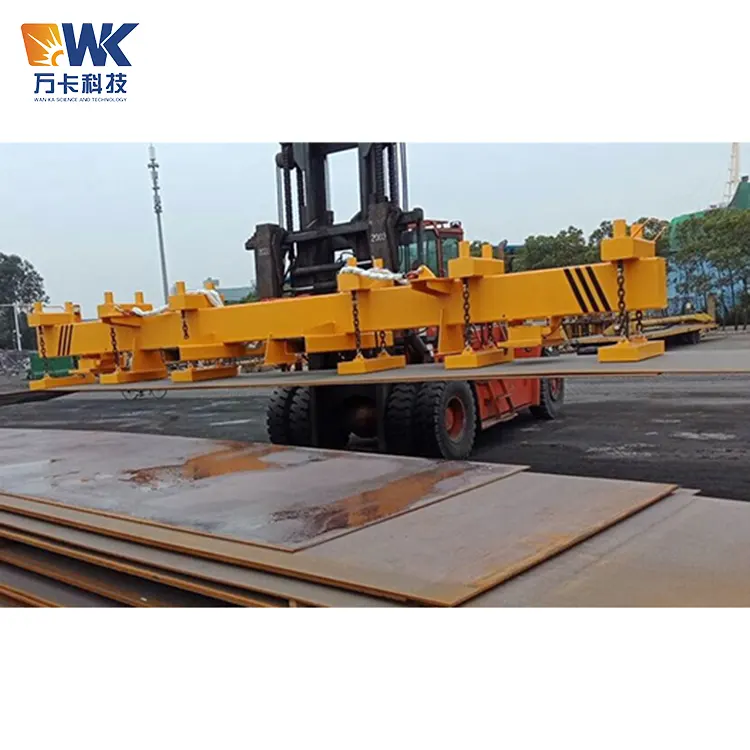

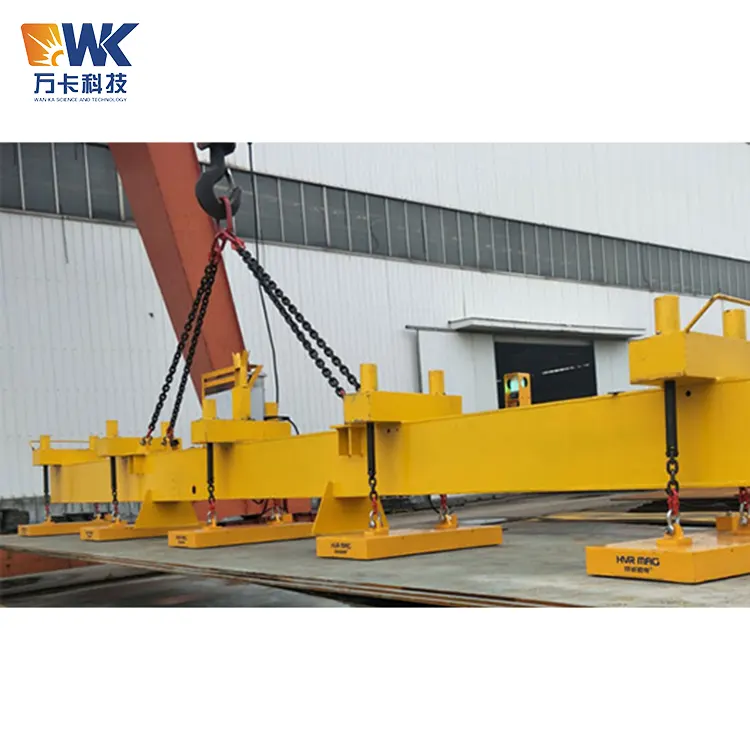

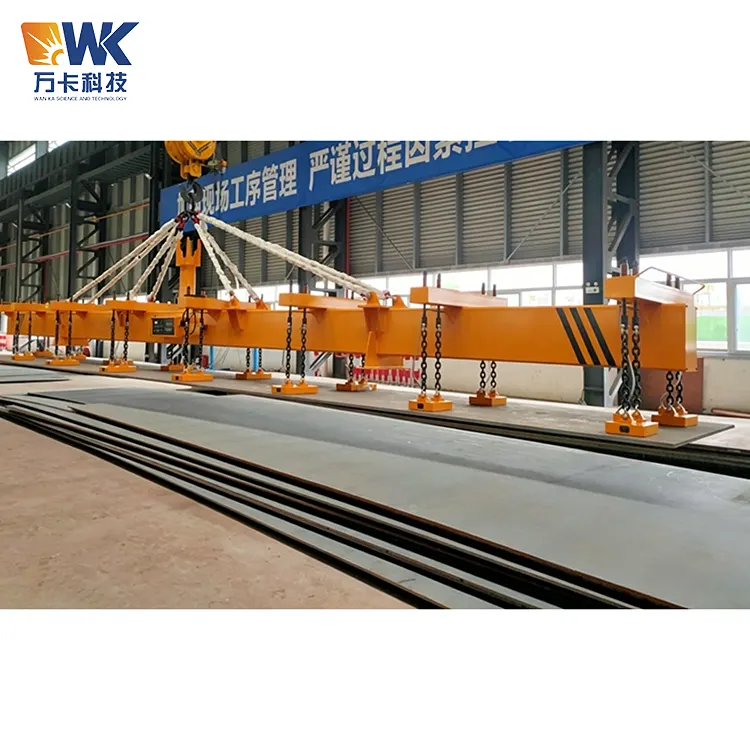

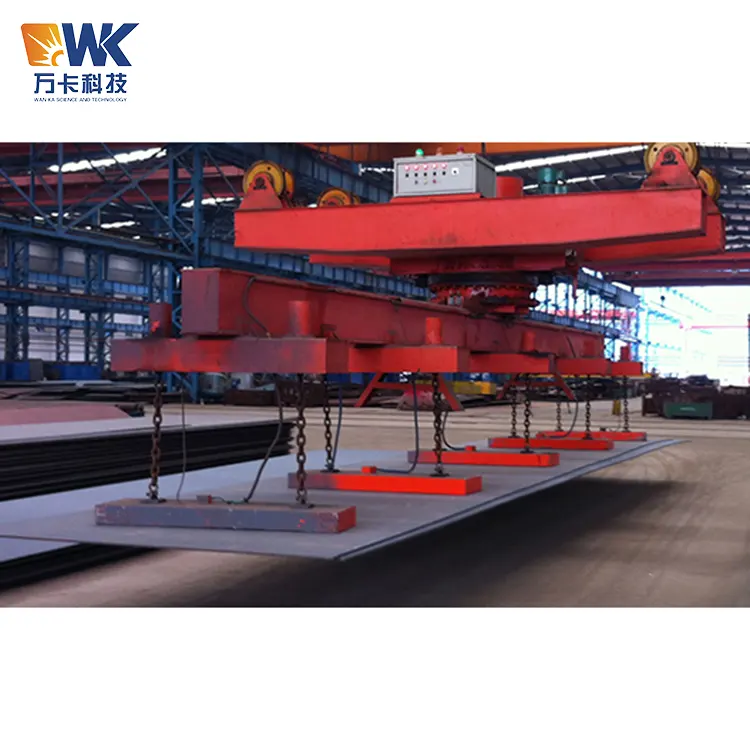

1530 Permanent Magnet Laser Loader

This 1530 Permanent Magnet Laser Loader is an efficient, safe and energy-saving loading equipment developed by Jinan Wanka Technology Factory for the automated handling of metal sheets. The model "1530" indicates that the maximum sheet size this equipment can handle is 1500mm × 3000mm, which is one of the most common standard specifications in the metal processing industry.

Solution

In the traditional loading operation of sheet materials, enterprises have long faced three major problems: Firstly, there is an efficiency bottleneck. The traditional hoists require manual hooking and unhooking each time, resulting in long single-load operation time. Secondly, there are safety concerns. Electromagnets have a risk of falling when power is cut off. The lifting claws are prone to damaging the edges of the sheet materials and are also prone to shaking and slipping. Thirdly, the cost is high. Mechanical hoists wear out quickly and require frequent maintenance, leading to a high loss of sheet material edge and corner scraps due to knock and collision.

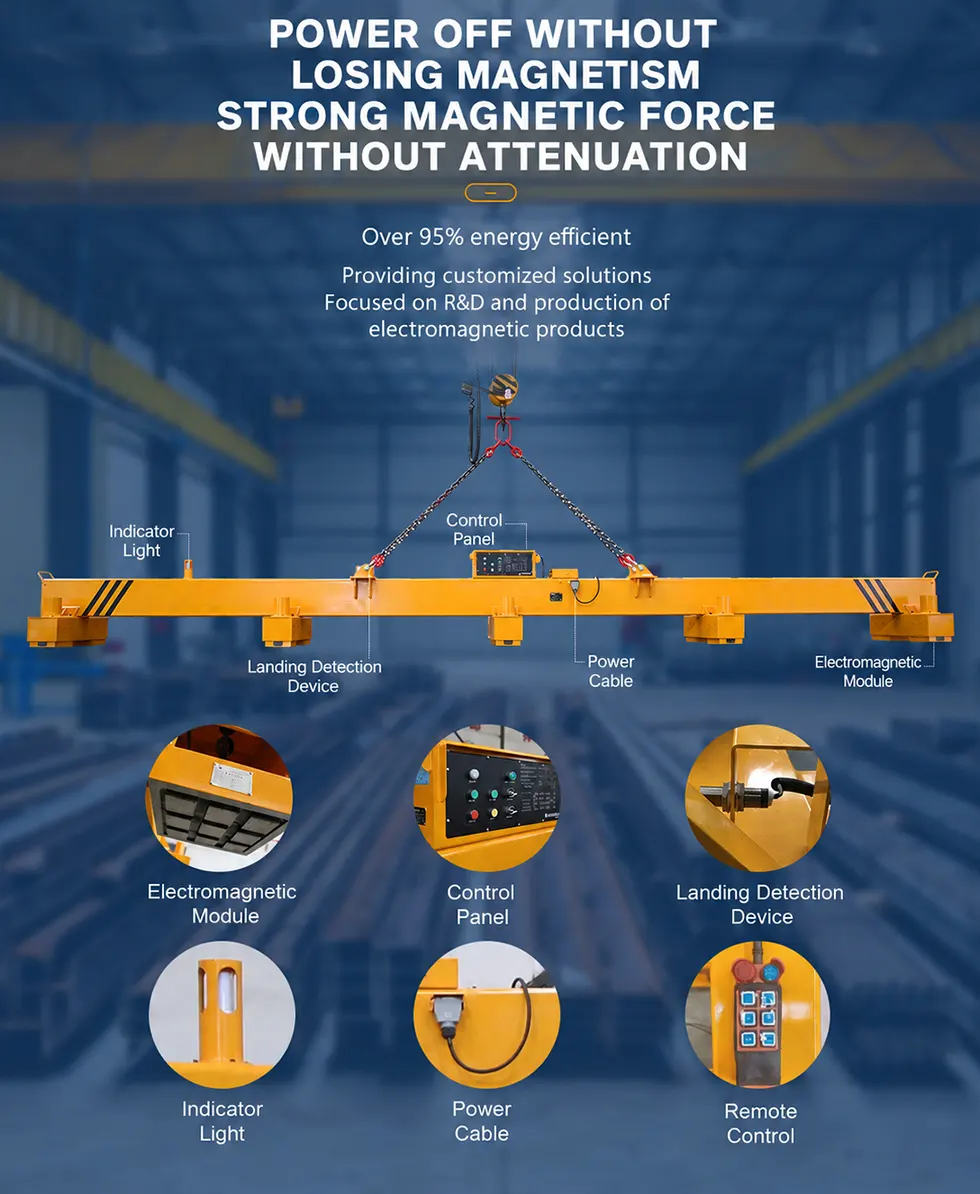

The emergence of the 1530 electric permanent magnet feeding machine has provided a systematic solution to these problems. The equipment consists of four major parts: a high-strength lifting beam, an intelligent magnetic module array, a wireless remote control system, and safety protection devices. It can simultaneously adsorb and transport multiple stacked steel plates. Combined with remote control operation, one worker can independently complete all the feeding actions from the material stack to the cutting machine workbench. The single lifting time has been shortened from the traditional 10 minutes to within 4 minutes, and the overall transfer efficiency has increased by more than 50%.

Significant Advantage

Another significant advantage of our 1530 Permanent Magnet Laser Loader is its "multi-purpose" feature. Through the magnetic module grouping control technology, different magnetic poles can be activated or deactivated according to the actual length and width of the sheet. With this 1530 type electric permanent magnet loader, it can be adapted to handle 1500×3000mm full plates, 1000×2000mm medium plates, and even smaller-sized sheets. There is no need to frequently change the lifting tools. Combined with the PLC control system and dry contact signal interface, the equipment can be connected with processing equipment such as laser cutting machines, plasma cutting machines, and CNC punch presses to achieve "whole plate loading and whole plate unloading" for fully automated material flow.

Core selling points

No loss of magnetism even in power failure, inherently safe

Zero energy consumption during handling

Can lift multiple sheets at once, efficiency doubles

Zero damage during handling, protecting the surface of the panels

Multi-purpose in one machine, intelligent group control

No adhesion, precise single-sheet handling

Fully automatic connection, unmanned operation

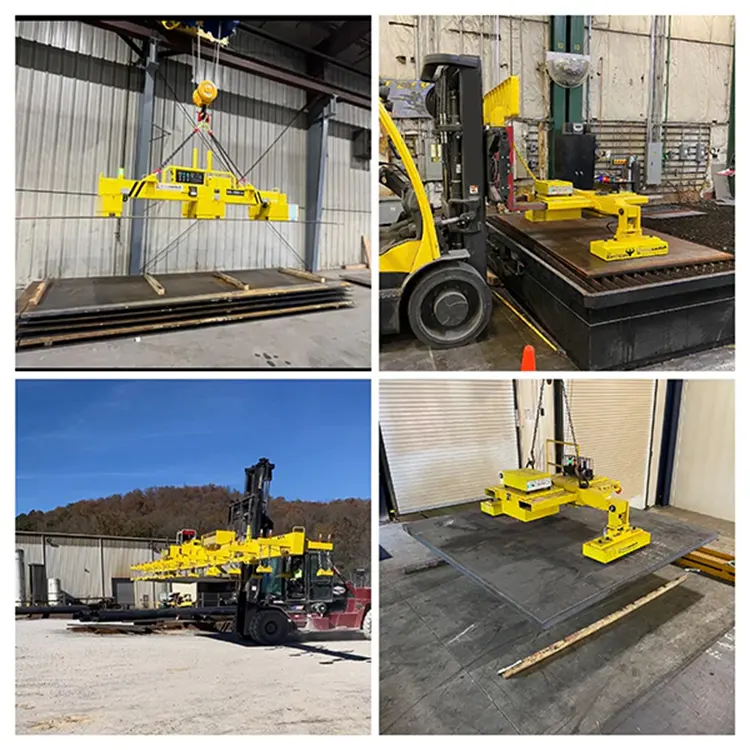

Application fields and cases

Automated loading and unloading for laser cutting

Steel structure and heavy industry manufacturing

Shipbuilding

Steel trading and warehousing center

Case 1: A steel structure enterprise in Qingdao, Shandong Province

This enterprise undertakes the processing of wind turbine tower frames and bridge steel structures. The workshop originally used electromagnets as lifting devices for loading steel plates. The continuous power supply of the electromagnets was energy-intensive, and there was once an accident where the power supply was cut off due to a damaged cable, and the steel plates nearly fell. After purchasing the Wankai 1530 Permanent Magnet Laser Loader in 2025, the transportation energy consumption decreased by 85%, and the safety and reliability were comprehensively upgraded. The transportation time for tower steel plates was reduced from 8 minutes per sheet to 3 minutes, and the loading efficiency on the cutting line increased by 60%. The enterprise's safety director commented: "The non-loss-of-magnet characteristic of the electric permanent magnet allows us to be completely at ease, and workers no longer worry about the 'falling plates' problem."

Case 2: A laser cutting processing center in Changzhou, Jiangsu Province

This center undertakes outsourcing sheet metal cutting business, handling hundreds of 1500×3000mm carbon steel plates and stainless steel plates every day. Previously, each cutting machine was equipped with 2 loading workers, who manually transported the plates, which not only had low efficiency but also often scratched the surface of the stainless steel. After introducing the Wanka electric permanent magnet loading machine in conjunction with the gantry mechanical hand, the entire process of loading and unloading the plates has been fully automated. The rate of plate scratching has decreased from 3% to 0.1%, and the number of workers has been reduced by half. The annual comprehensive benefits have increased by over 300,000 yuan. (On-site photos and operation videos can be provided. Please ask the sales department for them.)
