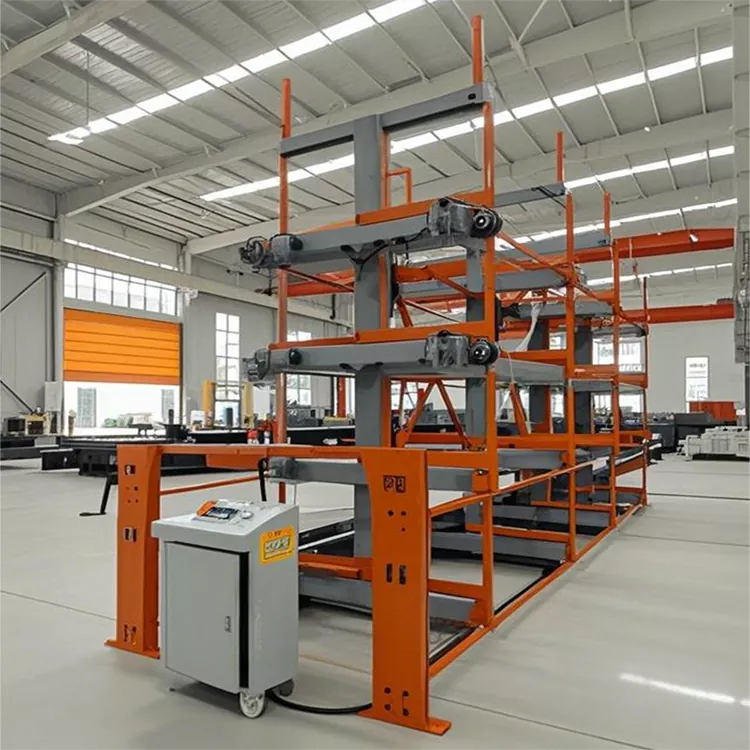

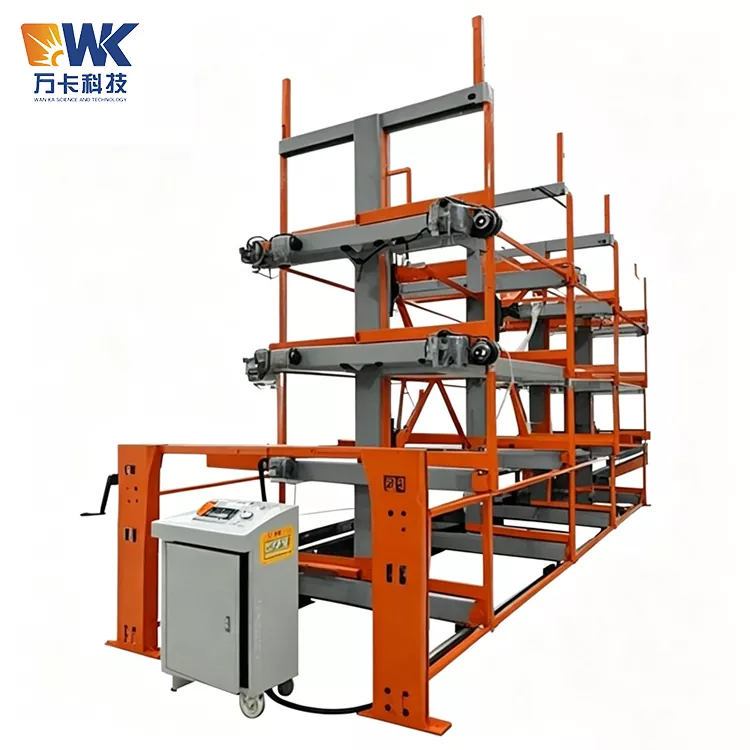

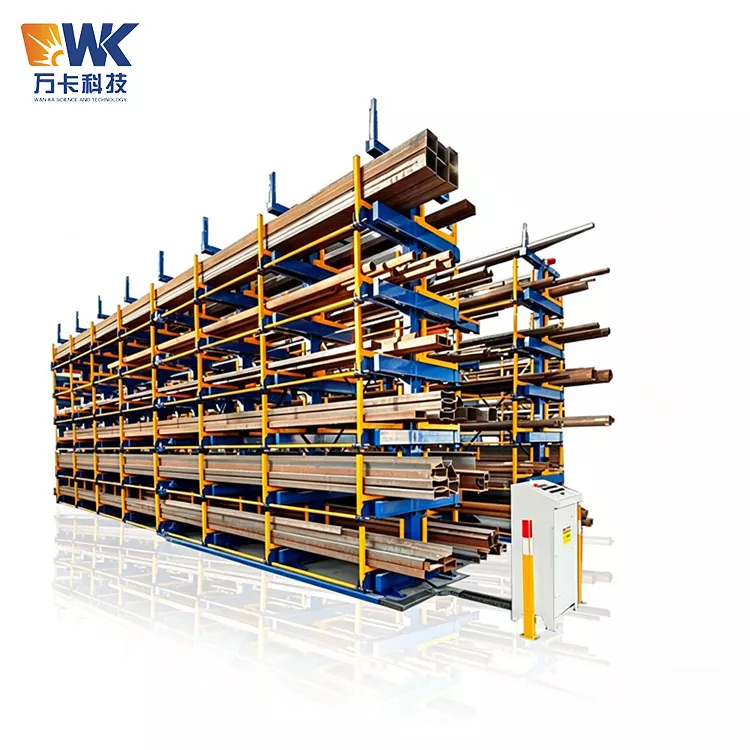

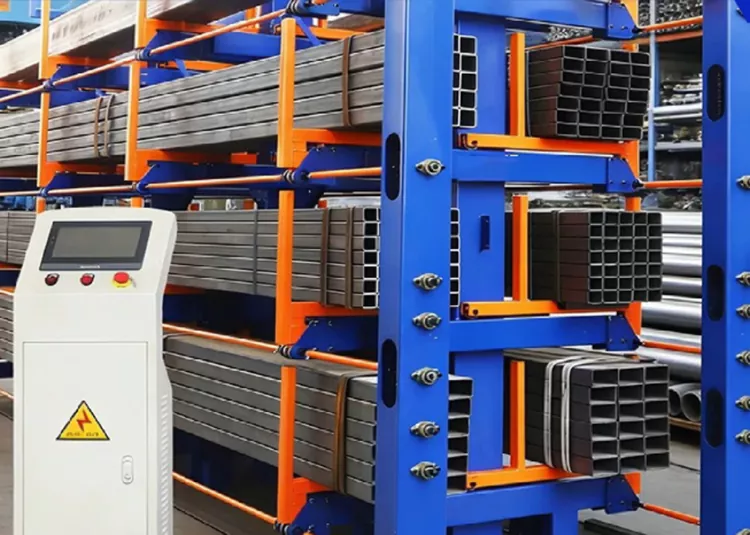

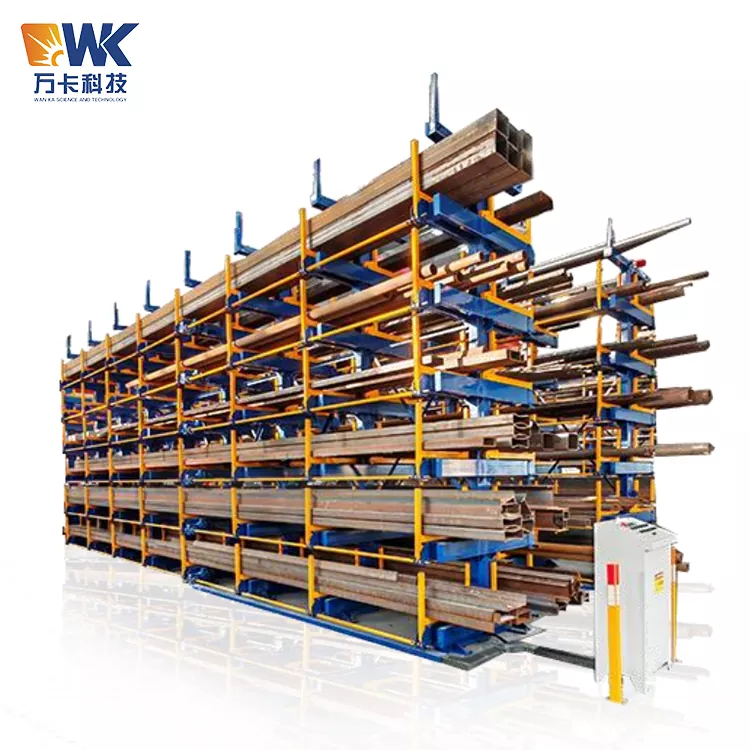

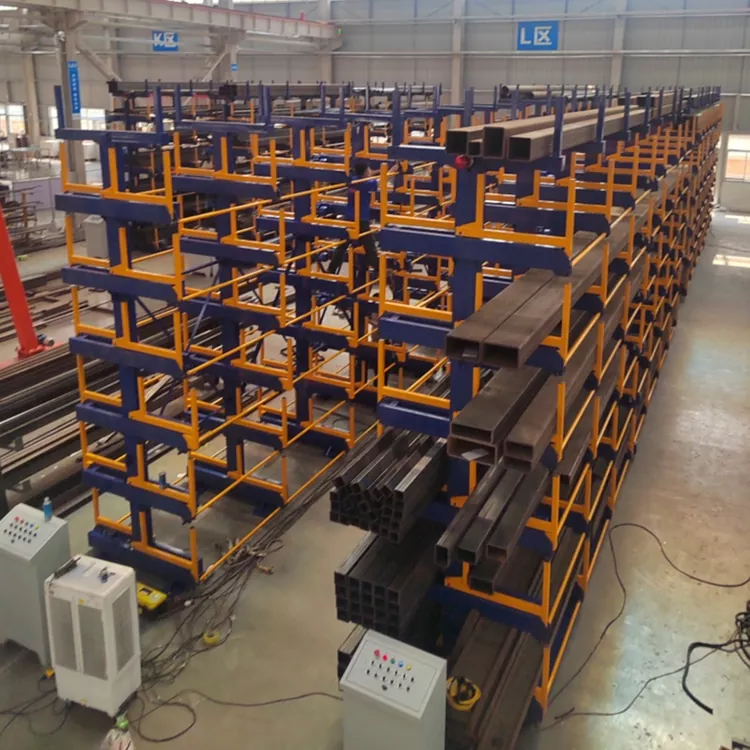

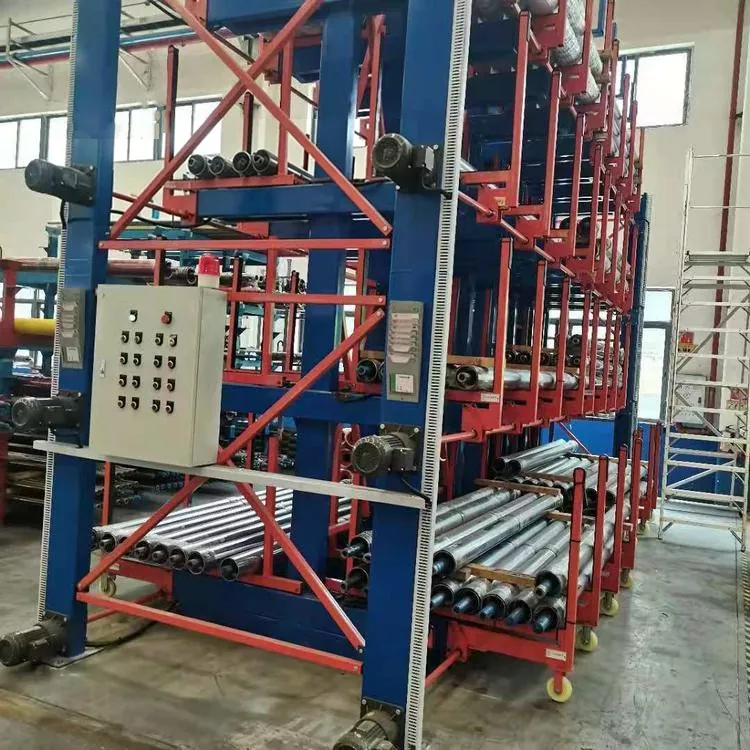

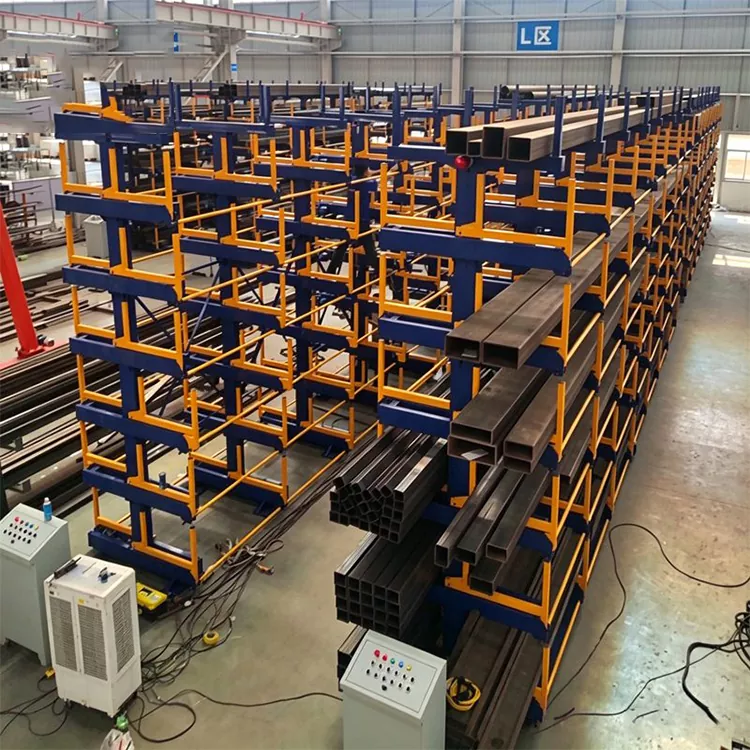

90 Electric Profile Warehouse

The purchase of the 90 Electric Profile Warehouse supplied by Wanka Factory can significantly enhance the efficiency of long material retrieval, save floor space in the workshop, and reduce the labor intensity. Brand Wanka Technology offers ISO9001 quality assurance, supports customization of size and color, and is an ideal choice for the mechanical manufacturing, steel structure, and shipbuilding industries. Enjoy 12-month motor warranty and remote installation guidance upon purchase.

Core selling points

- Specifically designed for 9-meter-long materials, with greater load-bearing capacity

- Electric telescopic design, saving effort and efficiency

- Space utilization increased by 200%

- Comprehensive upgrade of safety system

- Flexible customization, suitable for various materials

Technical Specifications

The following are the standard parameters for the main models of 990 Electric Profile Warehouse, namely WK-G9055S (single side) and WK-G9055D (double side). Customization can be done according to customer requirements.

Application Areas and Examples

The 90 Series Electric Profile Storage System is particularly suitable for industries that require frequent access to 9-meter-long heavy-duty materials:

- Heavy machinery manufacturing (large shafts, tracks, long sprockets)

- Shipbuilding (ship steel, L-shaped steel, spherical flat steel)

- Steel structure bridges (large I-beams, H-beams 9-12 meters in length)

- Construction formwork rental (9-meter scaffolding pipes, square steel rental warehouse)

- Aluminum profile extrusion factory (9-meter industrial aluminum profile finished products storage)

- Oil pipeline storage (large-diameter seamless steel pipes)

Quality Assurance and Certification

Wanka Technology strictly adheres to the ISO9001:2015 quality management system and fully controls the production process of the 90-type electric profile storage system. The main quality assurance measures include:

- All load-bearing steel (Q355B) undergoes incoming mechanical performance inspection.

- Cantilever welding uses robot automatic welding, and the welds undergo 20% ultrasonic testing.

- After the entire machine is assembled, it undergoes rated load and 1.25 times dynamic load tests, with continuous operation for 100 times without any abnormalities.

- Surface painting uses epoxy polyester powder, electrostatic spraying, with a coating thickness of 80-120 μm, and the salt spray test is ≥ 240 hours.

- The electrical part passes CE certification, and the motor protection level is IP55.

We can provide the factory inspection report for each device, material certificate, and weld flaw detection report. For export orders, we can also provide the origin certificate and conformity certificate. Customers can schedule a visit to the factory production line (Xinlonghai Industrial Park, Jiyang District, Jinan City) to observe the entire process of CNC cutting, robot welding, and powder coating in person.

Comparative advantages over peers - Why choose Wanka Technology?

There are some manufacturers of cantilevered shelves in the market, but Wanka Technology's 90 Electric Profile Warehouse has the following distinctive advantages:

- Optimized structure specifically for materials over 9 meters in length: Most shelf manufacturers simply lengthen the existing design, resulting in cantilevers that sag or shake. We redesigned the columns, bases, and cantilever sections through finite element analysis to ensure that the cantilever end deformation is less than L/300 (approximately 30mm) at a 9-meter length, meeting heavy-duty usage requirements.

- More reliable transmission system: Using high-precision gear racks instead of steel wires or chains, the positioning is precise, and the maintenance cycle is long. The gear racks are quenched and have a hardness of HRC45 or above, with superior wear resistance.

Customization/Process Flow (Additional Content):

The customization process for the 90-type electric profile storage system is very clear:

Step 1: The customer provides the type of profiles, length (up to 9 meters or longer), single piece weight, number of pieces per layer, net height of the factory, and logistics equipment (forklift or crane).

Step 2: Wanka Technology outputs a three-dimensional schematic diagram, technical parameter table, and quotation.

Step 3: Both parties confirm the technical agreement and contract, and pay the deposit.

Step 4: The factory produces (including steel cutting, welding, shot blasting for rust removal, painting, electrical assembly), with a production cycle of approximately 25-30 working days.

Step 5: Before shipment, the customer can conduct video inspection or send someone to the factory for inspection.

Step 6: Shipment, installation guidance, on-site debugging and training.

Step 7: Entering the after-sales and warranty period.

All customized information is signed and archived on the drawings to ensure traceability for future maintenance.

Actual usage experience (quoted from the customer):

Mr. Zhang, the warehouse supervisor of a construction machinery parts factory in Xuzhou, Jiangsu Province: "The height of our workshop is only 5.8 meters. We originally thought that we couldn't fit a 9-meter-long electric shelf. After the engineers from Wanka measured it on-site, they designed a non-standard solution to lower the top layer height. Eventually, they managed to install 5 layers, with each layer capable of bearing 5 tons. It was quite an extreme solution but very stable. We have been using it for over half a year, and the motor has never had any problems. The remote control is also very sensitive. I recommend it to my colleagues."

Summary: The 90-type electric profile storage system is a mature solution developed by Wanka Technology for the storage of 9-meter-long heavy profiles. It integrates features such as electric telescoping, high load-bearing capacity, safety protection, and flexible customization. Whether for building a new intelligent warehouse or upgrading an existing one, choosing the 90-type electric profile storage system can effectively enhance material turnover efficiency and reduce storage costs. Please contact Eric (+86 131-7302-8359) or Quinlee (+86 159-4970-8933) to obtain quotations or arrange on-site inspections.
