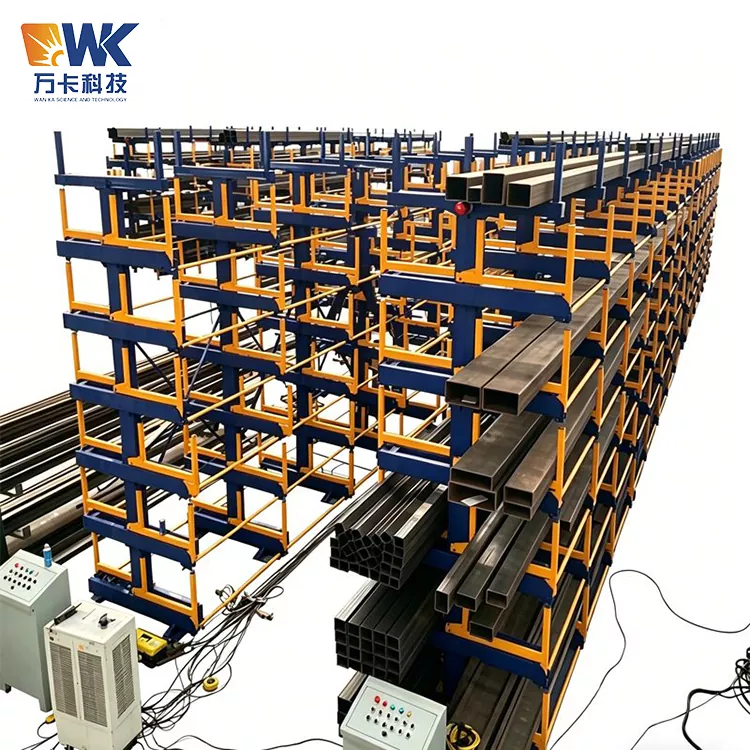

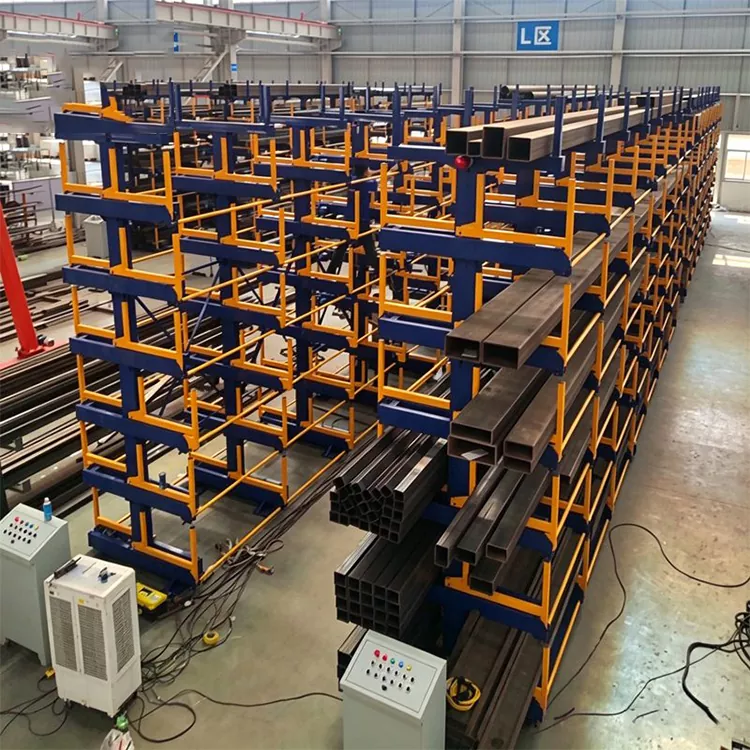

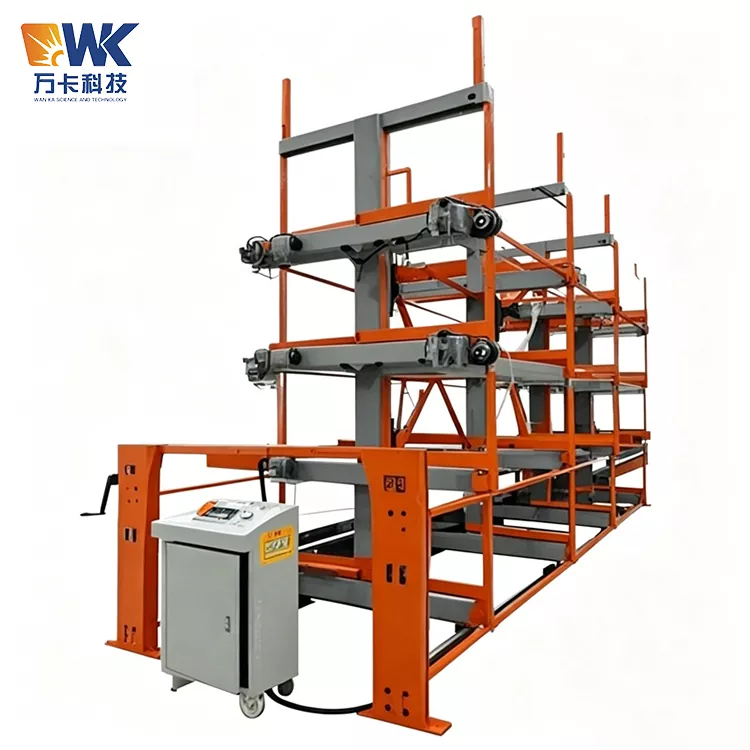

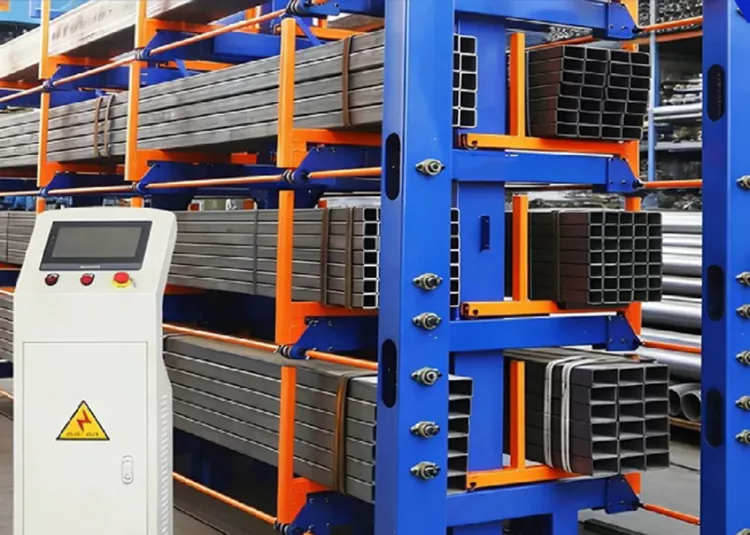

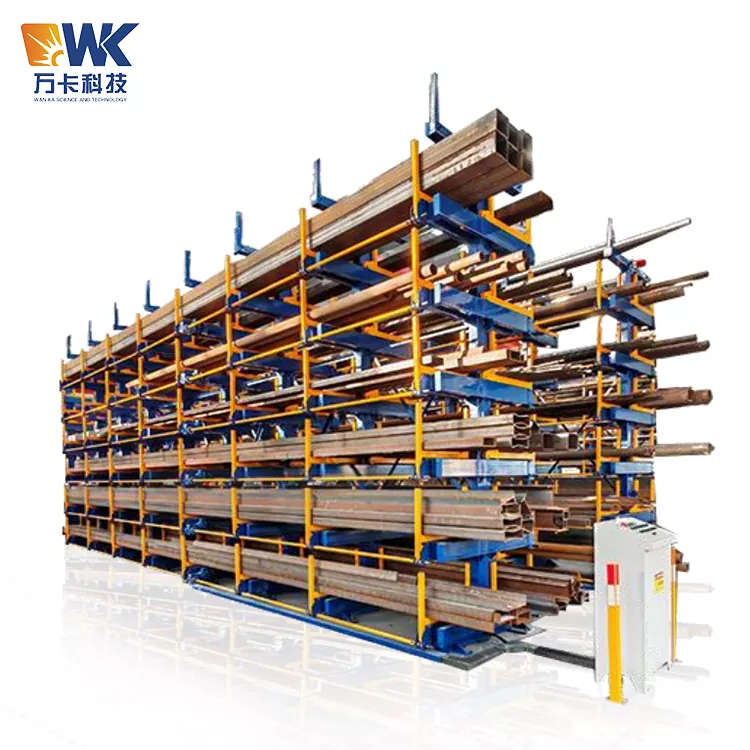

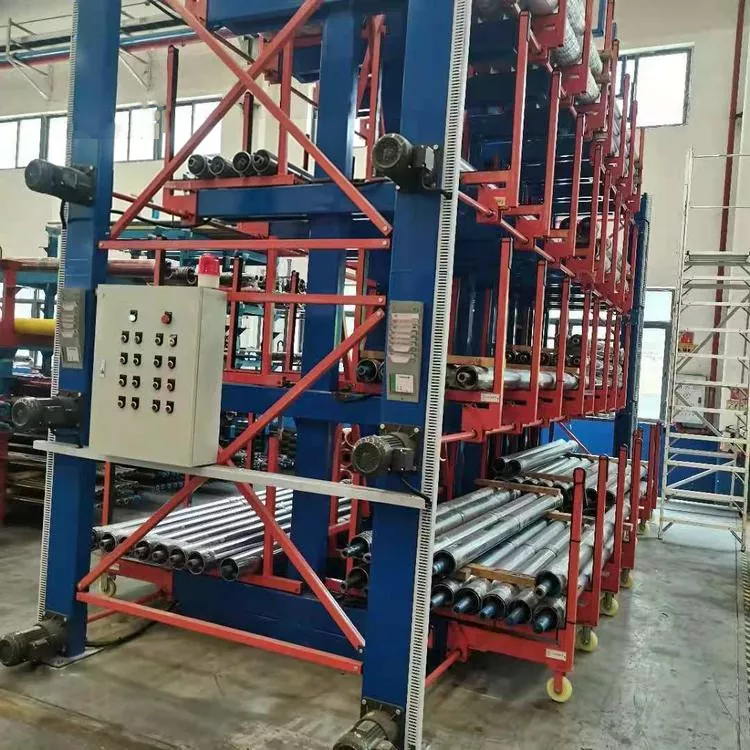

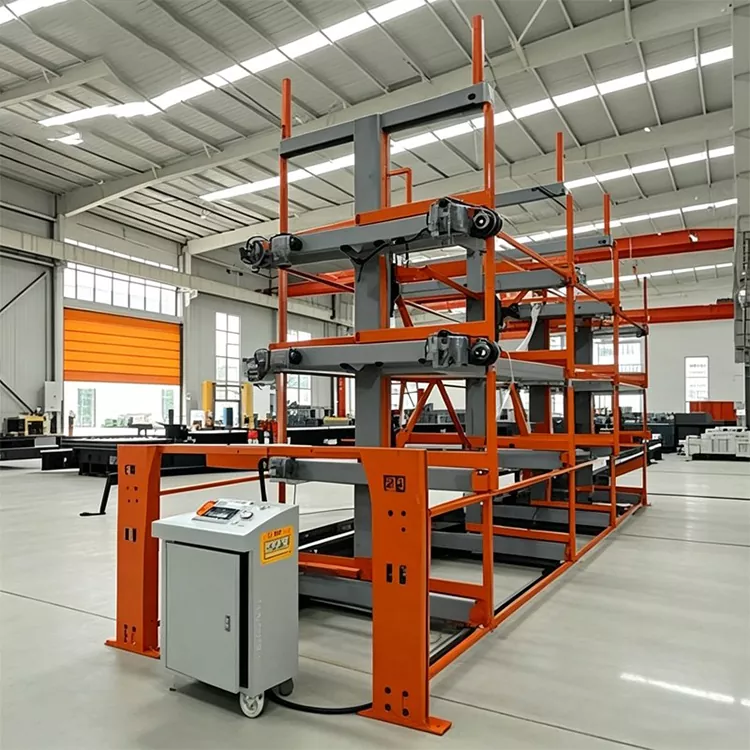

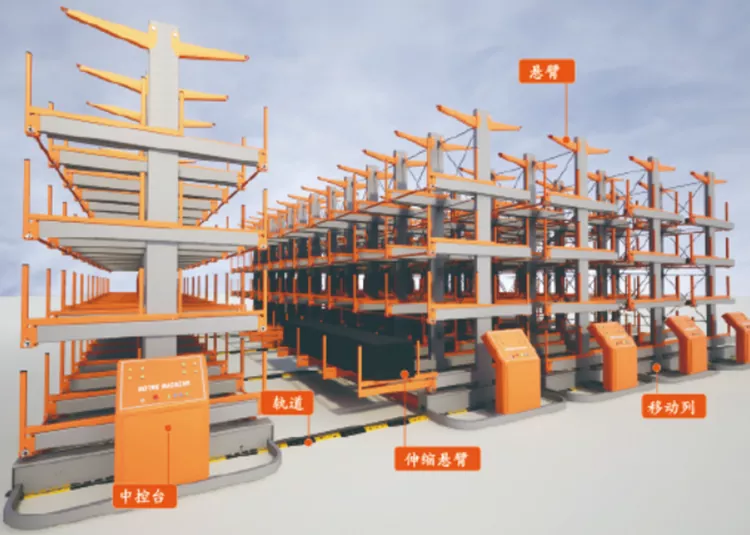

60 Electric Profile Warehouse

60 Electric Profile Warehouse is an advanced electric telescopic cantilever storage system developed by the supplier of Jinan Wanka. It is specifically designed for the automated storage and retrieval of long profiles, pipes, round bars, square tubes, and irregular materials.

Unlike traditional fixed shelves, this electric profile warehouse uses motor-driven telescopic arms that can be extended and retracted by button control. Operators do not need to enter narrow passages to access the profiles.

Each cantilever can move independently, and the entire system can be integrated with forklifts, gantry cranes, or mechanical hands. "60" indicates compatibility with the longest 6-meter profiles, making it an ideal solution for handling standard steel pipes, aluminum profiles, or plastic pipes.

Whether it's carbon steel pipes, stainless steel profiles, or PVC conduits, the 60 electric profile warehouse ensures orderly storage, without damage, and saves space.

Key Selling Points

- Electric drive, labor-saving: The 60 electric profile storage unit is equipped with motors and a gear transmission system. Operators only need to press a button to extend or retract the boom, without the need for manual pushing or pulling. This reduces physical strain and increases production efficiency by 50%.

- Vertical storage that saves space: By utilizing the vertical space in the workshop, this electric profile storage unit can store up to 5 layers of profiles (4+1 design), with a height of 100-250mm between layers. The width of a single device is only 1.55 meters, but the depth can accommodate up to 9 meters of profiles, significantly increasing the storage density per unit area.

- Enhanced safety: The system includes automatic gas cut-off protection and anti-collision sensors. Once the power is cut off or an object is detected, the boom immediately stops. The safety system also prevents accidental over-extension of the boom, protecting both operators and materials.

- High load-bearing capacity: Each boom arm can bear up to 3 tons (models such as WK-G6053S/D), and larger models can reach up to 5 tons. The total load per layer can reach 15-25 tons, suitable for heavy steel bars or thick-walled pipes.

- Customizable design: The 60 electric profile storage unit is fully customizable - arm length, arm spacing, column intervals (standard 1800mm), and the number of layers can all be adjusted according to your specific profile dimensions. Options include single-sided or double-sided boom extension, different voltages (380V), and color painting.

Technical Specifications

The following are the main technical parameters of the 60 Electric Profile Warehouse series (refer to model WK-G6053S/D). Customization is available upon request.

Application Areas and Examples

The 60 electric profile storage system is widely used in the following fields:

- Metal processing workshops (storage of steel pipes, angle bars, channel bars)

- Machinery manufacturing plants (storage of shafts, linear guides, aluminum profiles)

- Automotive manufacturing (storage of frame longitudinal beams, exhaust pipes)

- Steel structure industry (square tubes, H-shaped steel)

- Building material warehouses (rebar, PVC pipes, copper pipes)

Case: A large-scale steel structure company in Shandong installed 4 sets of 60 Electric Profile Warehouse (double-sided, 5 layers) for storing 6-meter Q235 square tubes. Previously, they used ground storage, which occupied 120 square meters and caused material deformation. After adopting our electric profile warehouse, the storage space was reduced to 35 square meters, and the material retrieval time was shortened from 15 minutes to less than 2 minutes, eliminating the problem of product damage completely. The customer recovered the entire investment within 8 months.

Quality Assurance and Certification

Wanka Technology has obtained ISO9001:2015 certification. From raw material inspection to final assembly, we implement strict quality control.

Our 60 electric profile library has undergone:

- 100% weld inspection (magnetic particle testing for critical welds)

- 150% rated load testing before shipment

- Continuous operation tests of the motor and transmission system (8 hours)

- Adhesion test of surface coating (grid method)

We offer:

- CE certification (for export to the EU)

- Factory production line photos (numerical control cutting, robot welding, powder coating)

- Test reports provided for each batch of goods

After-sales and Service Support

We offer comprehensive after-sales service for each set of 60 Electric Profile Warehouse:

- Installation Guidance: Provide detailed graphic manuals (PDF) and step-by-step video tutorials. On-site installation by technicians can also be arranged (at an additional cost).

- Training: Provide free remote training for your operators via video calls, covering daily operations, safety checks, and basic troubleshooting.

- Warranty: The motor, gearbox, and steel structure frame are guaranteed for 12 months.

- Spare Parts: Common spare parts (limit switches, drive wheels, control boards) are shipped with the machine.

- Maintenance Reminders: We send email reminders for semi-annual lubrication and bolt torque checks regularly.

Frequently Asked Questions (FAQ)

Question 1: Can the 60 Electric Profile Warehouse store profiles longer than 6 meters?

Answer: Yes, we offer custom models up to 9 meters (WK-G9055 series) and even 12 meters. The standard 60 model is optimized for 6-meter lengths, but we can adjust the arm length and column spacing for longer profiles.

Question 2: Is special foundation required?

Answer: For single-sided equipment, standard concrete floor (C25, 150mm thick) is sufficient. For double-sided equipment with a heavier load (more than 5T for a single arm), pre-buried anchor bolts may be needed. We will provide the foundation drawings.

Question 3: How many sections of material can a cantilever hold?

Answer: It depends on the diameter and weight of the material. Taking 60mm round steel (approximately 22kg/m) as an example, a 3T arm can hold 45 sections of 6-meter-long round steel. For larger pipes, the quantity will be reduced. You can calculate it based on your material density.

Question 4: Is there a manual mode in case of power failure?

Answer: Yes, each electric telescopic arm is equipped with a manual crank. In case of power failure, the boom can be manually retracted.

Question 5: Can it be integrated with the automatic feeding manipulator?

Answer: Of course it can. The 60 electric profile storage unit is compatible with our gantry-type compound loading and unloading manipulator. We can provide a complete set of automated production line solutions.

Question 6: How long does it take to deliver custom equipment?

Answer: Standard size (6 meters, single side, double side) will be shipped within 30 working days. Custom colors, lengths or electric functions will require an additional 10-15 days.

Question 7: Are samples or trial versions provided?

Answer: We can provide you with a 3D simulation diagram of your layout.

Question 8: How to obtain the quotation?

Answer: Contact our sales manager: Eric: +86 131-7302-8359, Quinlee: +86 159-4970-8933. (WhatsApp and WeChat) Email:

Eric: eric@wankametal.com,

Quinlee: Quinlee@wankametal.com.

Please provide the type of profile, length, maximum weight of a single arm, and the number of storage layers required.

Why choose Wanka Technology?

With over 20 years of experience, more than 100 employees and a 10,000-square-meter factory, we are the leading intelligent warehousing equipment manufacturer in Shandong region. Our 60 electric profile storage units are trusted by thousands of enterprises both at home and abroad. We offer comprehensive customization, CE certification and rapid response after-sales support. Choosing us means choosing reliability, safety and efficiency.
