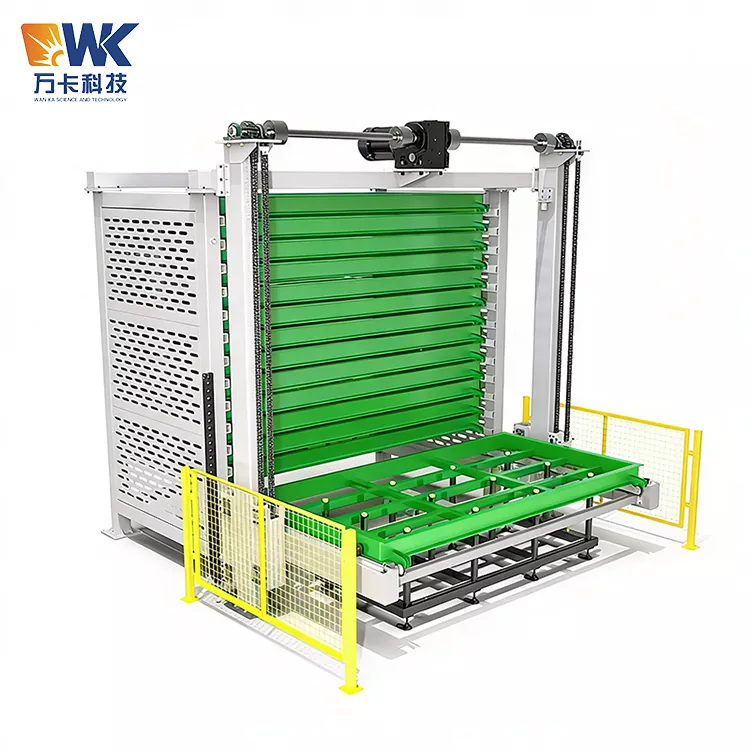

2530 Automatic Sheet Metal Storage

The 2530 Automatic Sheet Metal Storage produced by Wanka's suppliers features a layered drawer-type horizontal moving structure. It completely eliminates the ground stacking mode commonly used in the industry. It relies on a servo horizontal moving transmission system to automatically align and discharge materials at the storage positions. It can seamlessly connect with vacuum suction trolleys, fixed gantry cranes, and industrial forklifts as three types of material extraction devices. It builds an unmanned integrated production line for raw material storage and cutting processing.

The entire machine adopts a six-part modular construction. It is divided into a load-bearing main frame, a bearing support assembly, a dual-track synchronous transmission group, a quenched linear guide rail, a PLC intelligent electrical control unit, and a multi-layer safety protection mechanism. Each component can be disassembled and replaced independently. Maintenance and repair can be completed without disassembling the entire storage unit, significantly reducing the downtime for equipment maintenance and repair.

Details

The main load-bearing structure is made by welding together thickened rectangular pipes in accordance with national standards Q235B. The entire structure undergoes Sa2.5 level dry sandblasting rust removal and is then treated with high-temperature electrostatic powder coating. It can withstand harsh working conditions such as dust, moisture, and cutting oil mist in the workshop.

The support frame adopts a box-type closed welding structure, equipped with 45 steel tempered heavy-duty rollers and hardened solid guide rails. The dynamic operation stability is sufficient.

The electrical control system is equipped with an industrial-grade PLC controller and multiple-position encoders for positioning. The lateral movement stop error is controlled within 3mm, and it is combined with multiple mechanical and electronic limit protection measures to ensure that there is no shaking, no deviation, and no potential sliding hazards during the transfer process of 2500mm large sheet materials.

2530 Automatic Sheet Metal Storage supports two versions: indoor closed dust-proof modification and outdoor all-weather rain-proof and anti-corrosion customization. The overall design service life of the machine can reach more than 15 years, making it a standardized preferred equipment for the automation upgrade of wide-format sheet material storage.

Core selling points:

1. Heavy-duty stable structure design, suitable for long-term reciprocating operations of heavy-duty large plates.

2. Strong adaptability to harsh working conditions, with dual dust-proof and rain-proof solutions available for free selection.

3. High-precision electronic control linkage system, connecting the digital management chain of the factory.

4. Low threshold for factory adaptation, with simple and efficient renovation and construction.

5. Generalized consumables and controllable full-cycle operation and maintenance costs.

6. Green and low-carbon structure, facilitating factory environmental audits and the establishment of a green supply chain.

7. Diversified implementation benefits, long-term release of cost dividends.
