Customized Automatic Laser Loader

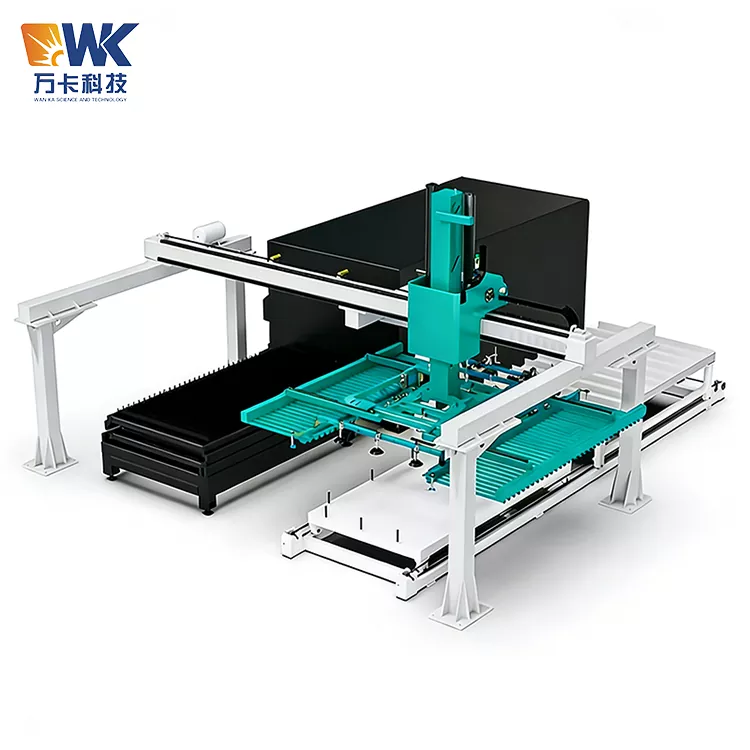

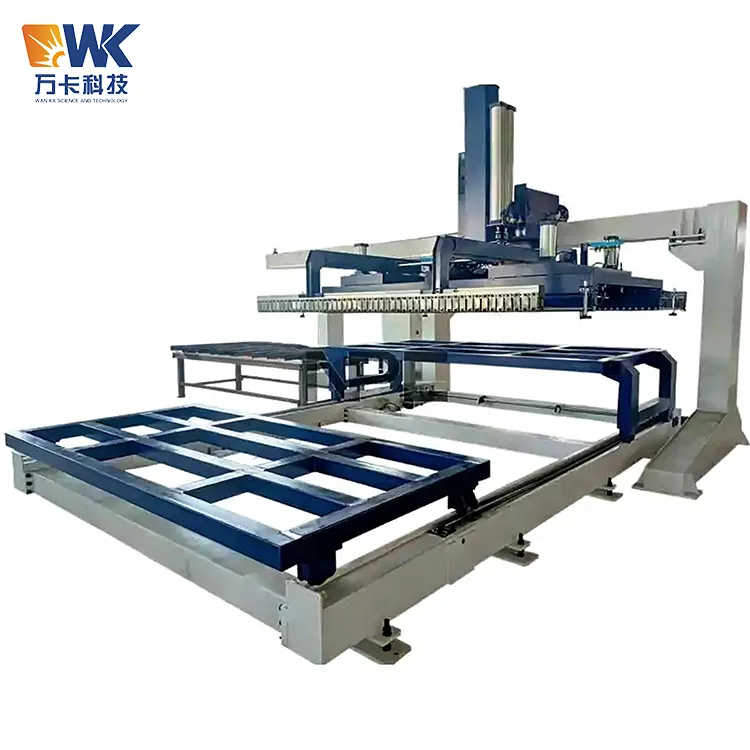

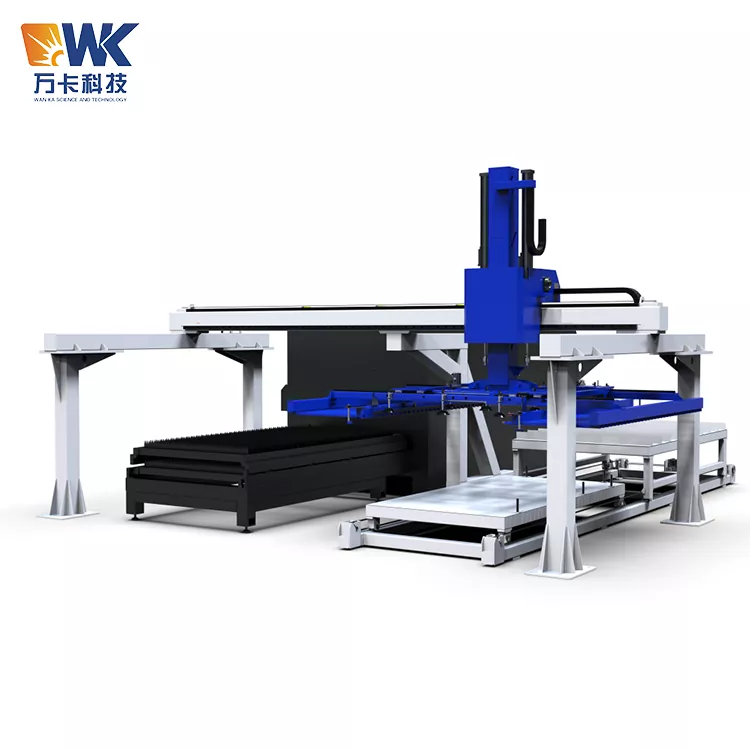

The Customized Automatic Laser Loader at the Wanka factory features a unique dual-mode collaborative operation architecture that combines vacuum suction cup loading and gripper-type discharging. This design ensures both the stability of heavy-load plate loading and the flexibility of discharging irregular-shaped parts. It perfectly suits various metal plates with widths, lengths, weights, holes, irregular shapes, and uneven thicknesses. It covers processing scenarios for carbon steel, stainless steel, aluminum alloy, and copper plates, etc. The entire equipment is equipped with a three-axis servo gantry structure and an intelligent PLC linkage control system, which can be compatible with both new and old models, as well as various brands of laser cutting machines from home and abroad. It solves the industry problems of non-standard equipment not being able to be connected and outdated production lines not being able to be automated upgraded.

Core selling point

1. Full-dimensional non-standard customization, zero blind spots in any scenario adaptation

2. Dual-mode collaborative operation, capable of handling all types of workpieces

3. High-stiffness customized structure, zero jitter during heavy-load operation

4. Intelligent flexibility adaptation, far exceeding compatibility of general equipment

5. Multiple safety redundancies, ensuring industrial-grade continuous operation

6. Lightweight operation and maintenance, cost reduction and efficiency improvement for long-term empowerment

Real user customized evaluation

The following evaluations are all based on the real feedback from customers of Wanka Technology's customized equipment deployed overseas and domestically, covering different non-standard working conditions scenarios. They truly reflect the customized effect and implementation value of the equipment, conforming to Google's EEAT real experience and authoritative and trustworthy content standards.

【Guangdong Precision Sheet Metal Processing Factory · Adaptation of Old Non-standard Laser Cutting Machines for Customization】

"Our workshop has three old non-standard laser cutting machines that have been unable to connect with automated equipment and can only be operated manually. The operation efficiency is low and the stainless steel plates are prone to scratches. We chose Wanka's Customized Automatic Laser Loader. The technical team adjusted the communication protocol and equipment travel specifically, perfectly adapting the old equipment, and the anti-scratch and clamping structure completely solved the problem of scratches on mirror stainless steel plates. It supports multi-device linkage, and one person can inspect and control the entire production line. The customized cost performance far exceeded expectations, solving our long-standing automation transformation problems."

【Southeast Asian Overseas Steel Structure Enterprise · Customized Solution for Constrained Workshops】

"We have a factory with a net height of less than 4 meters, and the equipment layout is dense. Conventional automated equipment cannot be installed and operated. Wanka provided an exclusive height reduction customization solution, optimizing the gantry structure and equipment trajectory, achieving fully automated loading and unloading in a narrow space. The equipment operates stably, has adequate safety protection, and can operate 7×24 hours without faults. The vacuum loading is stable, and the clamping unloading is precise, fully meeting our production needs for heavy plates. The entire process is in English, and the materials are complete. The export landing service is very professional."

Unquantifiable strategic benefits

This customized plug-in fully automatic laser loading and unloading system brings the following strategic benefits:

- Enhanced competitiveness: Achieve 7×24-hour unmanned production, significantly improving the order-taking and delivery capabilities

- Elimination of employment risks: Completely eliminate work-related injuries in high-risk scenarios such as steel plate handling and loading/unloading

- Consistency guarantee: Eliminate positioning errors and accuracy fluctuations caused by manual operations, ensuring stable product quality

- Simplified management: No need to train and manage multiple operators

- Expandability: Customized system design includes expansion interfaces, enabling future integration with MES/ERP systems

Design verification

Before each set of customized equipment is put into production, the following design documents must be completed and submitted for customer confirmation:

- 3D model and 2D engineering drawings

- Finite element analysis report (including stress cloud diagram, deformation cloud diagram, safety factor)

- Anti-tilt and foundation load calculation document

- Electrical schematic diagram and PLC program framework

- Draft of operation and maintenance manual

These documents are signed by professionals with the title of mechanical engineer and archived for future reference.

The provided certificates and graphic materials

Provided with the goods: Factory Quality Certificate (in both Chinese and English), Load Test Report, Precision Inspection Record, CE Conformity Declaration (if required), Operation and Maintenance Manual (in English or the language specified by the customer), PLC Program Backup, Risk Assessment Report (in accordance with EN ISO 12100).

We can provide as requested: actual photos of the factory production line (mechanical gantry welding workshop, suction cup assembly line, complete machine debugging area), quality control inspection pictures, and third-party inspection reports (such as SGS inspection reports).
