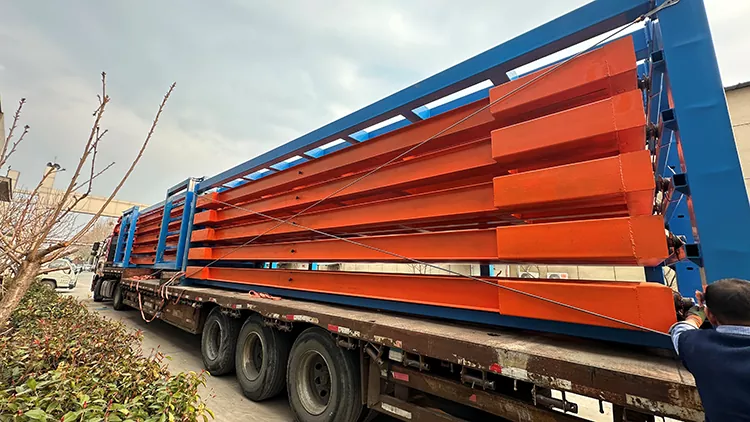

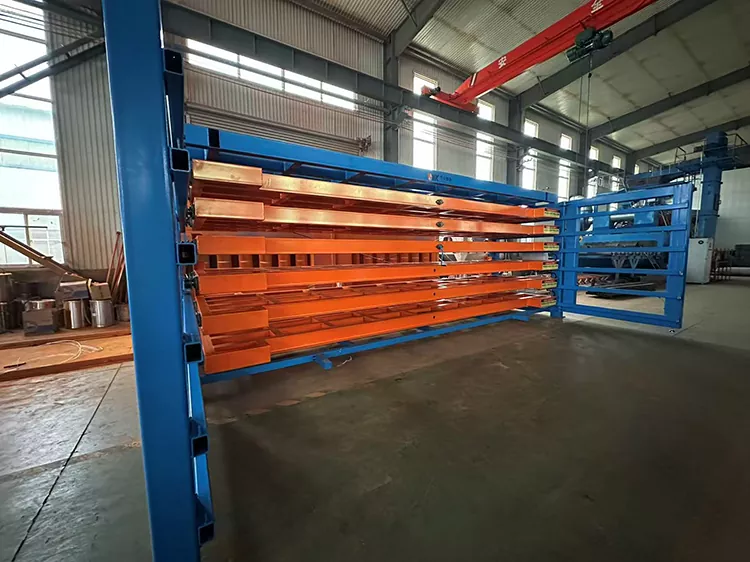

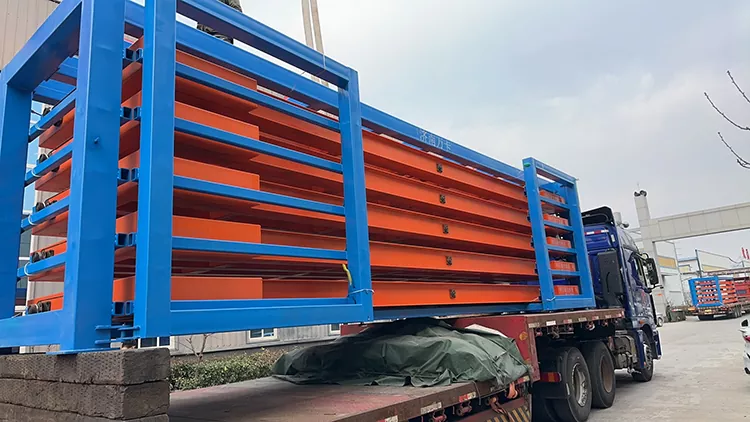

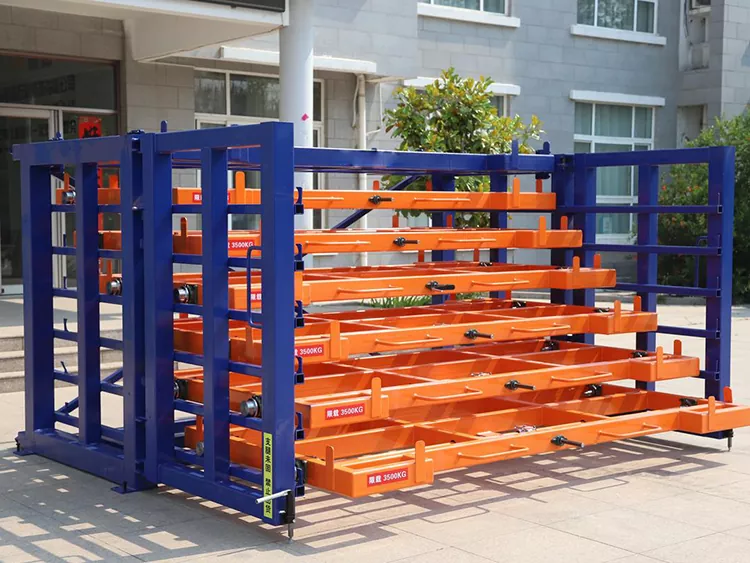

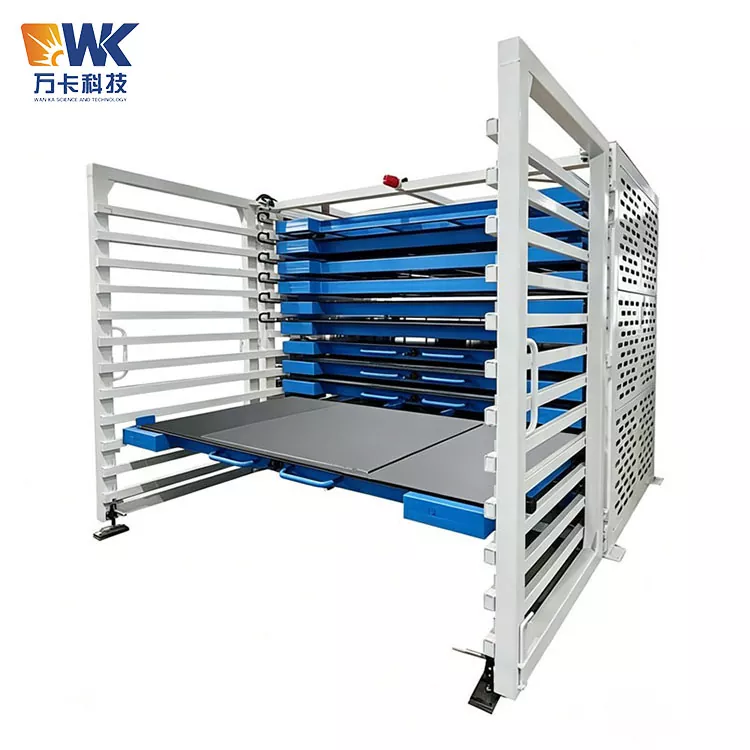

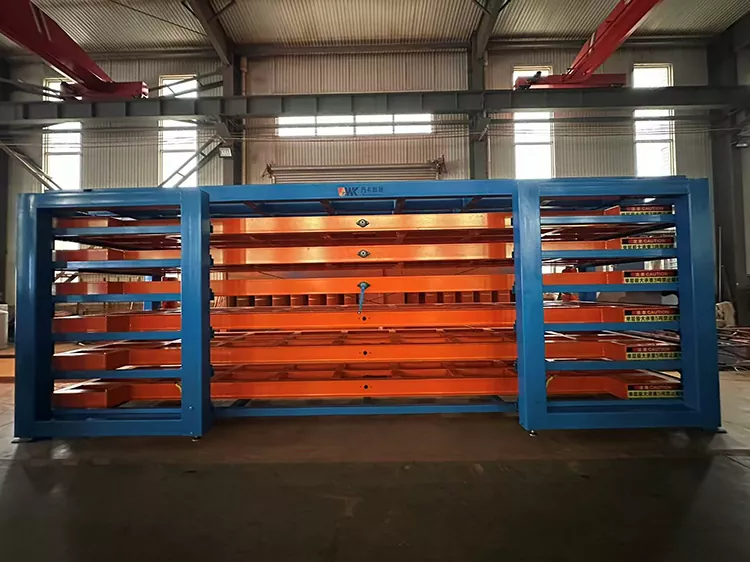

2530 Hand Cranked Sheet Metal Storage

When designing the 2530 Hand Cranked Sheet Metal Storage, the Wanka supplier adopted a purely mechanical hand-cranked drive design, which does not require an external power source, has no motor energy consumption, and no risk of circuit failure. It is suitable for various restricted working conditions such as old workshops, areas without power operations, and temporary processing sites, and has extremely strong versatility.

The entire machine is built based on thick standard steel modules, with a dense reinforcing structure inside and a balanced dual sliding rail system. The mechanical structure has been finely optimized, and the single-layer stable heavy-load performance is excellent. During the static placement and pulling process, there is no shaking, no deviation, and no sagging deformation. Different from ordinary small sheet metal shelves, this model is specifically designed for medium and large-sized sheet materials with large depth and large opening and closing pull-out designs. The space for taking and placing sheet materials is wide, and there is no need for manual stacking and transportation. A single person can complete the entire process of storage and retrieval operations through a force-saving hand-crank structure, significantly reducing the labor intensity.

The equipment adopts a layered independent closed storage structure, completely eliminating problems such as stacking and crushing, scratches, moisture oxidation, etc., of sheet materials. It ensures the integrity of high-value sheet materials such as stainless steel plates, alloy plates, laminated plates, and galvanized plates. The surface is treated with multiple industrial anti-corrosion processes, which are dust-proof, rust-proof, and resistant to knocks and wear, and are suitable for complex industrial environments such as dust and humidity in workshops. It also supports personalized modifications such as size adjustment, layer addition, and load capacity upgrade, meeting the needs of enterprise capacity expansion and sheet material specification iteration. It is a core essential equipment for medium-sized processing enterprises to upgrade standardized storage, reduce labor costs, and increase efficiency. The entire series has passed ISO9001 and CE authoritative industrial certifications and complies with domestic and international warehouse safety standards.

Why choose us

1. The exclusive heavy-duty structure of the central large plate is highly adaptable and far superior to general shelves.

2. Pure mechanical design without electricity, low energy consumption, low failure rate, and long-term stable operation.

3. Customized by the original factory, strictly avoiding any shoddy workmanship.

4. High cost-effectiveness for long-term return on investment, reducing overall operating costs.

5. High scalability, suitable for the long-term development of enterprises.

Product actual testing and authoritative inspection

Our 2530 Hand Cranked Sheet Metal Storage has undergone a complete set of industrial-level testing and inspection before leaving the factory. It strictly follows the national standards for industrial storage equipment production, and relies on its own quality inspection laboratory to complete multi-dimensional simulated working condition tests. The test data is real and traceable, and it supports third-party authoritative institutions for re-inspection, factory verification, and foreign trade customs clearance verification.

1. Heavy-load static static-stored test

Each drawer is subjected to 1.2 times the rated full load, and is statically and stably stored for 24 hours. The deformation data of the frame, drawer, and weld seam are detected. After unloading, there are no permanent bending, sagging, cracks, or loosening problems, ensuring the stability of long-term heavy-load static storage.

2. Ten-thousand times reciprocating pull durability test

Simulate the frequent daily operations in the factory, complete over ten thousand full-hand-cranked pull cycles for testing, verify the smoothness of gear transmission, chain linkage, and slide rail operation. There is no jamming, abnormal noise, or transmission failure throughout the process, ensuring the durability of long-term high-frequency operation.

3. Structural balance anti-offset test

Simulate the uneven placement of sheet materials, slight scratches from forklifts, and vibrations of the workshop floor, and test the overall verticality and structural stability of the equipment. The dual slide rails' synchronous supporting structure effectively prevents drawer offset, shaking, and inclination, and ensures smooth operation.

4. Corrosion and wear salt spray simulation test

Carry out salt spray and wear simulation tests under humid and dusty workshop conditions to verify the adhesion and anti-corrosion ability of the electrostatic powder coating protective layer. The coating does not peel off, does not fall off, and does not rust, suitable for long-term use in complex industrial environments.

5. Non-destructive flaw detection of welding process

All core welding points are fully inspected for non-destructive testing to eliminate welding defects such as false welding, pores, and slag inclusions, ensuring the integrity of the structure and the load-bearing strength. This avoids the risks of heavy-load fracture and deformation from the process end.

Authoritative qualification certification: The equipment holds ISO9001 quality management system certification and CE EU safety certification. It can provide complete material reports, factory quality inspection reports, and test parameter lists. The qualifications are complete, and the quality is authoritative and trustworthy.

FAQ

Q1: Which industrial sheet materials does this 2530 Hand Cranked Sheet Metal Storage model fit?

The standard model precisely fits medium-large-sized sheet materials ranging from 2500 to 3000mm. It is compatible with various common industrial sheet materials such as stainless steel, cold-rolled steel, aluminum, galvanized steel, and decorative coated sheets, covering the mainstream sheet storage needs of medium-sized processing plants.

Q2: Is the manual operation strenuous? Can ordinary employees operate it independently?

The equipment adopts a mechanically optimized force-saving transmission system, with low transmission loss and uniform running resistance. Even when fully loaded for storage, a single person can easily and smoothly control the pulling and pushing with no physical barrier. All employees can quickly get started with the operation.

Q3: Will the drawers shake or deviate during heavy pulling?

The equipment is equipped with a reinforced balance base and a dual sliding rail synchronous support structure. The force is evenly distributed and stable. Under the premise of standard and centered placement of sheet materials, there will be no shaking, no deviation, and no jamming during pulling and resting. The operational stability is extremely high.

Q4: Will it rust or age easily in a damp and dusty workshop?

The equipment has undergone acid washing, phosphating, and high-temperature electrostatic powder coating for dual anti-corrosion treatment. It has original anti-rust, wear-resistant, and dust-proof properties, suitable for common industrial complex conditions. For coastal salt spray and severe corrosion scenarios, customized enhanced anti-corrosion processes can be provided for long-term protection.

Q5: Without a professional installation team, can the factory assemble it by itself?

The equipment adopts a fully modular assembly design with precise holes and complete accessories. It comes with high-definition installation videos and graphic manuals. Two to three ordinary workers can independently complete the assembly and debugging without the need for professional welders or on-site installation personnel.

Q6: What is the maximum single-layer load-bearing capacity? Can it store heavy industrial sheets?

The standard model has a rated single-layer load-bearing capacity of 1.8 tons. A custom 2-ton heavy-duty upgrade version is available. The exclusive thick steel and encrypted reinforcement design can stably store various heavy sheets, with no sagging or deformation under full load.

Q7: Can the equipment be expanded and upgraded in the future?

It supports all-round future expansion. The equipment is equipped with expansion interfaces. The number of storage layers, drawer dimensions, and transmission components can be adjusted as needed. There is no need to replace the entire equipment, significantly reducing the cost of secondary procurement.
