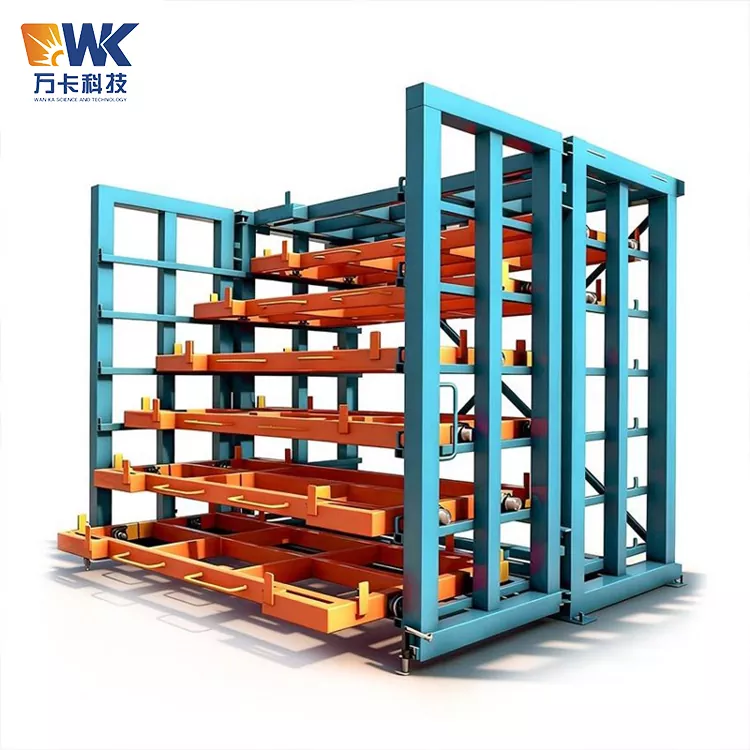

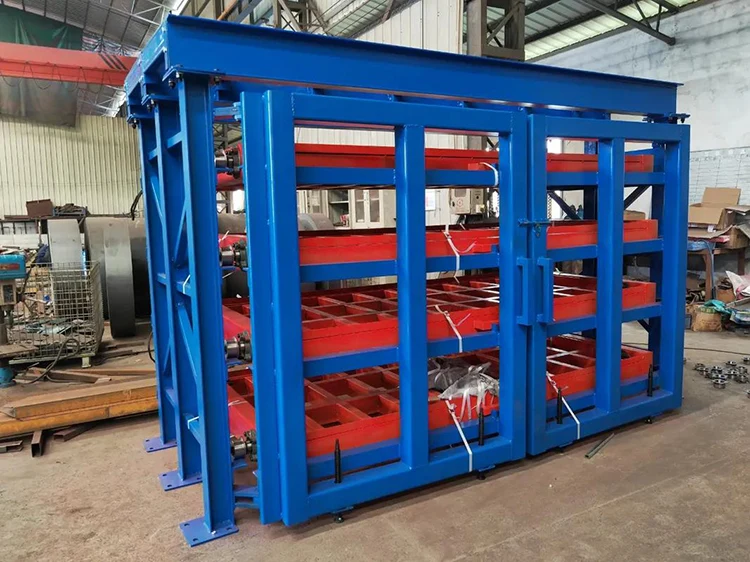

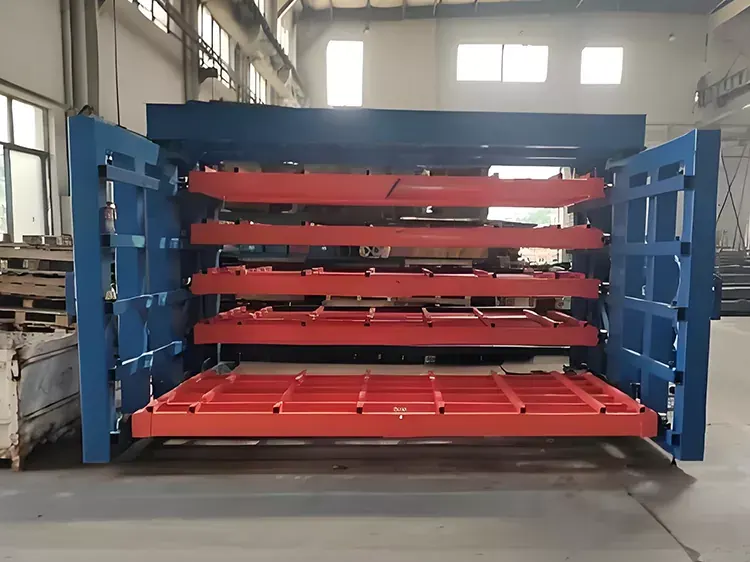

2060 Hand Pull Sheet Metal Storage

The 2060 Hand Pull Sheet Metal Storage produced by Wanka manufacturer is fully compatible with international standard plates of 8ft×4ft and 10ft×5ft. It replaces the traditional ground stacking mode and, when paired with vacuum suction grippers, can complete the entire process of loading and unloading by a single person. No heavy equipment such as cranes or forklifts are required for assistance. It is an economical upgrade solution for large-sized thick plate storage.

Core Industry Terminology Explanation

- 2060 Model Definition: The equipment name is derived from the maximum size of the compatible sheet material being 2000mm × 6000mm. It is purely manual without power drive, specifically designed for large-sized and extremely long sheet materials. It differs from the conventional small-sized sheet material storage, belonging to the category of heavy-duty manual storage.

- Heavy-duty Drawer Unit: An independent multi-level sliding structure, with a standard capacity of 3 tons for single-layer heavy loads, supporting customization of 2–4 tons parameters. It uses thick steel plates for integrated bending and is equipped with a triangular support structure, specifically designed for the storage of thick carbon steel and stainless steel in stacks.

Quiet and Wear-resistant Track System: Double-sided thickened rails + sealed bearing pulleys combination, treated with anti-rust hardening process, significantly reduces the resistance of heavy-load sliding, suitable for high-frequency, humid, and dusty complex working conditions in workshops, and is less likely to get stuck or rust.

- Sheet Partition Storage: Relying on multiple independent drawers, it enables classified storage of sheet materials ranging from 0.6mm thin to 10mm thick, and various material types. This solves the industry problems of mixed stacking of large sheet materials, disorderly specifications, and difficult inventory management.

- Powerless Low-carbon Storage: The entire process is powered by no electricity and no hydraulic drive. It does not depend on the power supply conditions of the workshop. It can operate 24/7 even in power outages or restricted power conditions, suitable for production scenarios with strict energy consumption control in the park.

- High Capacity Rate Three-dimensional Storage: The flat laying of large sheet materials increases the utilization rate from 35% to over 75%, significantly releasing the core production area of the workshop and solving the problem of wide space occupation and serious space waste of extremely long sheet materials.

- Bare Plate Protection Structure: Standardly equipped with rubber buffer brackets, and optional thickened felt pads. Specifically designed to protect high-gloss sheet materials such as mirror aluminum plates and coated stainless steel, preventing scratches and scrapping caused by sliding friction.

FAQ

Q1: Can it accommodate imported large-sized sheets?

A1: The standard model is compatible with 2000×6000mm sheets, and it can also handle regular imported sheets of 8ft×4ft. It supports non-standard lengthening and widening customization, and can cover all foreign trade standard sheet specifications.

Q2: Will heavy plates stored cause deformation?

A2: The standard single-layer load-bearing capacity is 3 tons, and the enhanced version can reach 4 tons. With 8mm thick trays and encrypted triangular supports, the entire stack of thick plates will not bend or sag even when left stationary for a long time. The structural stability has been verified through full-load testing.

Q3: Can the heavy-duty drawer be pulled easily by one person? Is it safe?

A3: The bearing force-saving structure design requires only a small pulling force to smoothly pull the drawer in the full-load state. Each layer is equipped with a mechanical anti-slip lock, and the automatic locking function will stop the drawer from sliding and the sheet from falling off at the extreme pulling point. The entire process is safe and controllable.

Q4: Compared to the electric sheet metal storage, what are the cost advantages of this 2060 Hand Pull Sheet Metal Storage?

A4: The purchase cost of the same specification is 50% lower than the electric model. There is no electricity consumption or loss of electrical control components, and the annual maintenance cost is less than 100 yuan. There are no complex operation requirements and it is suitable for lightweight budgets of small factories.

Q5: How to avoid scratching the high-gloss mirror plate material?

A5: The standard model comes with a rubber buffer layer. For high-end plate materials, a free upgrade to a felt protective pad is available. The entire process isolates metal hard friction from the source, protecting the mirror surface and coating layer of the plate.

Q6: How to ensure the stability of the equipment when the ground is uneven?

A6: The four corners are equipped with 80mm ultra-high adjustable floor anchors, which can adapt to the height difference of the ground and quickly level the equipment, eliminating problems such as tilting, jamming, and shifting. No need to renovate the ground foundation.

Q7: Is it possible to customize the number of layers and layer height flexibly?

A7: It supports free customization of 3–10 layers. The layer height can be flexibly adjusted according to the processing requirements of thin and thick plates. The frame is reserved for expansion holes, and the layer height can be adjusted freely in the future as the sheet specifications change, without the need to replace the equipment.

Q8: Does the equipment have any hidden charges?

A8: The main frame, drawers, tracks, locks, protective pad layer, and installation accessories are all standard and free. Only auxiliary accessories can be selected. The price is transparent, without additional charges or hidden costs.

Q9: Is the installation difficult? How to implement it in remote areas?

A9: The modular and separate structure, with regular accessories and precise holes, comes with a complete set of installation tools and tutorials. It can be installed independently (with free online guidance throughout the process). Most areas in China can make appointments for on-site installation.

Q10: What are the after-sales warranty and fault handling plans?

A10: The standard service life of the entire machine is 10 years. The frame has a 3-year warranty, and the wear parts have a 1-year warranty. Carding, component wear can be replaced and supplemented for free. There is a 24-hour after-sales response, and the logistics and accessory costs are borne by the manufacturer throughout the process.

Environmental protection and sustainability advantages

- Green material selection, resource recycling

- Clean energy production, low-carbon manufacturing

- Zero energy consumption operation, cost reduction and carbon emission reduction

- Reduction of material waste, green efficiency enhancement

- Full life cycle recyclability

- Enabling environmental protection materials and information support

Accurately applicable industries and specific scenarios

1. Compatible with core industries

Laser sheet metal processing, stainless steel decoration, curtain wall aluminum panels, computer cases and cabinets, construction machinery steel plates, door and window aluminum materials, kitchen and bathroom hardware, advertising metal plates, and stone thin plate processing

2. Specific implementation scenarios

- Small and compact workshops: Small area factory with no dedicated storage area for materials, no need for forklift driving, single person can quickly take materials, suitable for simplified personnel configuration mode.

- Multi-specification mixed material processing: Thick and thin plates, multi-material plates are stored in separate areas, preventing damage from mixed stacking, improving the efficiency of material inventory and retrieval.

- Power shortage and power outage factory area: Get rid of reliance on electricity, no production halt during power outages, ensure continuous operation of laser cutting assembly lines, avoid order delays.

- Dust-free high-end processing workshop: Dust-free anti-rust spraying + flexible protective structure, no metal dust, no board surface scratches, suitable for high-gloss decorative plate production.

- Small urban and suburban workshops: Equipment can be disassembled and easily transported, suitable for narrow passage entry, no need for dedicated handling personnel, significantly reducing labor costs.

- Temporary turnover storage: Easy to disassemble and assemble, reusable, suitable for short-term large-scale order temporary storage, no need for fixed construction storage areas.

- Export plate processing: Supports international non-standard large-sized plate customization, reduces export plate defect rate, avoids overseas return claims losses.

- No lifting equipment factory area: With vacuum suction grippers, loading and unloading can be completed, no need for heavy lifting equipment, reducing equipment investment costs in the factory area.

Proper Usage Restrictions

- It is strictly prohibited to overload storage. The weight of single-layer sheet metal must not exceed the rated load capacity. Long-term heavy loading can cause deformation of the bracket and damage to the track.

- After the 2060 Hand Pull Sheet Metal Storage operation, the anti-detachment lock must be fastened. The drawer must not be left exposed and suspended, and to avoid potential safety hazards such as accidental contact and falling of the sheet metal.

- The equipment must be leveled. The ground height difference needs to be leveled with anchor bolts to prevent wear on the track due to uneven force distribution and jamming during pulling and pushing.

- Sharp raw sheet metal must not come into direct contact with the pad layer. Edge protection must be done to avoid scratching the protective structure and the paint surface of the equipment.

- Multiple people are strictly prohibited from pulling the same drawer at the same time to avoid imbalance of force and resulting in derailment of the pulley or deformation of the track.

- It is strictly prohibited to store oversized sheet metal forcefully. For extremely long sheet metal, the equipment size must be customized in advance to prevent collision and damage to the sheet metal and the equipment when suspended.

- Regularly perform rust removal and lubrication of the track. In damp workshops, maintenance should be carried out monthly to avoid accumulation of rust and increased resistance during pulling and pushing.

- The stacking height of sheet metal must not exceed the limit stopper to prevent falling of materials during pulling and prevent injury to personnel and damage to the equipment.

- Equipment jamming is strictly prohibited from being forcibly struck for pushing and pulling. Prioritize cleaning debris and replenishing lubrication. Contact professional after-sales service for repair if there are any malfunction issues.

- Designate a dedicated working area. Non-working personnel are strictly prohibited from operating the equipment at will to avoid safety risks of accidental operation.
