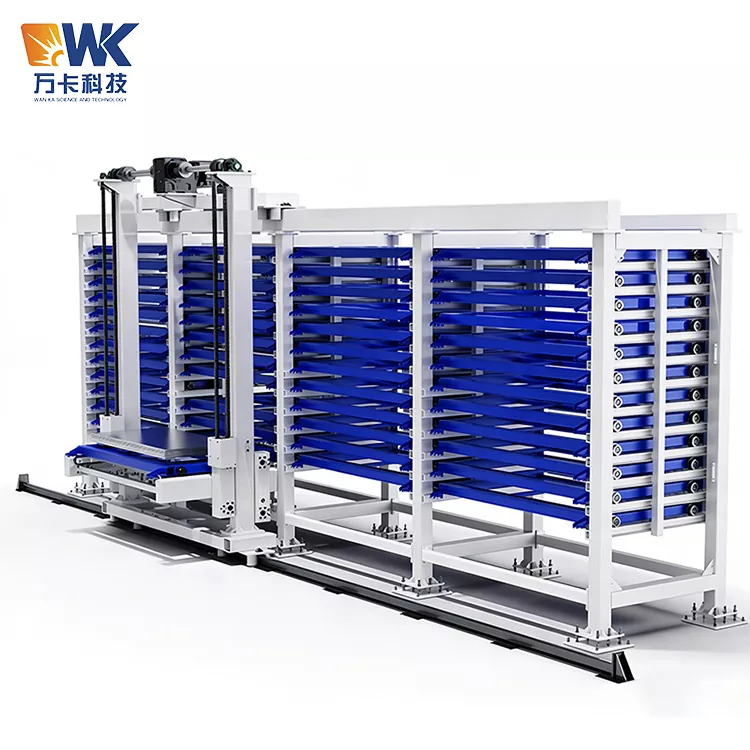

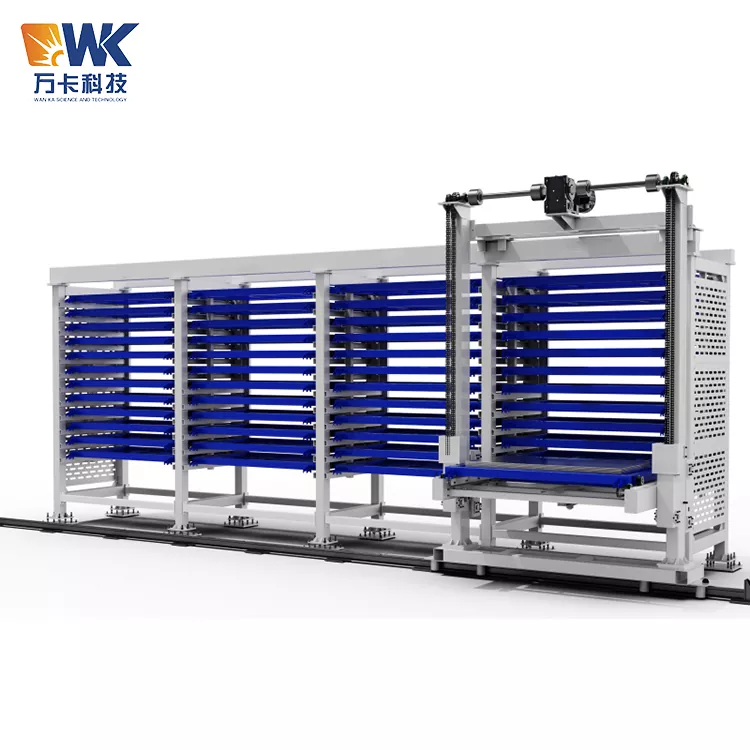

1560 Automatic Sheet Metal Storage

Operating mode

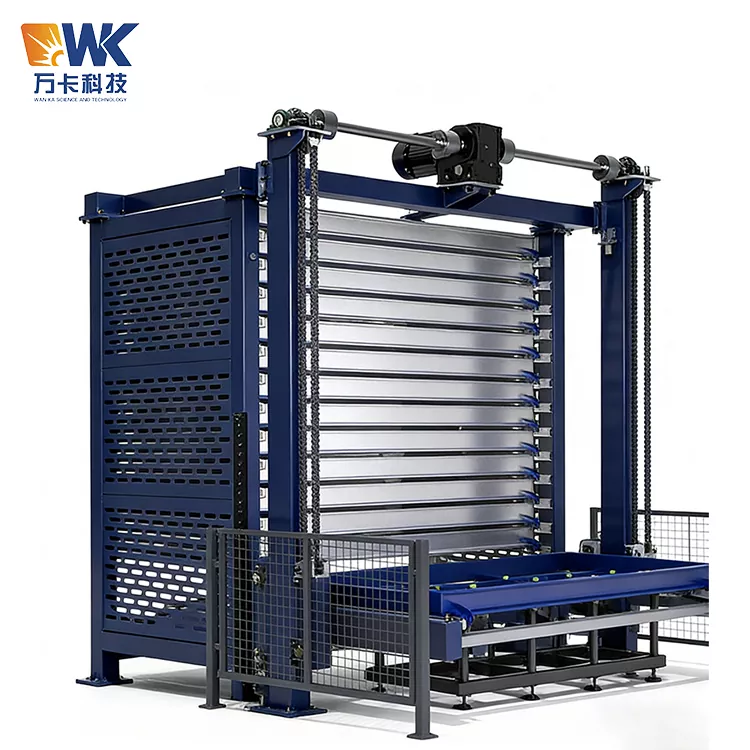

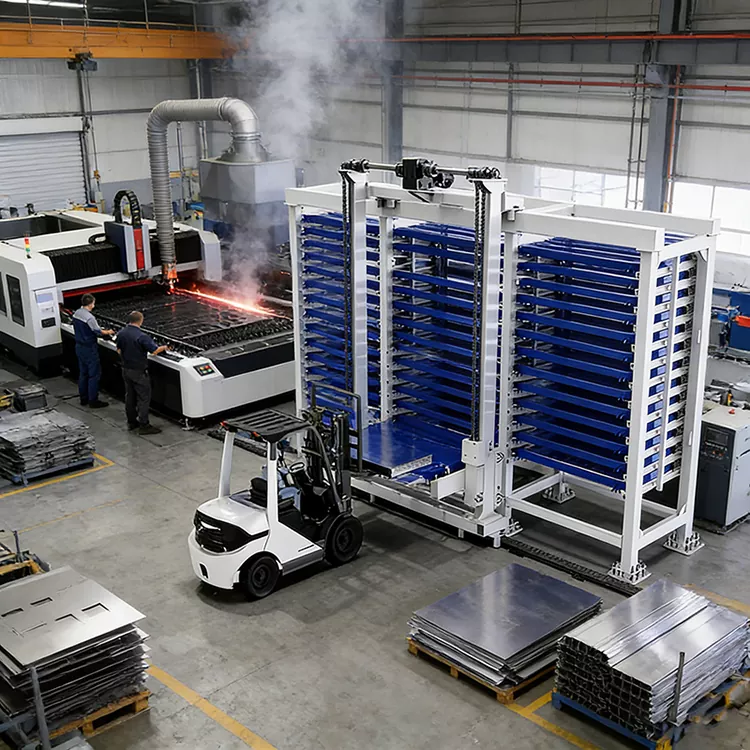

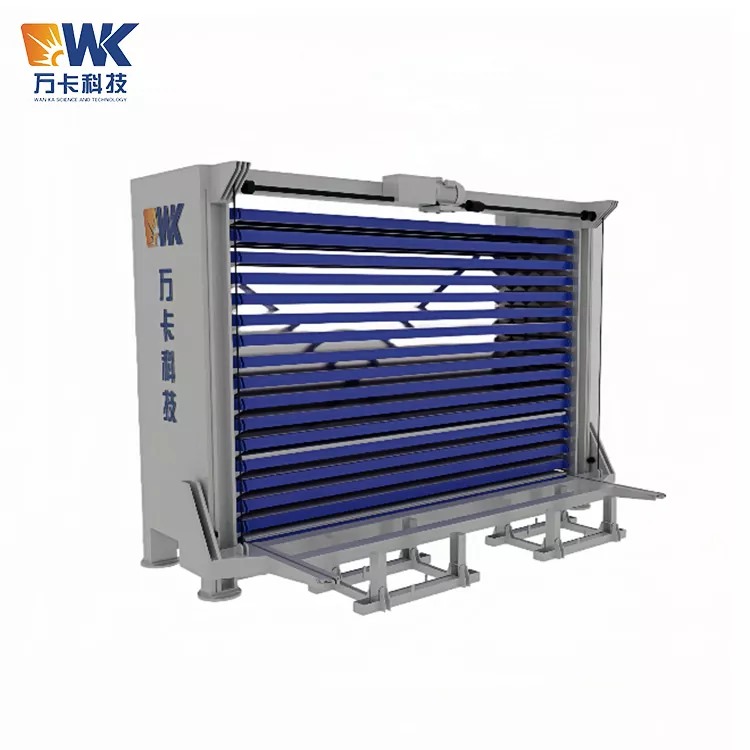

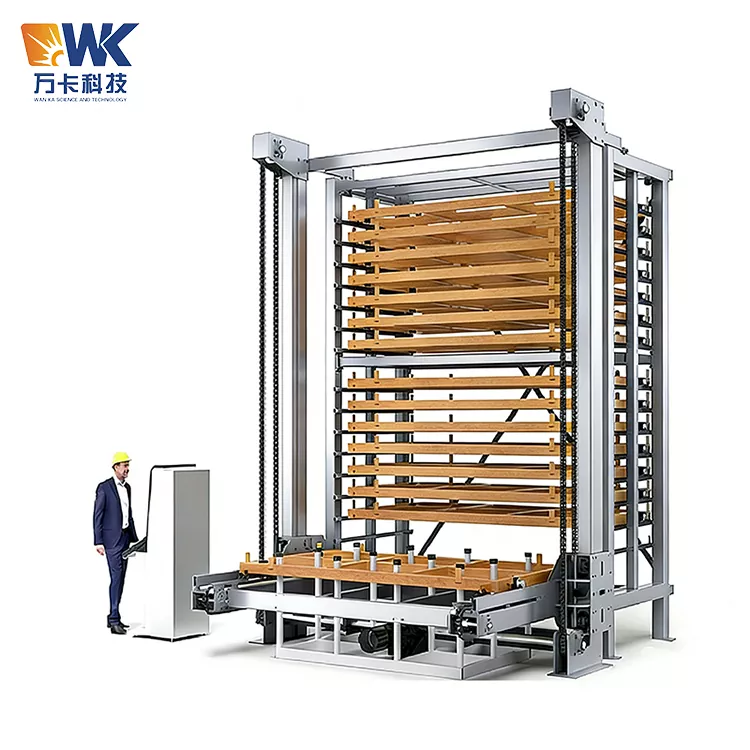

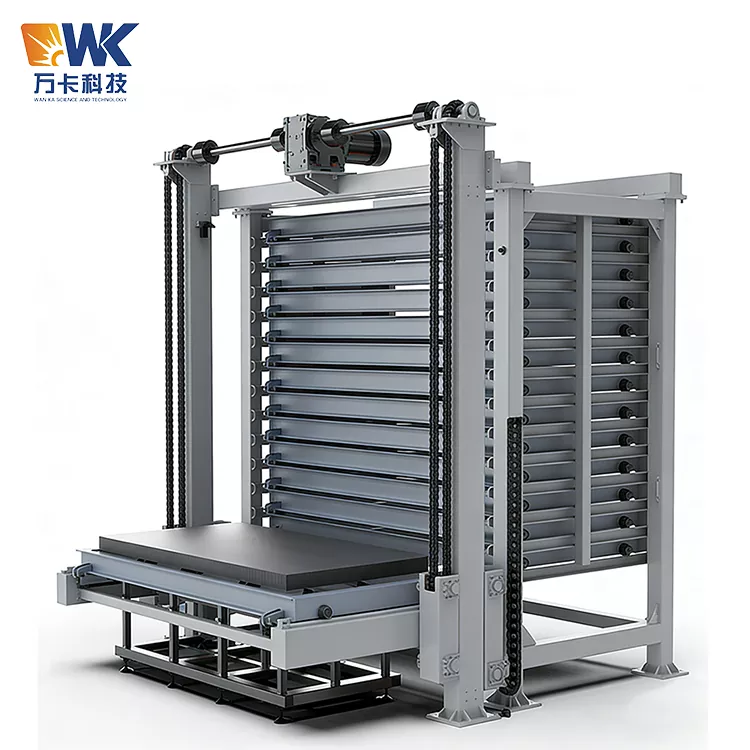

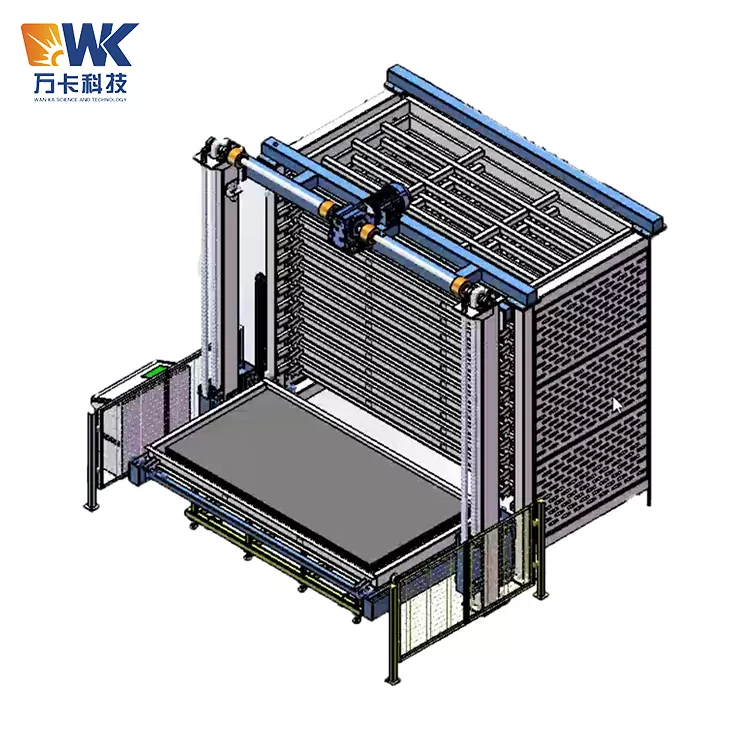

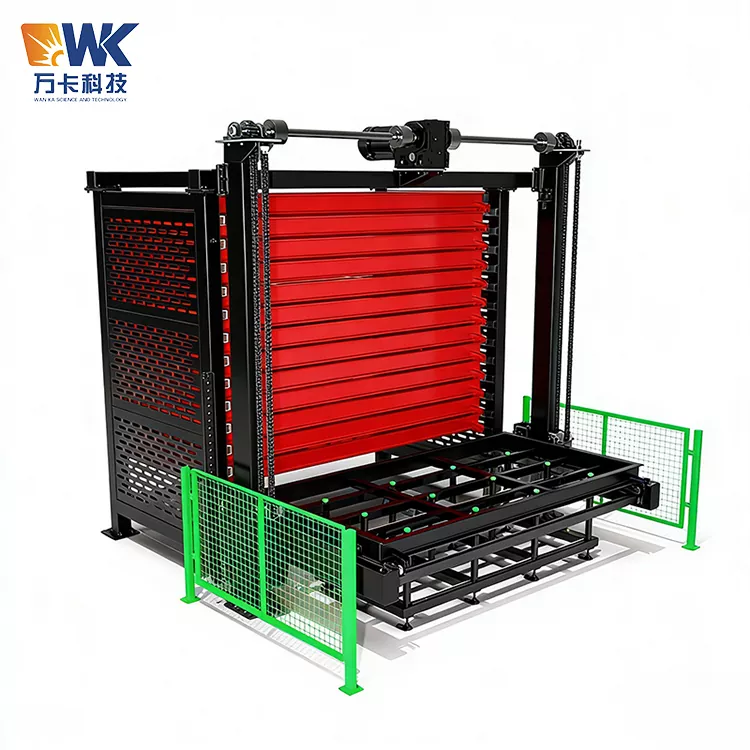

The 1560 Automatic Sheet Metal Storage produced by Wanka Factory features an integrated sealed vertical multi-level storage compartment and a servo lateral discharge structure. It utilizes a touch control intelligent system to automatically retrieve sheet materials, and can accommodate two types of loading solutions: vacuum suction cart and ordinary forklift. This setup enables the construction of an unmanned warehousing system - a laser cutting integrated production line.

Core implementation value:

Reform the traditional ground-level flat stacking and stacking mode, reducing the storage area by over 80%; independent storage positions are isolated for storage, eliminating the deformation and surface scratches of the materials, and significantly reducing the material scrap rate; the digital ledger automatically archives the inbound and outbound data, simplifying the manpower input for handling, and the overall equipment investment can generally recover the cost within 8-12 months; the design service life of the entire machine can reach over 15 years.

Original factory attributes

Wanka is an original production manufacturer without any middlemen involved in the price. From the entire process of structural welding, electronic control assembly, and full-load testing at the factory, it is independently controlled throughout. It supports customization for non-standard dimensions, load capacity, and enclosed dust-proof structures. It also provides corresponding export shipping packaging and bilingual technical materials.

Usage Notes

1. Installation requirements for the factory building

Ground bearing capacity: The floor bearing capacity of the placement area should be ≥ 4t/㎡, no need for a specially thick foundation to be poured; the equipment is equipped with adjustable load-bearing anchor bolts (adjustable range 0–100mm), which can be independently calibrated to ensure the level of the entire machine, and is suitable for slight ground height differences. The normal height range of the entire machine is 3–6m. Before entering the factory, the dimensions of the factory gate and the turning radius of the passage need to be rechecked. For narrow passages, a modular equipment disassembly and assembly plan can be selected for entry and assembly.

Power supply environment: Standard power supply of 380V industrial voltage. For humid and dusty processing workshops, additional dust-proof covers for the electrical control boxes need to be configured; in the scenario of dust-free mirror panel material processing, the equipment shall not be placed in the area where welding smoke is directly discharged.

2. Daily operation operation norms

When loading plates into the warehouse, they must be placed according to the rated single-layer load capacity. Heavy-duty models are equipped with an overload locking mechanism. In the overloaded state, the warehouse cannot start the discharge action. It is prohibited to forcibly pry the transmission structure.

During equipment operation, personnel are not allowed to stand directly in front of the discharge port. The equipment is equipped with an infrared human body sensing stop device, but the sensitivity of the sensing needs to be regularly calibrated; in the power outage state, only the original factory hand-crank emergency mechanism can be used to take materials, and it is not allowed to drag the position support frame with a forklift.

The enclosed protective cover needs to be cleaned regularly of the internal accumulated iron filings and dust. Monthly checks on the lubrication of the tracks and the tension of the chains are required. The basic maintenance is completed according to the system prompt reminder. The position should not be left idle with high-load and no-load operation for a long time.

3. Disassembly and maintenance prohibitions for accessories

The transmission chains, limit switches, and sensing probes all use standard industrial accessories of the country. When replacing, the disassembly and assembly are carried out according to the equipment number drawings. There is no need to disassemble the frame of the storage unit as a whole, which can reduce the downtime for maintenance. The original factory provides a lifelong supply channel for accessories. It is not recommended to use inferior substitute accessories.

The program of the electrical control system can only be remotely upgraded by our technicians. The workshop electricians are not allowed to rewrite the underlying control program privately to avoid problems such as deviation in position movement and failure of positioning.

4. Storage and transportation precautions for overseas export

The disassembled modules of the equipment are packed in fumigated solid wood boxes + vacuum moisture-proof packaging. After the shipment arrives by sea, the packaging should be unpacked and disassembled in a dry and ventilated environment first. The vacuum foam of the electrical control box should be checked immediately after opening the box; the packaging waste should be uniformly recycled and processed, which complies with the environmental protection and quarantine standards of multiple countries.

When the overseas factory is idle for a long time, the transmission metal parts should be coated with anti-rust oil, and the dust-proof sealing of the electrical control box should be sealed to avoid electrical component rusting caused by sea humidity and overseas rainy environment.

Product Core Advantages

Space-saving advantage: Utilize the existing area of the factory building

Material quality protection advantage: Reduce the cost of high-priced material waste

Full-process digital management advantage: Connect the digital system of the factory

Mechanical structure durability advantage: Adapt to long-term continuous production conditions

Flexible adaptation advantage: Cover all scenarios of non-standard customization

One-stop delivery and after-sales advantage: Reduce the overall operation and maintenance costs for customers

Green and low-carbon production advantage: Assist in the application for green qualifications of the factory

FAQ

Q: What is the maximum length and thickness of metal plates that the 1560 sheet storage rack can accommodate?

A: The standard model is compatible with various full plates within a width of 1560mm and a length of 3000mm. The storage thickness range of 0.5mm to 200mm can be adjusted to fit the position height, and for extremely long plates, a custom elongated support structure is available.

Q: Can this sheet storage rack be purchased separately for use with a forklift in a workshop without a crane?

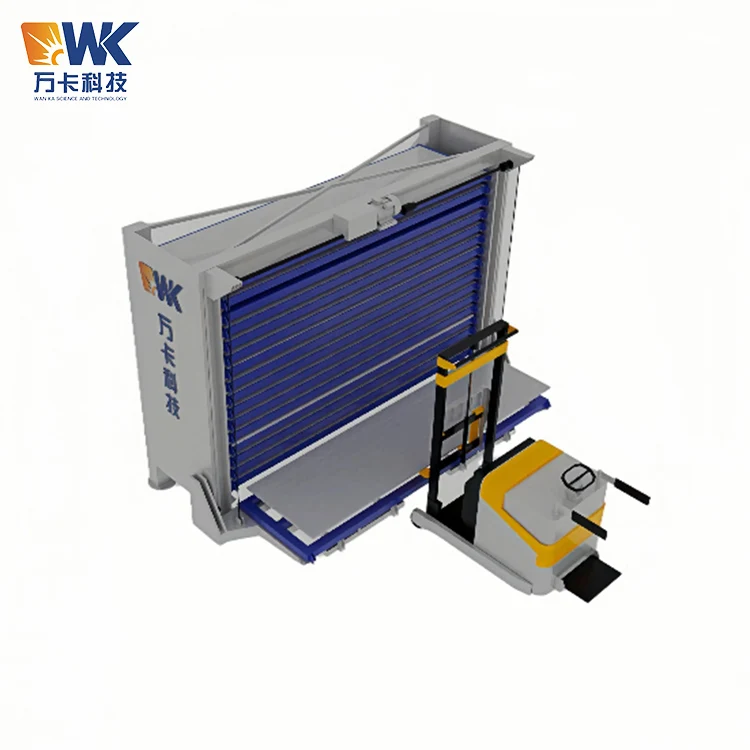

A: Absolutely, the factory is equipped with dedicated operation space and guiding structure for forklifts. The plates can be loaded and unloaded by using forklifts and simple lifting devices. If you need to upgrade to a fully automatic suction line in the future, we can install the corresponding linkage components later.

Q: If there is a sudden power outage in the factory, will the plates in the storage room slide down? Is there an emergency material extraction plan?

A: The equipment is equipped with an automatic locking structure in case of power failure. It will lock all positions to prevent the plates from sliding down. Each machine is equipped with two sets of manual emergency handles. The operators can manually withdraw the position and take out the plates without causing the laser machine to stop due to material shortage.

Q: Can the intelligent system be connected to the existing ERP management system of the factory to achieve automatic data synchronization?

A: The self-developed control system has a general data connection interface. When placing an order, inform the existing ERP model, and complete the program adaptation and debugging before leaving the factory. The data of plate entry and exit will be automatically synchronized to the enterprise management system, eliminating the need for manual secondary entry of the ledger.

Q: Are the chain and guide rail, which are easily worn out, difficult to purchase and replace? How is the original factory's after-sales service guaranteed?

A: All wear-resistant parts are selected from common industrial standard components available in the local mechanical and electrical market. Replacement can be done by purchasing from the market. The original factory also provides permanent spare parts. Non-human damage parts will be reissued free of charge within the warranty period. Online 24-hour technical guidance and maintenance are provided.

Q: For the equipment exported overseas, can corresponding certification documents and a complete set of foreign trade documents be provided?

A: The entire machine has CE and ISO9001-related testing qualifications and can issue corresponding certification reports. The export equipment comes with fumigation certificates, packing details, bilingual drawings and instructions. At the same time, we can assist the customer in completing the preparation of all the necessary documents for customs declaration.
