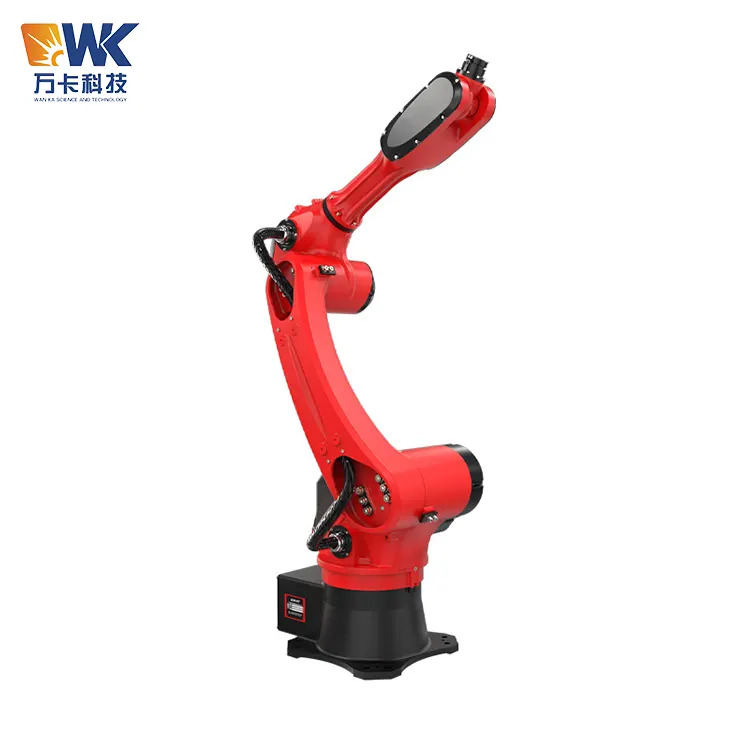

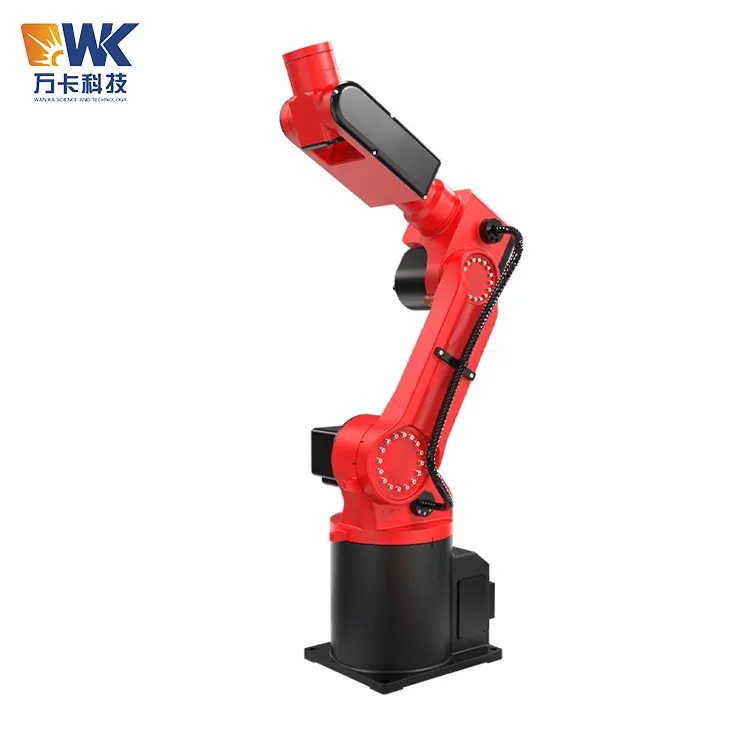

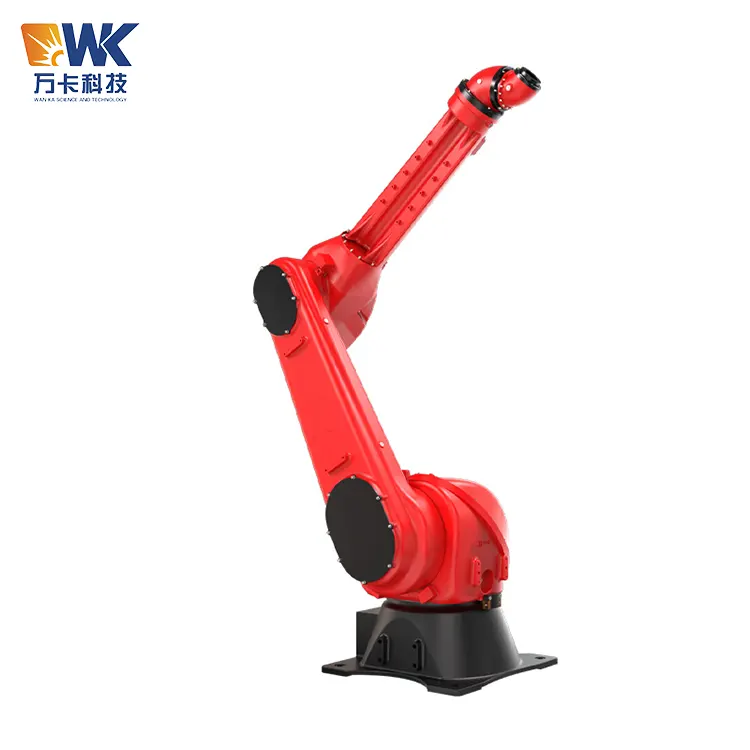

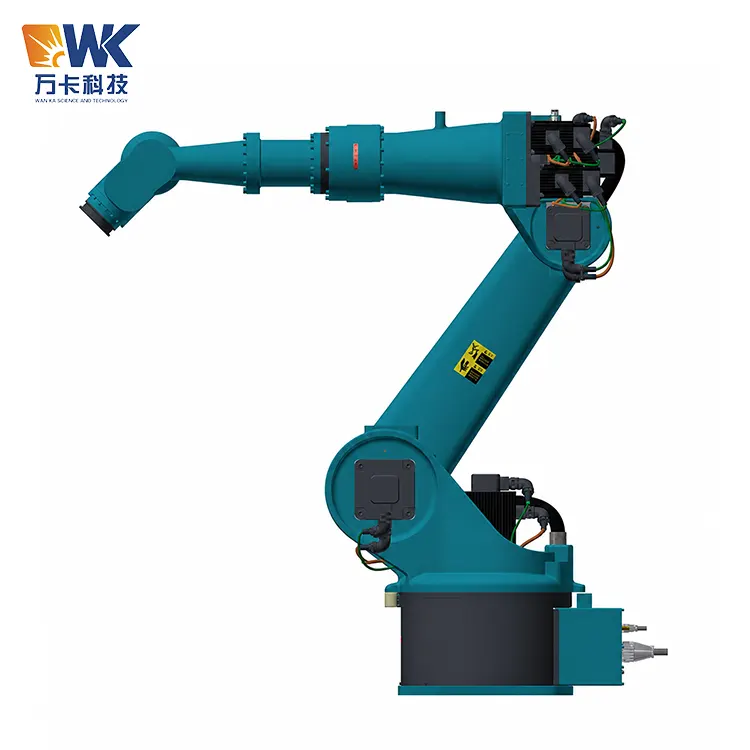

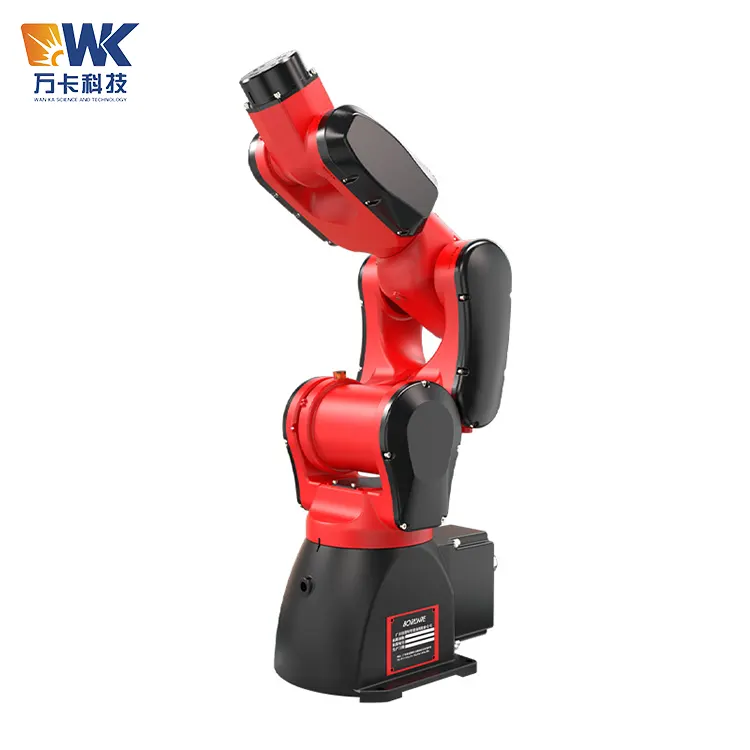

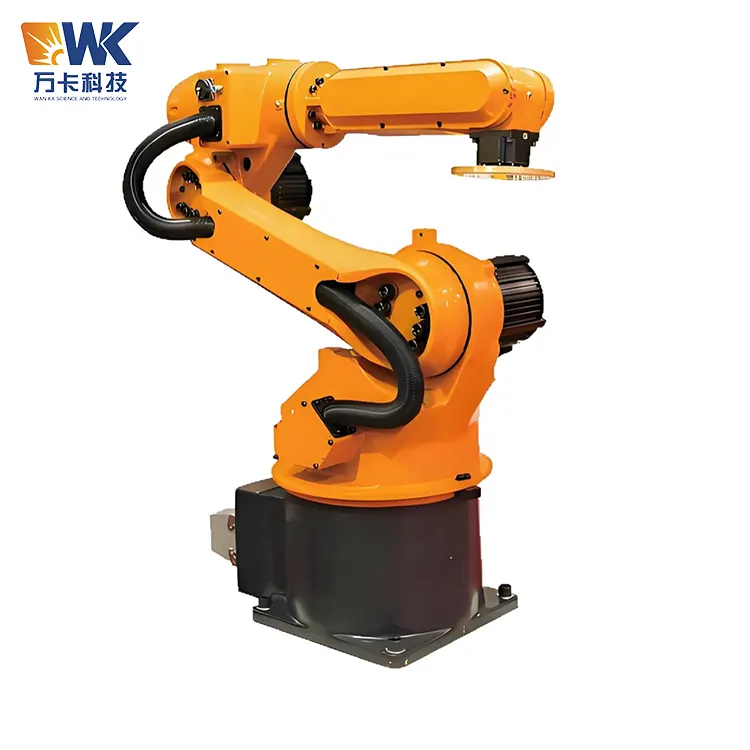

6 Axis Handling Robot

The 6-axis handling robot produced by Wanka's suppliers has a load capacity ranging from 3kg to 800kg, with a maximum working arm span of 2912mm. The repeatability positioning accuracy can reach±0.02 to 0.06mm. It supports various installation forms such as upright, inverted, and side-mounted, and is equipped with dragging teaching function, which reduces the programming and debugging threshold.

The entire machine is compatible with various vision systems, conveyor lines, and processing machines for linkage and connection. It can apply for CE certification as needed to meet export requirements. One device can replace 2-4 operators, helping manufacturing enterprises promote flexible and unmanned production.

Factory Advantages

We independently develop the core control system and mechanical structure, have an independent R&D team, and can adjust the robot's motion parameters according to the on-site conditions, breaking free from the limitations of fixed programs of general robots.

We have established a complete modular production line. All robots undergo long-term load aging tests, precision calibration, and continuous operation simulation tests before leaving the factory, following standardized quality inspection procedures, ensuring stable operation.

We have strong non-standard customization capabilities. We can optimize the body structure for special loads, narrow workshops, dust-proof, moisture-proof, and clean environments, and provide customized suction cups, pneumatic grippers, and other end workpieces.

We have mature experience in delivering foreign trade projects. We provide technical manuals in both Chinese and English, operation teaching videos, and engineers offer cross-time zone remote technical support for global customers, providing them with a one-stop automation solution.

Parameters

Why choose this product?

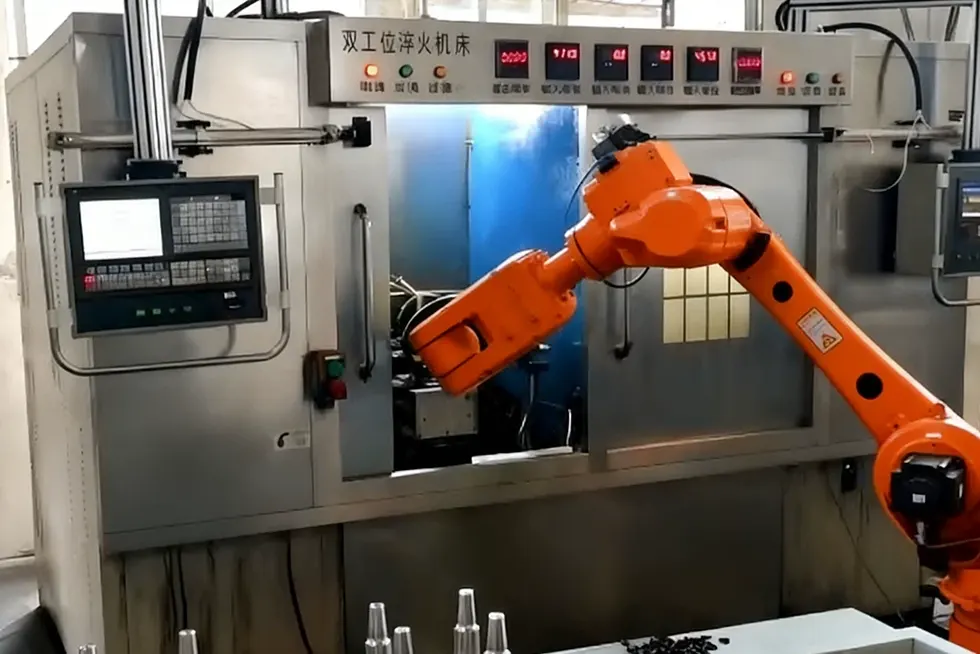

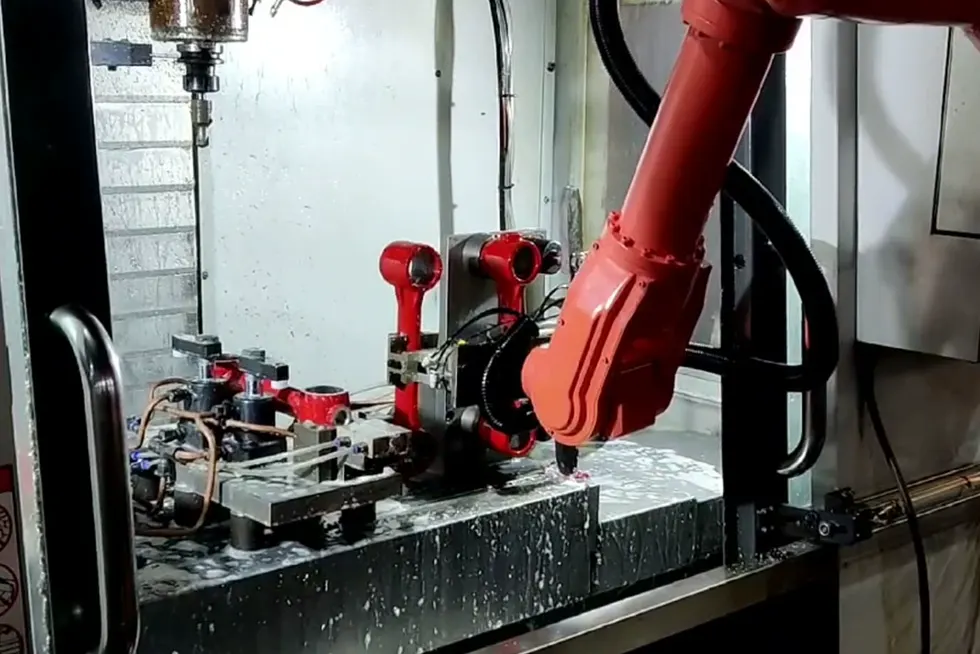

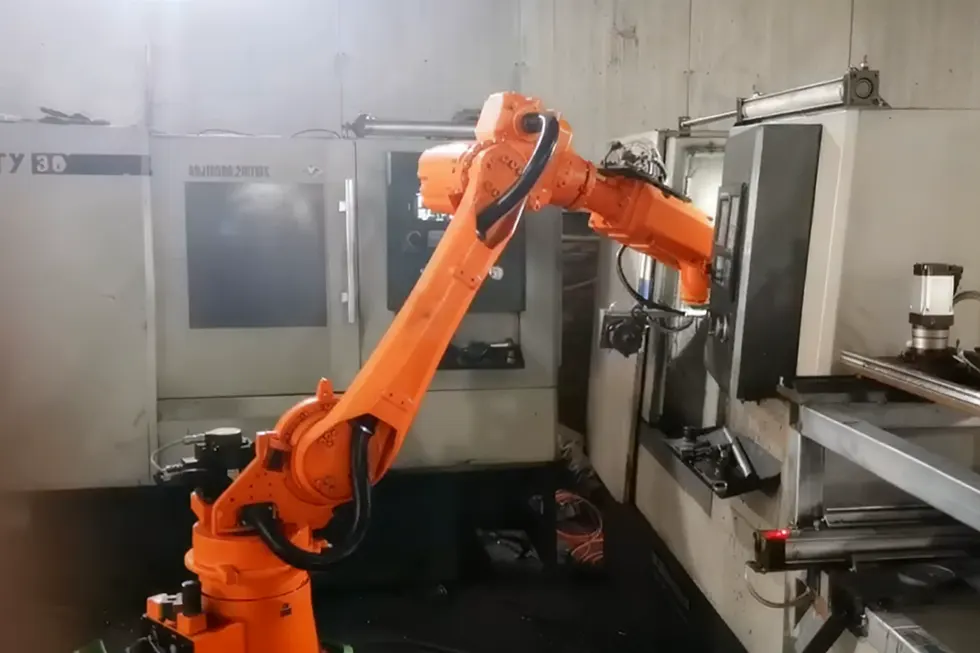

1. Our 6-axis Handling Robot has stronger motion flexibility and can autonomously adjust the angle of the workpiece. It can bypass obstacles such as fixtures and machine tool enclosures to complete loading and unloading tasks, making it suitable for multi-category mixed-line production.

2. It has a wide load range, with the light-load model suitable for electronic precision assembly, and the heavy-load model meeting the requirements for large-scale steel structures and automotive parts transportation. One model can be adapted to multiple production line renovations.

3. The operation threshold is low. The dragging teaching method combined with a graphical control interface enables ordinary operators to master program writing in a short time, and the time for line changeover and debugging is significantly reduced.

4. The high rigidity body is paired with precise transmission components, and the end of the machine has low vibration during high-speed operation. It is less likely to experience accuracy degradation during long-term continuous operation, and the maintenance cycle is longer.

5. Open communication protocols allow for easy connection with mainstream CNC machines, injection molding equipment, and visual inspection devices on the market. New and old production lines can be quickly transformed and compatible.

6. The modular joint structure allows for independent components that can be disassembled and replaced, making daily maintenance simple and reducing long-term operation costs.

7. It can be upgraded to different protection levels to adapt to various complex production environments such as dusty workshops, humid processing areas, and clean workshops.

FAQ

Q1: How should one choose between a 6-axis handling robot and a four-axis robot?

A1: For complex posture operations and those requiring obstacle avoidance, a 6-axis robot is preferred; for simple planar palletizing and alignment tasks, a four-axis robot can be selected.

Q2: Can the robot be installed on the top of a machine tool and used upside down?

A2: It supports upright, upside-down, and side-mounted installation. When placing an order, the installation method will be provided to match the solution.

Q3: Can the equipment work in conjunction with a vision system?

A3: Yes, it is supported. Communication interfaces are reserved, and it can directly connect to 2D and 3D vision positioning systems.

Q4: Can beginners independently complete programming and debugging?

A4: With drag-and-drop teaching function and training videos, short-term learning can enable hands-on operation.

Q5: Does the mechanical hand support export to the European Union and provide CE documentation?

A5: The model supports CE certification, and a complete set of compliance technical documents can be provided.

Q6: Do the end clamps and suction cups need to be customized separately?

A6: Various end-actuating tools can be customized based on the shape of the workpiece.

Q7: How long is the warranty period for the entire machine, and how are faults handled?

A7: The entire machine has a 12-month warranty, and engineers provide remote video fault diagnosis support.
