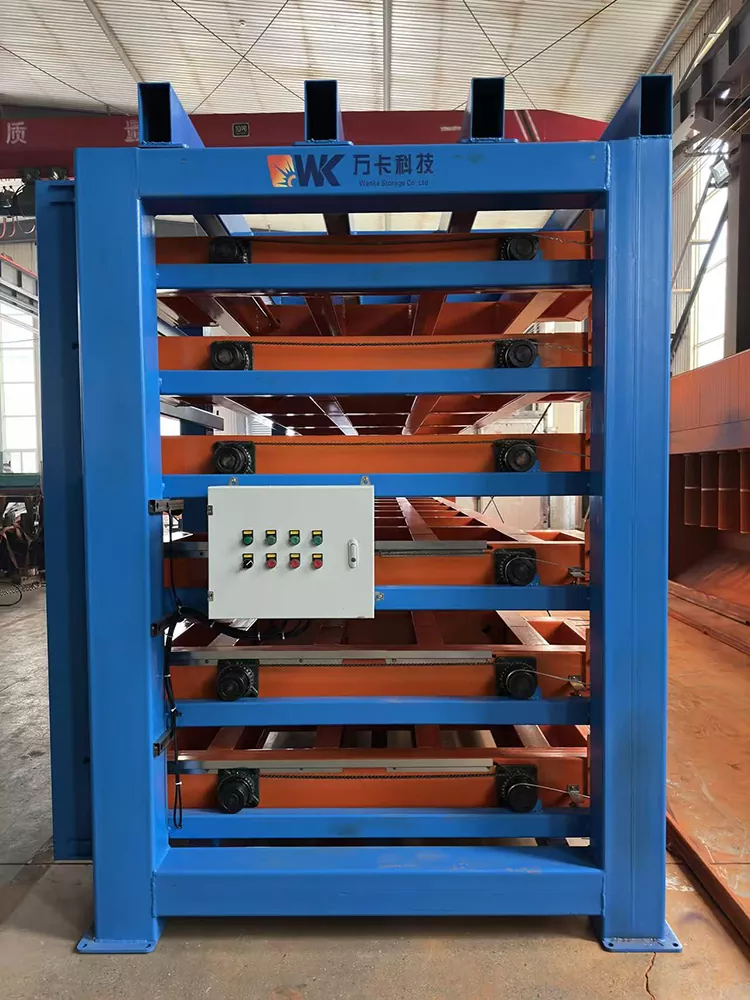

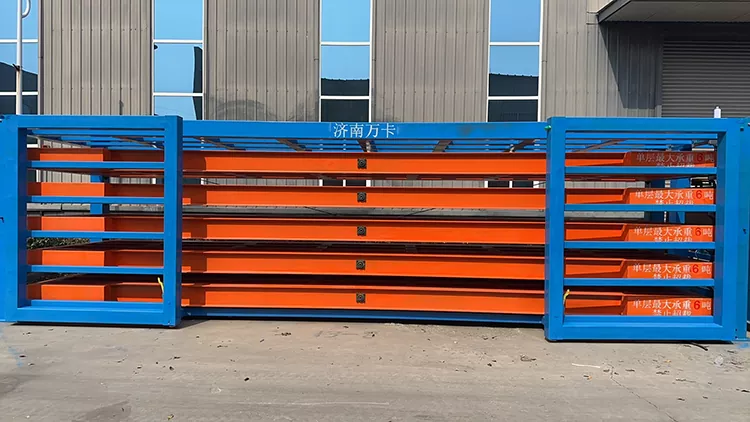

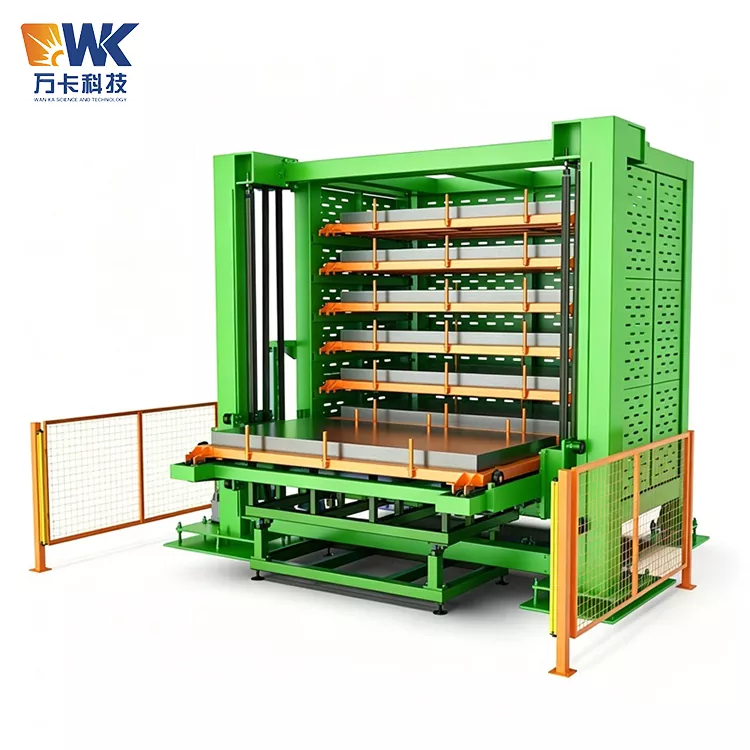

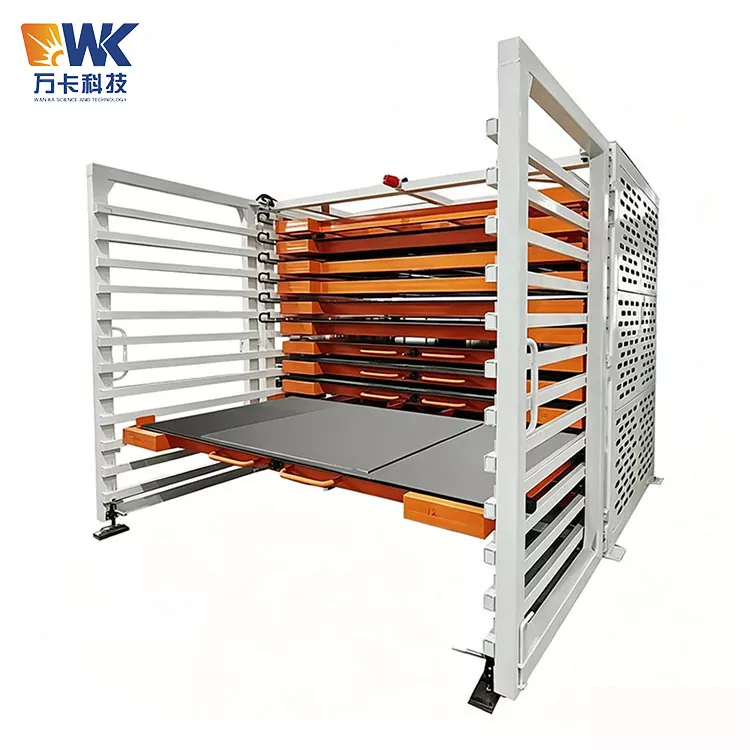

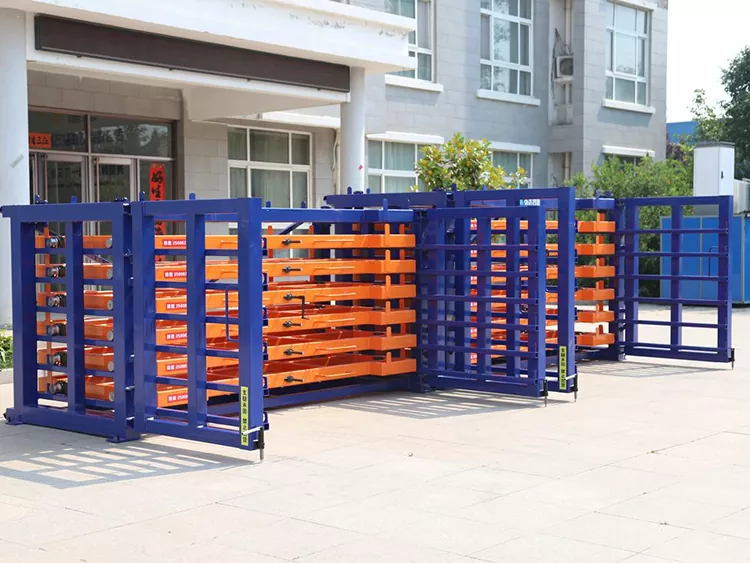

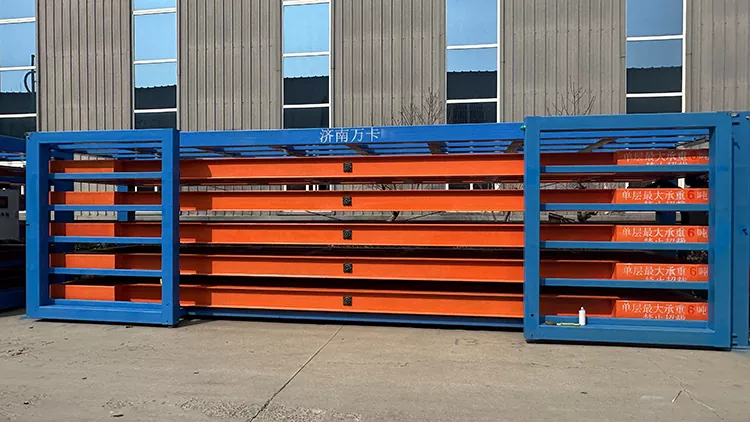

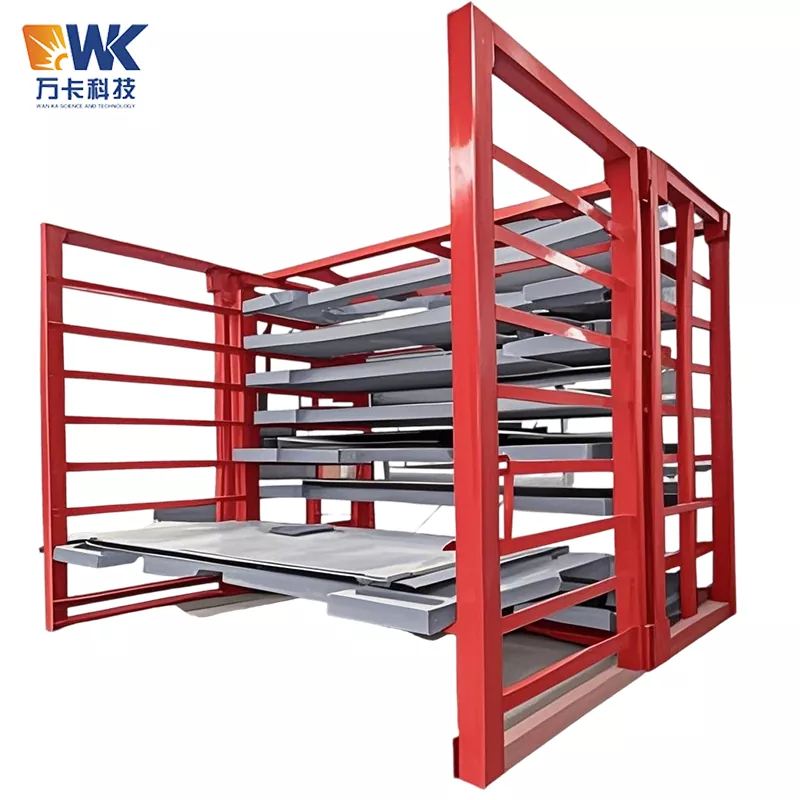

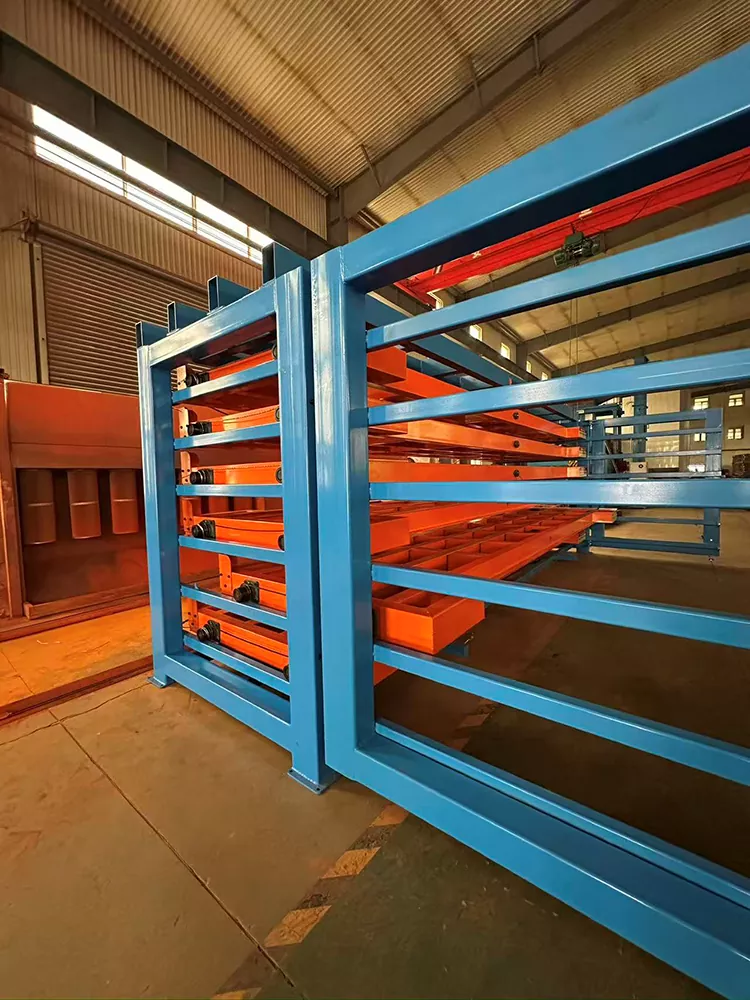

1560 Hand Cranked Sheet Metal Storage

Wanka's China 1560 Hand Cranked Sheet Metal Storage addresses the industry pain points of traditional long-board floor storage, which involves large space occupation, deformation and scratches of the sheets, difficult access, and high labor costs. It supports size adjustment, customizable layers, and structural upgrades. The equipment has strong load-bearing capacity, low failure rate, and simple maintenance. It is suitable for the standardization of warehouse renovations in large and medium-sized industrial workshops, helping enterprises optimize their space resources, reduce operating costs, and enhance the standardization level of sheet storage management.

Industry Solutions

In the heavy plate processing industry, ultra-long plates over three meters, four meters, or even six meters in length have always been a challenge for warehouse storage management. Standard shelves with limited dimensions cannot accommodate long plates, and stacking them on the ground occupies a large area of the workshop. The traditional storage model is no longer suitable for modern factories due to their production rhythms. The 1560 Hand Cranked Sheet Metal Storage is specifically designed to address the pain points of the ultra-long plate industry, providing a complete set of lightweight, low-cost, and high-efficiency storage solutions that are adaptable to various industrial conditions and can be implemented in practice.

Laser Cutting Industry Solution. In large laser cutting factories, there are common problems with long plate specifications, multiple thicknesses, and diverse materials. Stacking long plates on the ground not only occupies a large production area but also causes longer loading distances for equipment and chaotic transportation paths. When stacking multiple layers of long plates, the lower layer is prone to bending and deformation due to pressure, and high-value stainless steel plates and mirror panels are highly susceptible to scratches and losses. Using the 1560-style hand-cranked sheet metal storage can achieve independent storage of ultra-long plates in layers, with each specification and material of plates being classified separately. There is no need for stacking and squeezing, and the plate surface is more intact. The hand-cranked pull-out structure does not require forklift cooperation, and a single person in the workshop can complete the retrieval and placement of long plates, meeting the rapid loading requirements of laser equipment, significantly improving the cutting production efficiency, and making the material circulation in the workshop more orderly.

Stainless Steel Plate Trading Industry Solution. For plate trading enterprises, the inventory of plates is large, the length specifications are diverse, and the frequency of entry and exit is high. Stacking ultra-long plates chaotically can easily lead to inventory chaos, difficult inventory checks, and shipping errors. This plate storage specifically adapts to the storage of plates within six meters and can be used in multiple industries. The three-dimensional layered design greatly reduces the storage area, making the warehouse inventory clear at a glance, convenient for staff to conduct daily inventory, sorting, and shipping. The pure manual structure has no power consumption and can be placed at any position in the warehouse, adapting to the high-frequency turnover and multiple batch entries and exits of the trading warehouse operation mode, effectively improving the standardization level of storage.

Sheet Metal Processing and Machinery Industry Solution. In heavy industry enterprises, the lengths of commonly used elongated steel plates, wear-resistant plates, and mold plates are long and heavy, making manual handling difficult. Traditional storage relies on forklift hoisting, with a cumbersome operation process and potential safety hazards. This product adopts a heavy-duty reinforced structure to stably support ultra-long heavy plates. The drawer-pull-out design allows the plates to be horizontally removed without the need for high-altitude hoisting, avoiding the risks of high-altitude work. The overall structure of the equipment is stable and has strong impact resistance, adapting to the high-intensity and high-load working environment of heavy industry workshops, helping the workshop achieve safe and standardized storage management.

Decorative Plates and Aluminum Plate Processing Industry Solution. Decorative aluminum plates, color-coated plates, and curtain wall plates have extremely high requirements for plate surface appearance. Traditional stacking methods are prone to causing scratches, dents, and deformation, resulting in a high rate of product scrap. The 1560-style hand-cranked sheet metal storage's layered independent storage mode can fundamentally avoid plate friction and squeezing, effectively protecting the appearance quality of the plates. The equipment size is suitable for ultra-long decorative plates and can meet the needs of whole plate storage, without the need for cutting and segmenting, reducing material waste, and is suitable for high-end decorative plate processing enterprises.

Renovation of Old Factories Solution. Many traditional processing workshops have outdated circuit layouts, narrow spaces, and narrow passages, making it impossible to install large electric sheet metal storage and automated storage equipment, limiting the upgrade of storage. This sheet metal storage does not require electricity connection, complex installation, and has a small. It is suitable for the renovation of old workshops，does not require circuit modification or site rectification，and can be placed and assembled for immediate use，completing the upgrade of old warehouses at a low cost，adapting to various restricted workshop conditions.

Product Lifecycle and Maintenance Guide

1560 Hand Cranked Sheet Metal Storage is manufactured using thickened national standard steel and industrial-grade transmission components. The overall structure is sturdy and durable. Unlike ordinary lightweight sheet metal shelves, the complete product can last for fifteen to eighteen years. It is one of the categories with a longer lifecycle among industrial storage equipment. Based on the characteristics of the equipment, the product lifecycle can be divided into three stages: the break-in period, the stable operation period, and the aging maintenance period. Targeted maintenance in different stages can maximize the extension of the equipment's service life and ensure operational stability.

The break-in period lasts from one to twelve months. After the installation of a new device, the transmission gears, chains, slide rails, and drawer structures are in the matching stage, and the mechanical components' bite degree gradually stabilizes. During this period, it is necessary to avoid sudden heavy loads, unilateral uneven loading, and violent shaking. It is recommended to store materials within 90% of the rated load to allow the equipment structure to naturally adapt. During the break-in period, a simple inspection should be conducted once a week to check if the hand-cranked transmission is smooth, if the bolts are tightened, and if the drawers are level. Minor issues should be adjusted promptly to avoid small problems accumulating into equipment failures, laying the foundation for long-term stable use.

The stable operation period lasts from one to twelve years. This is the core usage period of the 1560 hand-cranked sheet metal storage. The equipment structure, transmission system, and load-bearing performance are all at their best state, capable of meeting the factory's frequent and regular storage and retrieval operations. During this period, the equipment failure rate is extremely low, with almost no maintenance needs. Daily maintenance only requires basic upkeep, keeping the equipment surface clean and tidy, avoiding the long-term accumulation of heavy dust, oil, and corrosion on the coating and components. Monthly inspections should be conducted to check the tightness of the hand-cranked transmission, the smoothness of the slide rails, and the stability of the drawer positioning. The overall connecting bolts should be tightened once every quarter to ensure the equipment structure is firm and stable.

The aging maintenance period lasts for more than twelve years. After long-term heavy-load operation, the slide rails, gears, and rotating wheels of the moving parts will undergo normal minor wear, and the surface spray coating may show local aging and fading. During this period, there is no need to replace the entire equipment. Only targeted replacement of components and coating repair are required. Replace the worn-out transmission parts promptly, apply anti-corrosion coatings on rusted and peeling areas, and the equipment can continue to be used for several years, significantly reducing the equipment replacement cost. The general daily maintenance guide is simple and easy to operate, suitable for enterprises to maintain independently. Maintain the hand-cranked operation at a uniform and gentle speed, and prohibit rapid and violent shaking or pulling. Protect the transmission gear structure. Keep the warehouse ventilated and dry, avoid long-term water accumulation, high salt fog, and strong corrosive environments that erode the equipment. Do not stack long sheets with excessive load or uneven loading, ensuring uniform force on each layer of materials. Apply a small amount of lubricating oil to the gears, chains, and slide rails monthly to prevent dryness and jamming. Do not privately strike, pry, or cut the equipment structure. Contact the manufacturer for immediate repair in case of equipment failure to avoid working with faults. Under standardized maintenance, the 1560 hand-cranked sheet metal storage can maintain stable performance for a long time, significantly reducing the cost of equipment replacement.

FAQ

1. Can the 1560 Hand Cranked Sheet Metal Storage store up to six meters of sheet metal?

OK. This equipment is specially designed for extremely long sheets. The standard model is compatible with all regular sheets within six meters in length, including three meters, four meters, five meters, and six meters long sheets. Large sheets with a width of one meter and a half or less can be fully stored without the need for cutting the sheets. It is suitable for all kinds of ultra-long sheet processing enterprises.

2. Will the hand-cranked pulling of a six-meter-long sheet cause the center of gravity to be unstable and make it prone to tilting?

 No. The equipment adopts a long and wide load-bearing base, with a reinforced balance structure at the bottom. The drawers are designed with dual-track synchronous transmission, ensuring uniform and balanced force distribution. The structure has been specifically optimized to address the instability of the long board's center of gravity, and it ensures that the boards are placed centrally without any tilting, shaking, or deviation.

3. Can it be assembled by oneself without any electrical knowledge or complex installation experience?

Absolutely. The 1560 Hand Cranked Sheet Metal Storage features a fully modular assembly structure with standard holes and universal accessories. There is no need for circuit installation or specialized skills. Two people can complete the assembly according to the drawings, and the manufacturer provides complete installation videos and graphic tutorials. There is no installation difficulty throughout the process.

4. How much weight can a single layer of the equipment bear? Can it hold heavy and thick plates?

The standard model can bear up to two tons, and the heavy-load version can be customized for a three-ton load capacity. The entire frame and drawers are fully reinforced with strengthening ribs, specifically designed to handle the heavy pressure of extremely long and heavy plates. Even when fully loaded, the drawers will not sag or deform.

5. Will the gears be prone to damage or get stuck when used frequently by hand?

The transmission gears of the equipment are made of thickened quenched steel, with high hardness and strong wear resistance. After tens of thousands of reciprocating tests, they have excellent fatigue resistance. Under normal maintenance conditions, they can run smoothly for years without any jamming, damage, or tooth loss.

6. Will the equipment's lifespan be affected when used in a dusty and humid environment in the workshop?

The equipment surface is treated with industrial electrostatic spray coating for anti-corrosion, dust-proof, and rust-proof. It is suitable for regular humid and dusty workshop environments. Simple daily cleaning and maintenance can ensure stable use. For harsh conditions, customized anti-corrosion and dust-proof configurations can be provided.

7. Does the equipment occupy a large area on the ground? Is it suitable for small workshops?

Compared to flat stacking on the ground, the 1560 hand-cranked sheet metal storage has a three-dimensional layered design that significantly saves floor space. Long plates are stored vertically in layers, with a compact floor size. It can be adapted to both large and small workshops, making it an ideal equipment for saving space in long plate storage.

Cost Saving Calculator

The core purpose of enterprises in purchasing and storing warehouse equipment is to reduce costs and increase efficiency. The 1560 manual-operated sheet storage unit can directly and intuitively reduce expenses for enterprises in five aspects: site rent, labor costs, material loss, equipment maintenance, and production capacity improvement. The following is a reference for the actual cost calculation in the factory, which is convenient for enterprises to clearly calculate the return on investment.

Site rent cost saving. When stacking long sheets on the ground, one hundred sheets require more than one hundred square meters of space. After using the 1560 manual-operated sheet storage unit, only fifteen to twenty square meters are needed for storage, and it can save more than eighty square meters of space each time. Based on the average rent of industrial buildings, it can save tens of thousands of yuan in rent each year. The larger the site and the greater the inventory, the higher the annual rent savings.

Manual handling cost saving. Traditional long sheet extraction requires two to three people to cooperate in stacking, lifting, and aligning. Each extraction takes several minutes, and the labor time is large. After using the 1560 manual-operated sheet storage unit, a single person can easily pull and extract the material by hand, and the single-extraction time is shortened by eighty percent. Each day, a large amount of labor time can be saved, and calculated on a monthly basis, a significant amount of labor expenses can be reduced, significantly lowering the labor cost in the workshop.

Material scrap cost saving. When stacking extremely long sheets, the lower layers of sheets are under long-term pressure and deformation, and the surface is scratched. The scrap rate of high-value sheets can reach five to ten percent. With the 1560 manual-operated sheet storage unit that stores sheets separately by layers, there is no compression or friction, and the scrap loss is almost zero. For enterprises that process high-end sheets for a long time, it can save a large amount of material loss costs each year.

Equipment maintenance cost saving. Electric long sheet storage units have high purchase prices, and the motors and electrical controls are prone to damage, with expensive maintenance costs. Regular maintenance and repair are required every year. The 1560 manual-operated sheet storage unit has a purely mechanical structure, without motors, circuits, or easily damaged electronic components, and has almost zero maintenance costs. It can save thousands to tens of thousands of yuan in equipment maintenance and repair expenses each year.

Hidden benefits of production capacity improvement. After the efficiency of sheet extraction is improved, the speed of material feeding in the workshop is faster, the standby time of equipment is shortened, and the production capacity of laser cutting and sheet metal processing steadily improves, the order delivery efficiency is higher, the enterprise's order acceptance ability is stronger, bringing hidden economic benefits, and the long-term use has a very considerable comprehensive return.

Customer Trust and Brand Endorsement

Our factory has been dedicated to the research and production of hand-operated ultra-long sheet storage equipment for over a decade, focusing on solving the problems of ultra-long sheet storage. We have an independent standardized production workshop, a complete set of automated processing equipment, a professional structural design team, and a comprehensive after-sales system. We possess the complete capabilities for large-scale mass production, customized modification, and export. Our brand strength is solid, and our industry reputation is stable.

The factory has strong production capabilities. The factory site is equipped with laser cutting equipment, CNC bending equipment, fully automatic welding assembly lines, electrostatic spraying lines, and precision transmission debugging equipment. We independently control the entire process from raw material cutting to finished product assembly. We do not outsource or use OEM. The quality control standards are unified, the production capacity is stable and sufficient. We can undertake large-scale batch purchases from domestic factories, project support for industrial parks, and export container orders. Each equipment is tested for load-bearing capacity, pull durability, and structural safety before leaving the factory. No substandard products are allowed to be released.

We have a rich portfolio of brand project implementation cases. The 1560 hand-operated sheet storage system has been exported to multiple countries including Vietnam, Thailand, Malaysia, Indonesia, Saudi Arabia, and South Africa for many years. It meets the storage needs of large-scale sheet metal factories and sheet processing enterprises overseas. With stable quality, simple operation, and an extremely low failure rate, it has won long-term repeat purchases from overseas customers. Our domestic cooperative customers cover industrial provinces such as Guangdong, Jiangsu, Zhejiang, Shandong, and Hebei. We serve thousands of laser cutting, stainless steel processing, and steel structure engineering enterprises. Many large factories have long-term batch purchases for workshop standardization upgrades.

The feedback from real customers is positive. Many large sheet processing enterprises have reported that the 1560 hand-operated sheet storage system is currently the most cost-effective equipment for storing six-meter-long sheets. It has a stable structure, is easy to operate, has almost no faults, and completely solves the industry problems of difficult storage, management, and easy wear and tear of ultra-long sheets. The equipment has no deformation, no jamming, and no rust after many years of use. The warehouse efficiency has significantly improved, and the overall workshop management has become more standardized.

At the same time, the factory has a professional pre-sales and after-sales team. They can free-lance for customer site surveys, layout planning, design of suitable solutions, provide full technical support, assist customers in factory inspection, project bidding, and information connection. The complete service system and stable product quality are the core reasons for the long-term cooperation of many enterprises.

Product Upgrades and Renovation Services

1560 Hand-operated Sheet Storage Rack has extremely strong scalability. Unlike ordinary one-time formed shelves, it supports customized upgrades for new machines and expansion services for old machines. It meets the long-term needs of enterprises for capacity expansion, update of sheet specifications, and upgrade of storage standards, avoiding enterprises from making repeated purchases and investments, and significantly reducing equipment update costs.

Customized Upgrade Service for New Machines. Standard models can undergo comprehensive functional upgrades according to customer needs. For overweight sheets, the load-bearing structure can be upgraded to be thicker, the reinforcing ribs can be densified, and high-strength transmission gears can be upgraded; for high-precision sheet storage, anti-slip pads, buffer limit devices, and dust protection accessories can be added; for humid and salt-spray environments, heat-dip coating anti-corrosion processes can be upgraded; for high-frequency operation scenarios, the chain can be thickened, and the wear-resistant double-slip rail structure can be upgraded, and the equipment performance can be strengthened as needed to meet individual working conditions requirements.

Expansion Service for Old Equipment. The original old 1560 hand-operated sheet storage racks can support later renovation and upgrading, including increasing the number of floors, widening and lengthening the drawers, reinforcing the load-bearing structure, replacing the transmission components, upgrading the hand-operated system, etc. The original frame does not need to be replaced as a whole; only targeted upgrades of accessories can restore the new performance of the old equipment, adapt to new sheet storage requirements, and significantly reduce the high cost of re-purchasing equipment.

Structural Optimization and Renovation Service. For problems such as narrow on-site passages, restricted space, and special placement requirements, the overall structure of the equipment can be adjusted and renovated to optimize the equipment height, depth, hand-operated position, and drawer travel, meeting the requirements of irregular site placement. At the same time, workstation adaptation renovation is supported. According to the position of the workshop assembly line, the equipment placement angle and pull direction can be customized to fit the production line of the workshop, improving the smoothness of operation.

Function Expansion and Renovation Service. According to the enterprise's intelligent upgrade needs, later electric modification interfaces can be reserved. For hand-operated models, the later upgrade of electric assistance system, limit warning system, and intelligent inventory supporting structure can be carried out, allowing the ordinary manual sheet storage rack to have upgrade space, adapting to the future intelligent storage development needs of the enterprise, and further improving the service life and value of the equipment.

Answers to Common Questions about High-Search Procurement Requirements

1. What is the core difference between the 1560 Hand Cranked Sheet Metal Storage and the ordinary sheet metal shelving?

The size of the ordinary shelving is limited, unable to store ultra-long six-meter sheets, and it has weak load-bearing capacity and is prone to deformation. It is only suitable for storing small items. The 1560 Hand Cranked Sheet Metal Storage is specially designed for ultra-long and wide heavy sheets. The extended drawer structure is compatible with six-meter-long sheets, the heavy-load structure is stable and does not deform, and there is no need to stack when pulling materials by hand. It specifically addresses the pain points of long-sheet storage and is a dedicated storage equipment for large sheet processing enterprises. Its adaptability and practicality far exceed that of ordinary shelving.

2. Is it worth purchasing this equipment for a factory with a limited budget?

Absolutely. Compared to the expensive electric ultra-long sheet metal storage, the 1560 Hand Cranked Sheet Metal Storage has a lower procurement cost, no energy consumption, zero maintenance, and an extremely low failure rate. The one-time investment can be used for long-term use. It can save a significant amount of site rent, labor, and material loss costs annually. It can be recouped in a short period of time and is the most cost-effective upgrade solution for long-sheet storage in small, medium, and large-sized factories.

3. Will there be situations where the drawers cannot be pulled or get stuck when storing ultra-long sheets?

No. The equipment adopts a dual synchronous hand-cranked transmission system. The gear ratio has been optimized through mechanics, resulting in low transmission resistance and uniform force distribution. Even when fully loaded with heavy long boards, a single person can still easily crank and pull, running smoothly without any stalling. The equipment has undergone full-load testing at the factory, eliminating problems such as jamming and difficulty in pushing and pulling.

4. Does the equipment support customization for different heights and layers?

It fully supports customization. Based on the height of the factory and the total inventory quantity, the overall height of the equipment, the number of drawers, and the height of each layer can be customized. It can be used for multi-layer dense storage, maximizing the utilization of the vertical space in the workshop. An optimal storage solution tailored to customer needs can be created.

5. Is the equipment shipped as a complete set or in separate parts? Will the transportation cause damage?

The equipment is packaged in modular separate parts. It is protected by professional wrapping film, corner guards, and multi-layer paper boxes. The transportation is protected from bumps and deformation, suitable for logistics and maritime transportation. The damage rate is extremely low. Safe delivery can be achieved both domestically and internationally. After arrival, simple assembly is sufficient for use.

6. If accessories of the equipment are damaged during long-term use, are replacement accessories available?

All accessories are standardized and universal. The manufacturer has a long-term reserve of accessory inventory. Gears, chains, slide rails, crank wheels, etc. can be replaced individually without the need for an overall equipment replacement. The after-sales maintenance is simple and convenient, and there is no worry about future issues.
